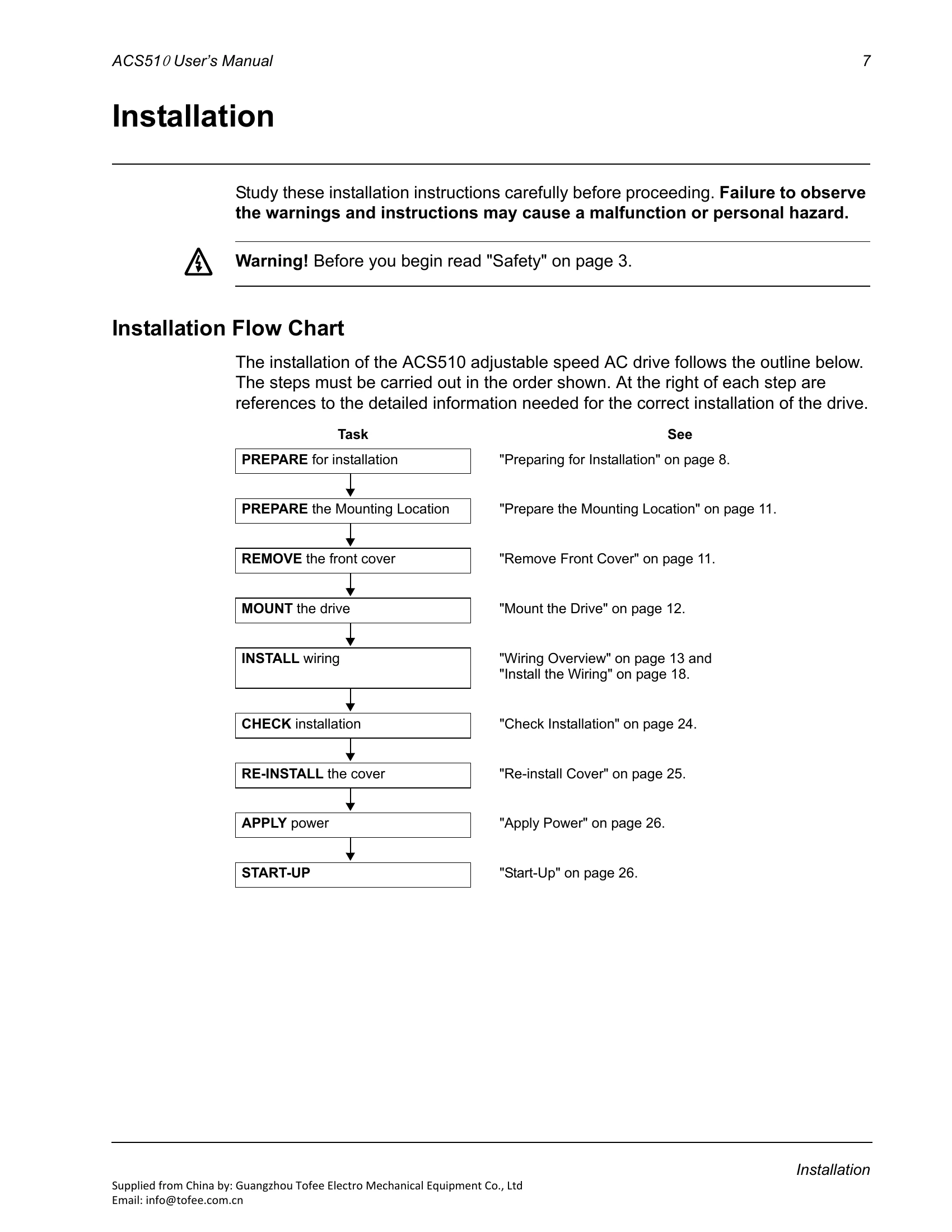

Manual for ACS510
Uploaded: Nov. 21, 2025, 6:07 p.m.
Manual Publish Date: 2009-04-01
The ACS510 is an adjustable speed AC drive that provides precise motor control and protection. It can be controlled via a control panel (Assistant or Basic) or through fieldbus communication. The drive offers various application macros for different control strategies, and its parameters can be configured to optimize performance. Key functions include start/stop control, speed and direction adjustment, fault and alarm management, and communication capabilities via embedded fieldbus or fieldbus adapter modules.
Troubleshooting and error codes
| Fault Code | Fault Name In Panel | Description and Recommended Corrective Action |
|---|---|---|
| 1 | OVERCURRENT | Output current is excessive. Check for and correct: • Excessive motor load. • Insufficient acceleration time (parameters 2202 ACCELER TIME 1 and 2205 ACCELER TIME 2). • Faulty motor, motor cables or connections. |
| 2 | DC OVERVOLT | Intermediate circuit DC voltage is excessive. Check for and correct: • Static or transient overvoltages in the input power supply. • Insufficient deceleration time (parameters 2203 DECELER TIME 1 and 2206 DECELER TIME 2). • Undersized brake chopper (if present). • Verify that overvoltage controller is ON (using parameter 2005). |
| 3 | DEV OVERTEMP | Drive heatsink is overheated. Temperature is at or above limit. R1…R4 : 115 °C (239 °F) R5/R6: 125 °C (257 °F) Check for and correct: • Fan failure. • Obstructions in the air flow. • Dirt or dust coating on the heat sink. • Excessive ambient temperature. • Excessive motor load. |
