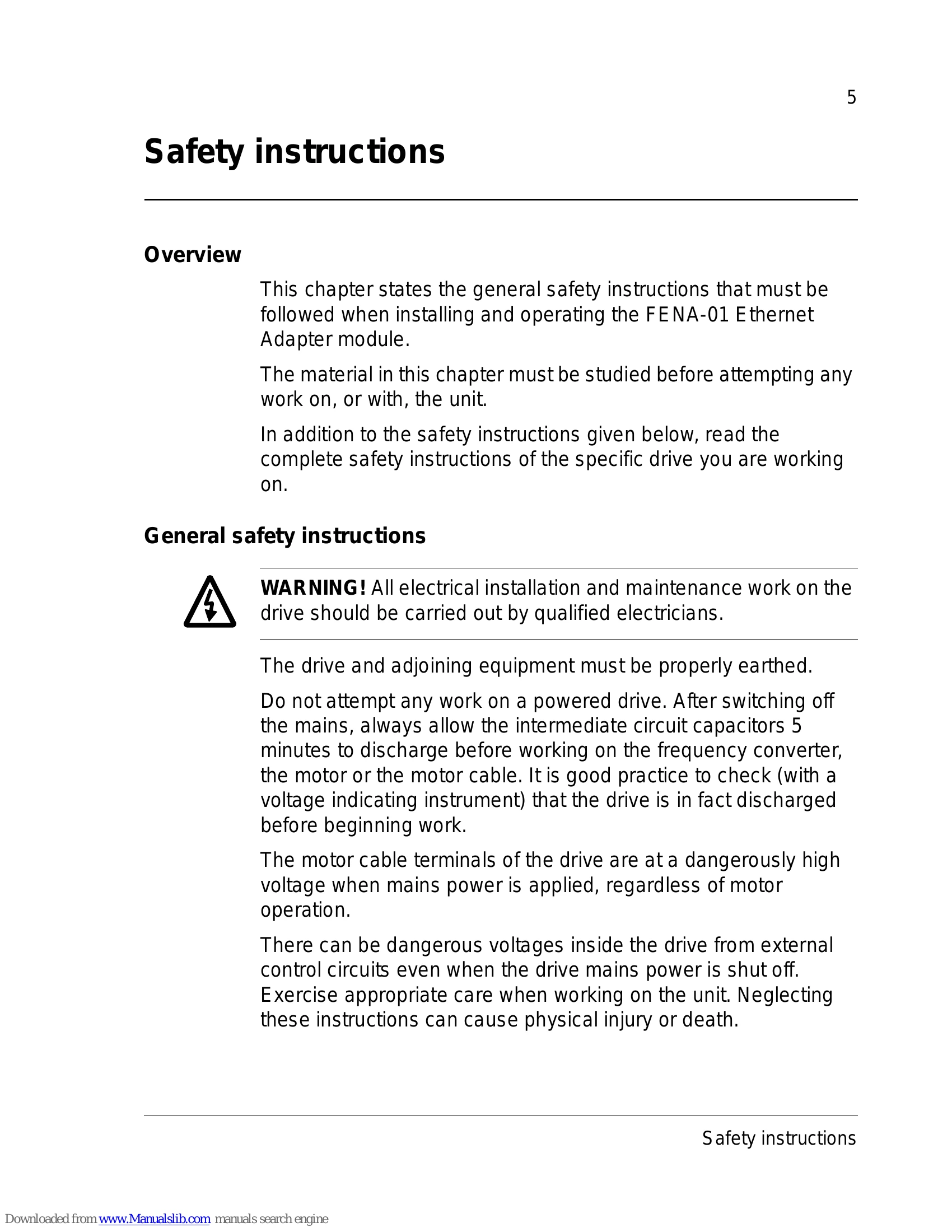

The FENA-01 Ethernet Adapter module supports the Modbus/TCP network protocol. It enables connection of an ABB drive to an Ethernet network and supports higher-level communication protocols including Modbus/TCP. The module acts as a Modbus/TCP server, allowing for control commands, speed/torque references, status information, and parameter changes. Configuration involves setting up Ethernet connection parameters and drive/client configurations. Communication profiles define data meaning, with options like ABB Drives Profile (Classic/Enhanced) and Transparent profiles for data transfer. Diagnostics are provided via LEDs, and troubleshooting involves checking LED indications and communication settings.

Troubleshooting and error codes

Name	Color	Function/State
HOST	Blinking green	Establishing communication to host.
HOST	Green	Connection to host OK.
HOST	Blinking red	Communication to host lost temporarily.
MODULE	Off	There is no power applied to the device.
MODULE	Flashing Yellow	Device is attempting to obtain IP configuration from DHCP Server.
MODULE	Yellow	Device is executing Duplicate Address Detection.
MODULE	Flashing Green	Device is waiting for a Modbus request.
MODULE	Green	Device has received a Modbus request within the Modbus/TCP Timeout period.
MODULE	Flashing Red	Ethernet link is down.
MODULE	Red	Ethernet interface is disabled. Duplicate Address Detection may have detected a duplicate address. Check IP configuration and either initiate a Fieldbus Adapter Parameter refresh or cycle power to the drive.
NETWORK	Off	Ethernet link is down.
NETWORK	Flashing Green	Ethernet link is up at 100 Mbps. Flashing indicates activity on interface.
NETWORK	Flashing Yellow	Ethernet link is up at 10 Mbps. Flashing indicates activity on interface.
