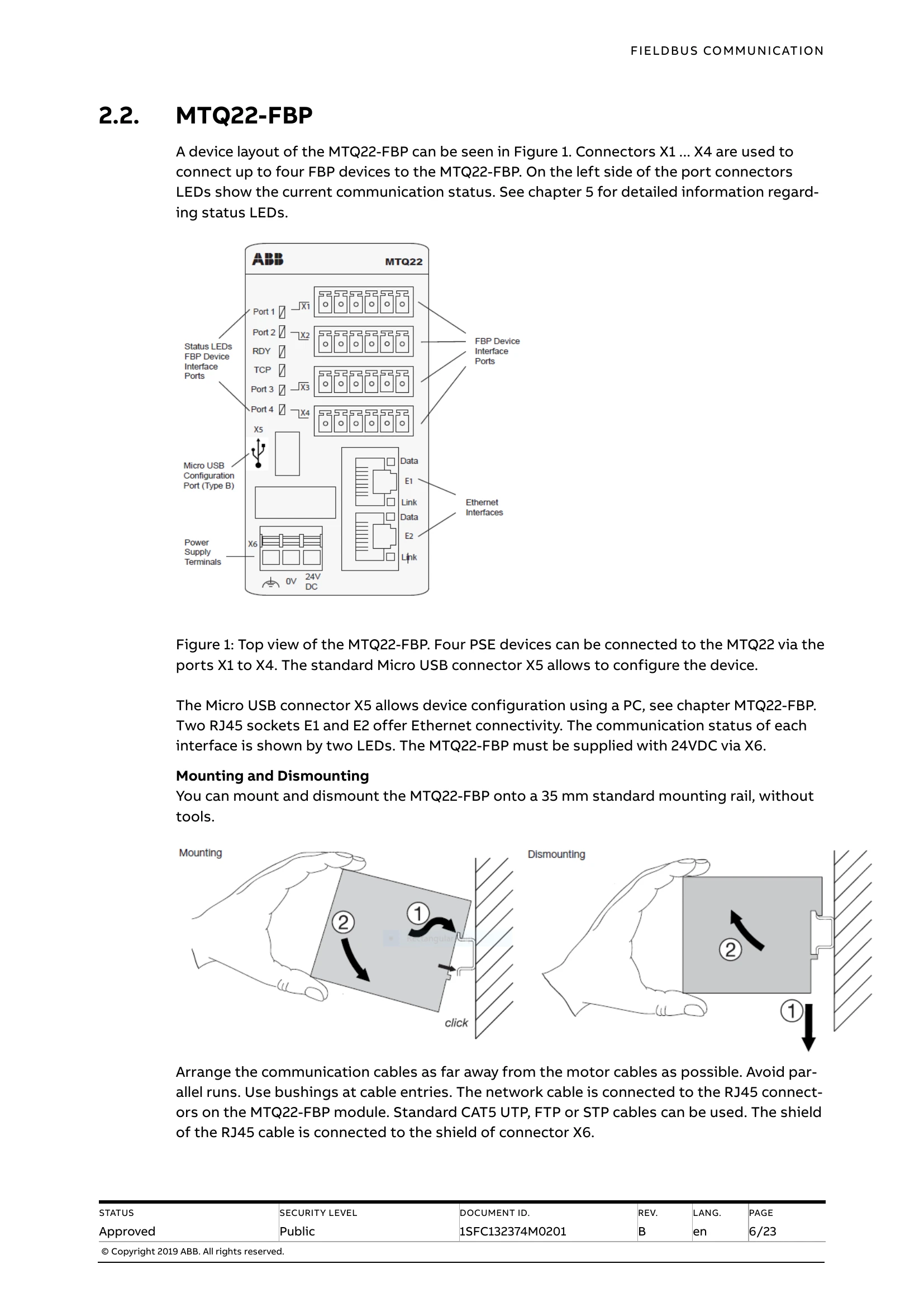

Manual for PSE12-600-70-5
Uploaded: Nov. 21, 2025, 8:49 p.m.
Manual Publish Date: 2019-12-18
The manual outlines the installation and configuration of the MTQ22-FBP Modbus TCP adapter module for ABB PSE softstarters. It covers technical descriptions, software setup for both the PSE softstarter and MTQ22-FBP, Modbus TCP register mapping for digital and analog inputs/outputs, parameter access, and diagnostics. The document details connection setups, LED indicators for troubleshooting, and basic TCP Modbus diagnostic information. It also provides contact information for further assistance.
Troubleshooting and error codes
| Error Code | Description | Possible Reasons, Corrective Measures |
|---|---|---|
| 0 | OK | - |
| 1 | Wait for FBP device. Communication not yet established. | Check that the FBP device is powered. Check the wiring between the FBP device and the MTQ22-FBP. |
| 2 | Unsupported FBP Device. An unsupported device was connected to the MTQ22-FBP. | Check that a PSE is connected and not another device. |
| 3 | Communication Fault on Module Port. Communication to a FBP device was established but was lost again. | Check the FBP device. Check that the FBP device is powered. Check that the drawer is inserted (in a withdrawable system) |
| 4 | Address mismatch. The configured device address and the real PSE device address do not match. | Fix parameterization Check that the connected PSE was not interchanged (e.g. wrong drawer inserted). |
| 5-10 | General configuration error | Double-check the configuration Check that no unsupported device was connected. Check configuration data sent to the MTQ22-FBP (if own config was sent) |
| Other values | Reserved | - |
