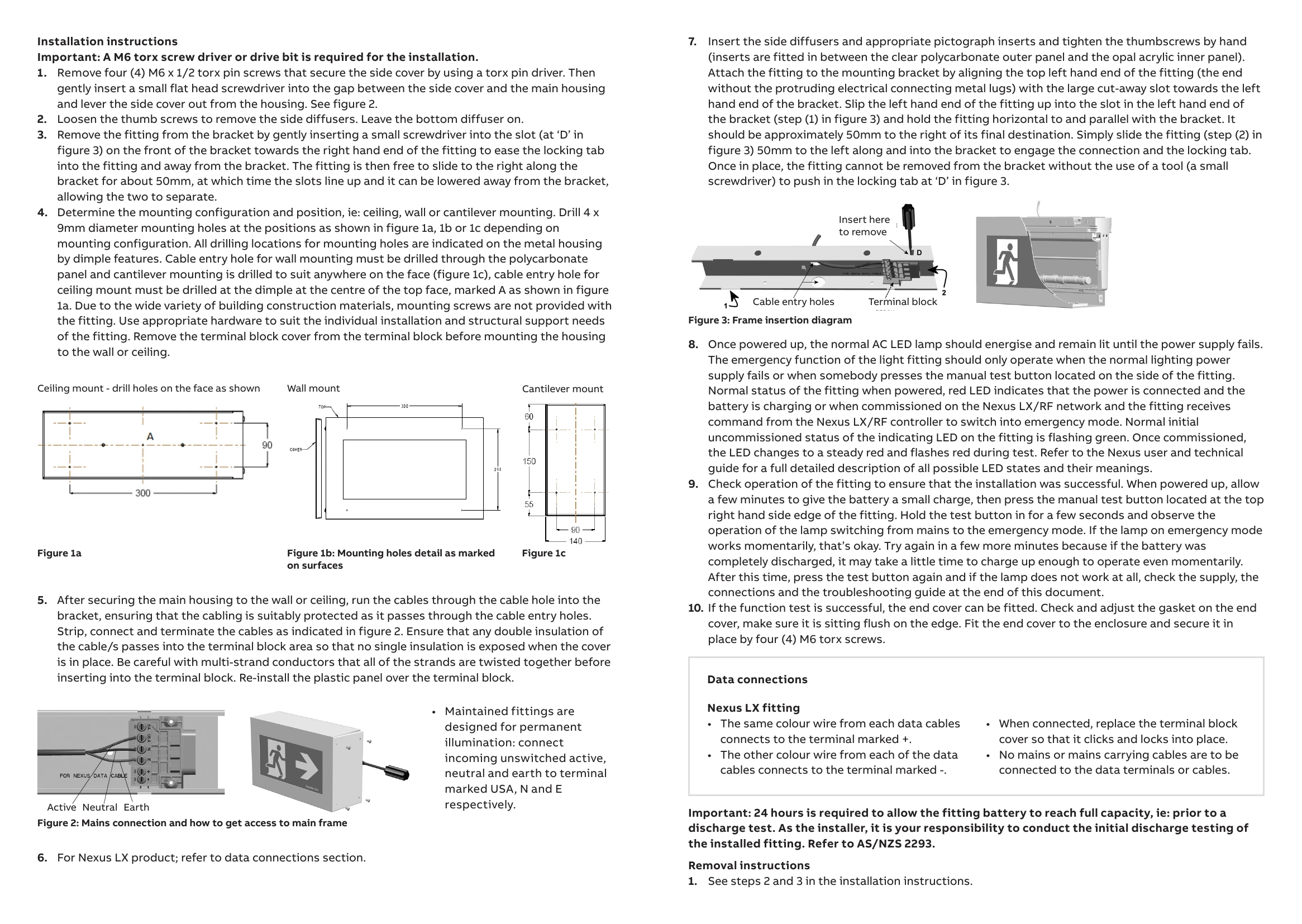

Installation Guide for Exit LED Quickfit® vandal resistant Standard, Nexus® LX, Nexus® RF
Uploaded: April 20, 2026, 8:10 p.m.
Manual Publish Date: 2019-07-01
Warranty Information
ABB may not honor battery warranty under harsh operating conditions or abuse of fittings.
- Commissioning Test: After permanent connection, allow 24 hours for battery charge. Conduct a test for at least 2 hours, and 6-monthly for at least 90 minutes. Keep records.
- Construction Site Warning: Frequent switching off/on of mains power can shorten battery life and may void warranty.
- Troubleshooting: Use the provided table to diagnose and fix common faults. Contact ABB customer service if issues persist.
- Safety: Only licensed electricians should work with 240V installations. Turn off and isolate power before installation. Do not touch energized terminals. User-serviceable part is the battery pack only.
- Nexus LX/RF: Specific installation for data cable systems and wireless communication are detailed.
Troubleshooting and error codes
| No. | Fault | Possible causes |
|---|---|---|
| 1 | LED light source and indicating LED not lit | AC supply not connected; or AC supply turned off; or Fitting not inserted into the base properly; or Test switch damaged |
| 2 | LED light source is lit but indicating LED not lit | Test switch damaged; or Battery not connected |
| 3 | LED light source does not switch to emergency mode when the test button is pressed | Test switch damaged |
| 4 | LED light source works momentarily on emergency when the test button is pressed | Battery not yet charged (allow up to 24 hours) |
