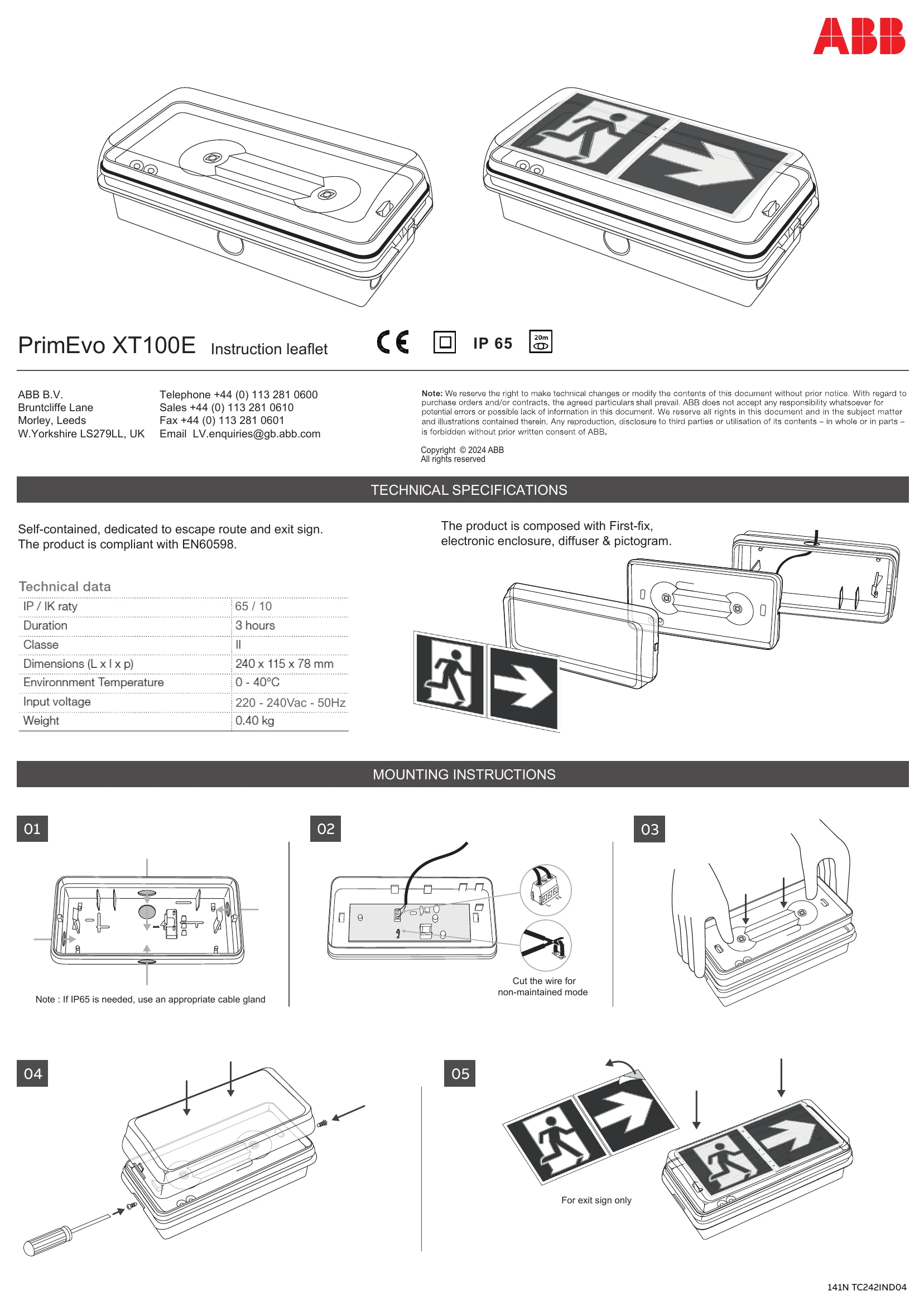

Manual for PrimEvo XT100E
Uploaded: April 20, 2026, 7:55 p.m.
Warranty Information
Warranty invalidated if product is modified or used improperly.
Installation and Connection
Read this leaflet carefully before installing or using the luminaire. Ensure installation is done by qualified personnel according to standards. Do not modify the product or use it for unintended purposes. Isolate the supply before installation. The light source is non-replaceable. Connect to 220-240V 50Hz.
Battery
A fault occurs if duration requirements are not met. Replace batteries as indicated on the label. Recommended replacement after 4 years.
Inspection and Maintenance
Annual inspection of emergency lighting is strongly advised. Ensure constant voltage and sufficient battery charge for proper functioning. Failure to do so can damage the unit.
Explanation
- Green LED: Indicates OK status.
- Maintained: Light is on during normal operation and emergency.
- Non-maintained: Light is on only during emergency.
- Emergency mode: Indicates the luminaire is in emergency operation.
- Failure - Battery Charge: Indicates a failure or low battery charge.
Troubleshooting and error codes
| Indicator | Status | Meaning |
|---|---|---|
| Green LED | On | OK |
| Green LED | Off | Failure - Battery Charge |
| (Maintained) | On | Emergency mode |
| (Non-maintained) | On | Emergency mode |
