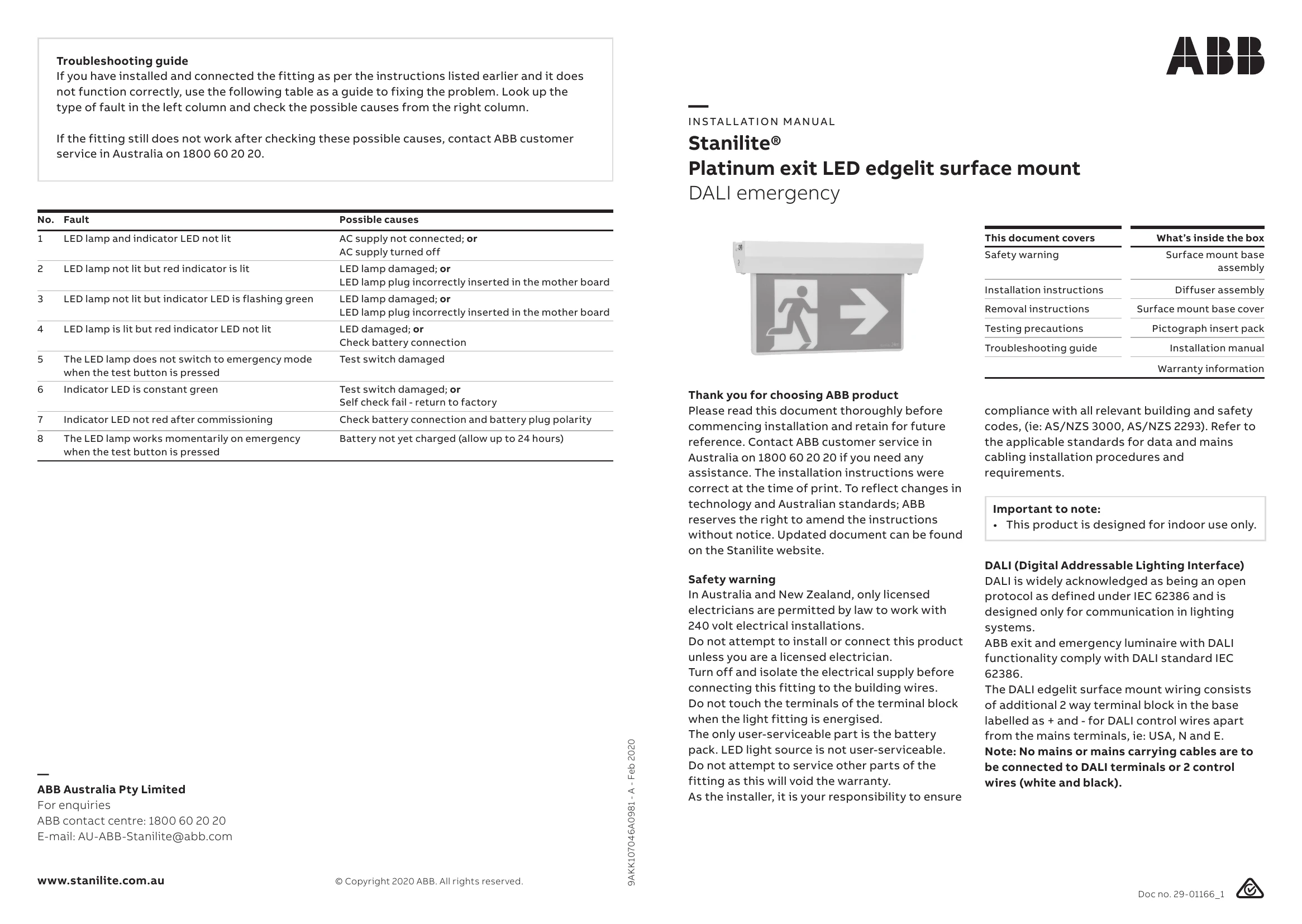

Installation Guide for Stanilite® Platinum exit LED edgelit surface mount DALI emergency
Uploaded: April 20, 2026, 7:52 p.m.
Manual Publish Date: 2020-02-01
Warranty Information
ABB reserves the right to amend instructions without notice to reflect changes in technology and standards.
The Stanilite® Platinum exit LED edgelit surface mount luminaire with DALI emergency functionality is designed for indoor use. It complies with DALI standard IEC 62386. The DALI wiring consists of a 2-way terminal block for control wires, separate from the mains terminals (USA, N, E). Ensure correct wiring to DALI terminals (+ and -) and not to mains terminals. The manual provides installation instructions, removal steps, testing precautions, and a troubleshooting guide. It emphasizes the importance of licensed electricians for installation, turning off power before work, and proper battery charging and testing according to AS/NZS 2293.2. The product is designed for reliable emergency lighting and requires periodic discharge testing.
Troubleshooting and error codes
| No. | Fault | Possible causes |
|---|---|---|
| 1 | LED lamp and indicator LED not lit | AC supply not connected; or AC supply turned off |
| 2 | LED lamp not lit but red indicator is lit | LED lamp damaged; or LED lamp plug incorrectly inserted in the mother board |
| 3 | LED lamp not lit but indicator LED is flashing green | LED lamp damaged; or LED lamp plug incorrectly inserted in the mother board |
| 4 | LED lamp is lit but red indicator LED not lit | LED damaged; or Check battery connection |
| 5 | The LED lamp does not switch to emergency mode when the test button is pressed | Test switch damaged |
| 6 | Indicator LED is constant green | Test switch damaged; or Self check fail - return to factory |
| 7 | Indicator LED not red after commissioning | Check battery connection and battery plug polarity |
| 8 | The LED lamp works momentarily on emergency when the test button is pressed | Battery not yet charged (allow up to 24 hours) |
