Warranty Information
Prior to installation, store in a clean, dry environment as per specification. Warranty requires specific documentation in case of failure.

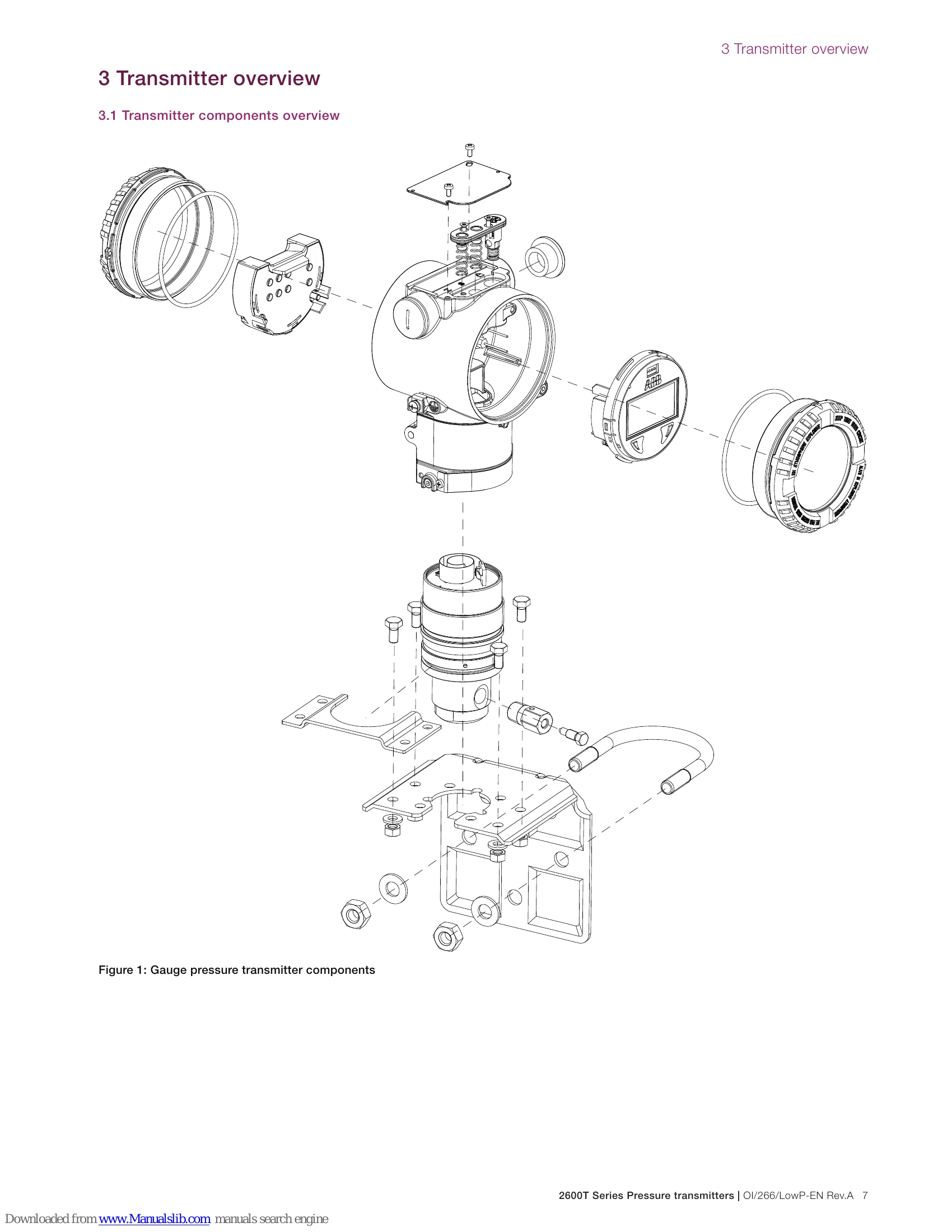

The operation section details how to configure and use the 266HSH pressure transmitter. Key aspects include setting the lower and upper range values (LRV/URV) using LCD keys or a handheld terminal, configuring the output function (Linear, Customization, Tank types), and adjusting damping settings to smooth noisy signals. It also covers hardware settings via dip switches for mode selection, fail-safe configuration, and write protection. The HMI menu structure and navigation for easy setup are explained, along with feedback messages for button operations. Specific procedures for activating the integrated LCD and managing parameters are provided. Configuration can also be done via PC or HHT (Hand Held Terminal).
Troubleshooting and error codes
| Error message | Tx LCD message | Possible cause | Suggested action | Tx response |
| Communication Board / Electronic related error messages. | ||||
| F116.023 | Electronic Memory Failure | Electronic memory corrupted | The electronic must be replaced | Analog Signal to Alarm |
| M026.024 | NV Electronic Memory Burn Error | Writings to the electronic non-Volatile Memory has not been successful | The communication board should be replaced as soon as possible | no effect |
| Sensor related error messages | ||||
| F120.016 | Sensor Invalid | The sensor signal is not being updated correctly as a result of an electronics failure, sensor error or a poorly connected sensor cable. | Check cable connection, check sensor and if problem persists, the sensor must be replaced. | Analog Signal to Alarm |
| F118.017 | Sensor Memory Fail | Sensor memory corrupted | The sensor must be replaced | Analog Signal to Alarm |
| F114.000 | P-dP Sensor Fail | Mechanical damage to the sensor. Loss of fill fluid from the cell, ruptured diaphragm, broken sensor. | The sensor must be replaced | Analog Signal to Alarm |
| F112.001 | Static Pressure Sensor Fail | The circuitry for the sampling of the static pressure has failed. | The sensor must be replaced | Analog Signal to Alarm |
| F110.002 | Sensor Temperature Fail | The circuitry for the sampling of the temperature has failed. | The sensor must be replaced | Analog Signal to Alarm |
| M028.018 | NV Sensor Memory Burn Error | Writings to the sensor non-Volatile Memory was not successful | The sensor should be replaced as soon as possible. | no effect |
| Configuration related error messages | ||||
| C088.030 | Input Simulation Active | The P-dP Value produced in output is derived by the value simulated in input | Use a HART configurator (DTM - Hand held) to place device back in to normal operating mode (Remove the input simulation) | no effect |
| C088.030 | Input Simulation Active | The Static Pressure Value produced in output is derived by the value simulated in input | Use a HART configurator (DTM - Hand held) to place device back in to normal operating mode (Remove the input simulation) | no effect |
| C088.030 | Input Simulation Active | The Sensor Temperature Value produced in output is derived by the value simulated in input | Use a HART configurator (DTM - Hand held) to place device back in to normal operating mode (Remove the input simulation) | no effect |
| M020.042 | Replace Info | The Electronics or the Sensor have been changed but the replacement operation has not been executed | The replacement operation must be executed: Move the SW 1 of the electronics in position 1 = Enable replace mode -Select the SW 2 the element that has been changed between new Sensor or new electronics -Power Cycle the device -Move the SW 1 of the electronics in position 0 | no effect |
| C090.033 | Analog Output Fixed | The analog output for the Primary Variable is derived by the value simulated in input. | Use a HART configurator (DTM - Hand held) to place device back in to normal operating mode (Remove the analog output simulation) | no effect |
| Operation related error messages | ||||
| M022.041 | Electronic Temperature Out of Limits | The Electronics temperature is out of its lower acceptable limit. The circuitry for the sampling of the Electronics Temperature has failed. | The Electronics should be replaced as soon as possible. | no effect |
| M022.041 | Electronic Temperature Out of Limits | The Electronics temperature is out for its Higher acceptable limit. The circuitry for the sampling of the Electronics Temperature has failed. | The Electronics should be replaced as soon as possible. | no effect |
| Process related error messages. | ||||
| F104.032 | Pressure Overrange | This effect could be produced by other equipment on the process, (valves.....). Exceeding the pressure range can cause reduced accuracy or mechanical damage to the diaphragm material and may require calibration/replacement. | The compatibility of pressure transmitter model and process conditions has to be checked. A different transmitter type could be required | no effect |
| F102.004 | P-dP Out Of Limits | The measurement range has not been correctly calculated OR an incorrect transducer model has been selected. | The compatibility of pressure transmitter model and process conditions has to be checked. Probably a different transmitter type is required. | no effect |
| F100.005 | Static Pressure Out of Limits | The static pressure of the process exceeds the limit of the sensor. Exceeding the Static Pressure can reduce accuracy, mechanically damage the diaphragm and may require calibration/replacement. An incorrect transducer model could have been selected. | The compatibility of pressure transmitter model and process conditions has to be checked. Probably a different transmitter type is required. | no effect |
| S054.006 | Sensor Temperature Out of Limits | The temperature of the process environment affects the pressure transmitter; Excess temperature can reduce accuracy, degrade device components and may require calibration/replacement. | The compatibility of pressure transmitter model and process conditions has to be checked. A different installation type could be required e.g. use of remote seals. | no effect |
| S052.031 | Max Working Pressure Exceeded | The static pressure of the process exceeds the max working Pressure supported by the transmitter. Exceeding the Max Working Pressure can mechanically damage the process connections (flanges, pipes....) and/or be dangerous | The compatibility of pressure transmitter model and process conditions has to be checked. | no effect |
| F098.034 | Analog Output Saturated | The analog output for the Primary Variable is beyond its Low scaling limit and no longer represents the true applied process. The Analog Output (1-5V) is saturated to the configured Saturation Limit Low. | Adjust the Saturation Limit or the working range if possible. | no effect |
| F098.034 | Analog Output Saturated | The analog output for the Primary Variable is beyond its High scaling limit and no longer represents the true applied process. The Analog Output (1-5V) is saturated to the configured Saturation Limit High. | Adjust the Saturation Limit or the working range if possible. | no effect |
