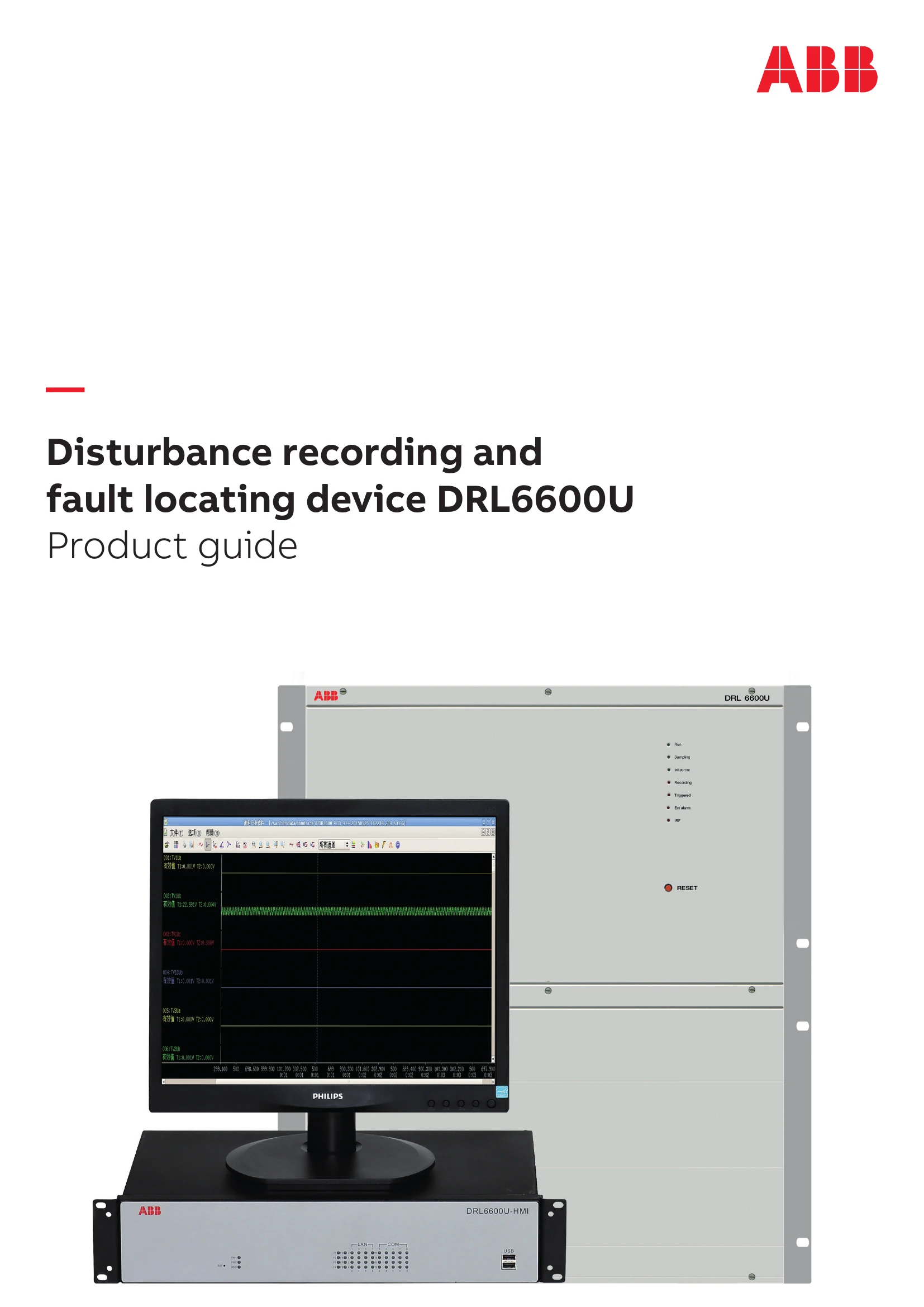

Manual for DRL6600U
Uploaded: April 20, 2026, 7:50 p.m.
Manual Publish Date: 2017-05-01
The DRL6600U is a disturbance recording and fault locating device designed for substations, industrial use, railways, and power generation. It records electrical variables during events like power oscillations, frequency collapses, and voltage fluctuations to support incident analysis and operation maintenance.
The device consists of a recording unit with CPU and hard disk, and a separate HMI. It offers various recording modes, including:
- Variation current recording
- Delta current recording
- Residual overcurrent recording
- Phase voltage recording (overvoltage, delta, and harmonic analysis)
- Rate-of-change frequency recording
- Binary signal recording
It also provides fault locating capabilities and a cross-platform waveform analysis tool for data analysis on Windows and Linux systems. The device supports manual and remote recording, monitoring, and has basic IED functions like self-supervision and time synchronization.
Troubleshooting and error codes
| Name | Value (range) | Accuracy |
|---|---|---|
| Phase overcurrent | 0.1...20A | Settings ≥ 10%In, accuracy: ±10% |
| Negative-sequence overcurrent | 0.05...20A | Settings ≥ 10%In, accuracy: ±10% |
| Residual overcurrent | 0.05...20A | Settings ≥ 10%In, accuracy: ±10% |
| Phase overvoltage | 50...150V | ±5% |
| Positive-sequence overvoltage | 50...150V | ±5% |
| Negative-sequence overvoltage | 0.5...30V | Settings ≥ 3%Un, accuracy: ±5% |
| Residual overvoltage | 0.5...200V | Settings ≥ 3%Un, accuracy: ±5% |
| Phase undervoltage | 10...120V | ±5% |
| Positive-sequence undervoltage | 10...120V | ±5% |
| Delta phase voltage | 0.5...30V | Settings ≥ 5%Un, accuracy: ±10% |
| Delta residual voltage | 0.5...30V | Settings ≥ 5%Un, accuracy: ±10% |
| Delta phase current | 0.05...10A | Settings ≥ 10%In, accuracy: ±20% |
| Delta residual current | 0.05...10A | Settings ≥ 10%In, accuracy: ±20% |
| Variation current | 0.05...0.2% | ±10% |
| Over frequency | 50...55Hz | ±0.01 |
| Low frequency | 45...50Hz | ±0.01 |
| Rate-of-change frequency | 0.05...1Hz/s | ±10% |
| Harmonic overvoltage | 0.5...30V | Settings ≥ 10%Un, accuracy: ±5% |
| Binary signal | Last for ≥ 2ms after binary signal shift, trigger recording | ≤1ms |
| Fault Locating | - | Outlet fault ≤ 2kΩ, others ≤ 5% |
