Manual for MagMaster
Uploaded: April 20, 2026, 8:02 p.m.
Manual Publish Date: 2004-03-01
Warranty Information
No specific warranty period is detailed in the provided text.
Operation Summary

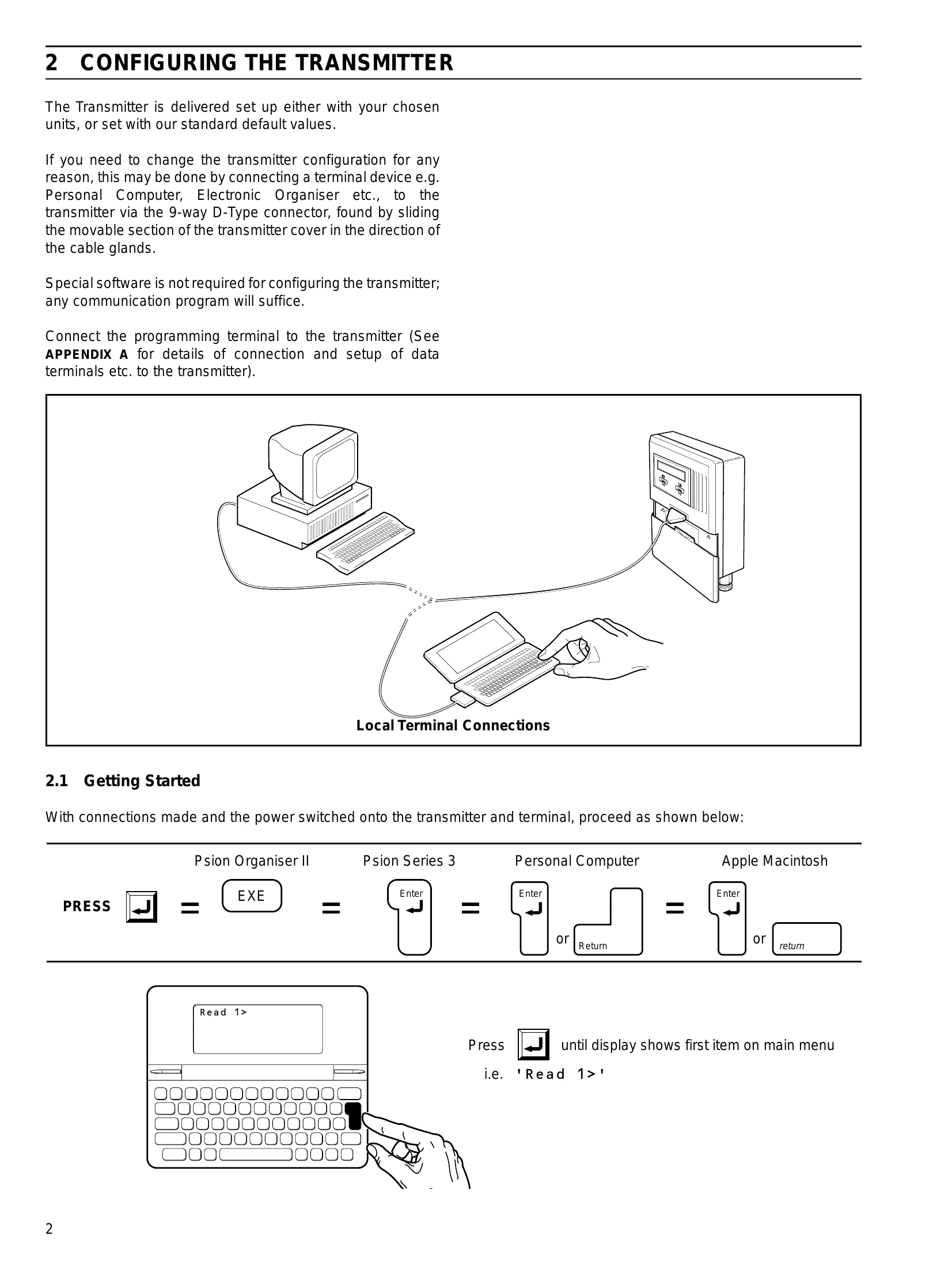

This manual details the configuration of the ABB MagMaster Electromagnetic Flowmeter. It covers setting up the transmitter, navigating the main menu, accessing parameters via password protection (user and engineer levels), and changing parameter values (numerical and logic). Advanced techniques such as fast selection and data entry are also explained. Fault finding procedures are outlined, including understanding alarm indications and using the Test Mode. The manual provides detailed parameter tree structures and descriptions, covering flow, display, login, totalizer, alarm, input, sensor, and test functions.
Troubleshooting and error codes
| Display | Alarm | Action/Notes |
|---|---|---|
| MtSnsr | Empty Sensor | Check sensor cable, reset alarms. If persists, replace sensor or transmitter. |
| Hi | High flow | Check trip value, check transmitter. |
| Lo | Low flow | Check trip value, check transmitter. |
| Anlg | Analogue over range | Check analogue output settings and connections. |
| Pls | Pulse frequency limited | Check pulse output settings and connections. |
| Coil | Sensor Coil open circuit | Check sensor coil and connections. Replace transmitter if necessary. |
| 19, 20, 21 | Fault Finding Flow Chart | Follow the chart for detailed diagnostic steps. |
| 'Clr' | No alarms active | Indicates no active alarms. |
