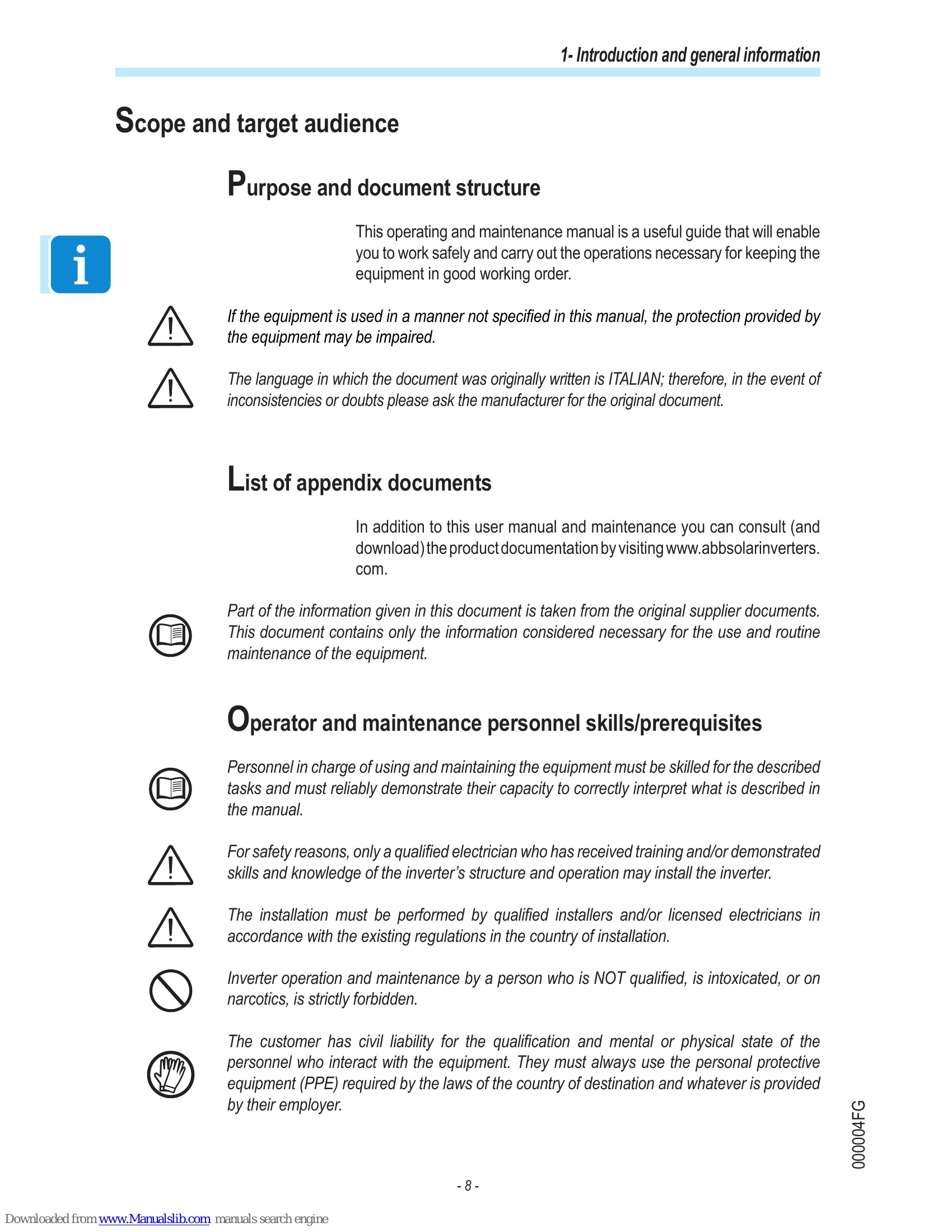

Manual for TRIO-50.0-TL-OUTD
Uploaded: April 20, 2026, 8:02 p.m.
Manual Publish Date: 2017-03-07
Warranty Information
Warranty conditions are valid if the manual's indications are followed; deviations require express agreement.
This manual provides instructions for the safe and proper installation, operation, and maintenance of the ABB TRIO-50.0-TL-OUTD solar inverter. It covers important safety information, equipment characteristics, lifting and transport, installation procedures, instrument descriptions, operational guidelines, and maintenance tasks. The manual details the inverter's components, technical data, and troubleshooting steps. It emphasizes adherence to safety instructions and the qualified personnel requirement for installation and maintenance.
Troubleshooting and error codes
| - Error code | Name of Alarm and Cause | Solution |
|---|---|---|
| E084 BackFeed OC Yellow LED |
Return current to photovoltaic field: The error occurs if the input voltage is particularly low (typically in the evening in conditions of low irradiation) and indicates a return current from the inverter to the photovoltaic panels. | If the error occurs in the evening or in conditions of low irradiation, it must not be considered a problem but a protection intervention for the photovoltaic field. If the error occurs with good irradiation conditions, switch the inverter off and back on again; if the error persists, contact customer assistance. |
| E086 - Batt. 1 - F2 No LED |
Error battery pack 1 unusable: Indicates that the battery pack is unusable and must be replaced. | • Error inside battery pack 1 and cannot be checked externally. • If the problem (once the system has been switched off and back on) persists, contact customer assistance. |
| E087 - Batt. 2 - F2 No LED |
Error battery pack 2 unusable: Indicates that the battery pack is unusable and must be replaced. | • Error inside battery pack 2 and cannot be checked externally. • If the problem (once the system has been switched off and back on) persists, contact customer assistance. |
| E088 - Batt. 3 - F2 No LED |
Error battery pack 3 unusable: Indicates that the battery pack is unusable and must be replaced. | • Error inside battery pack 3 and cannot be checked externally. • If the problem (once the system has been switched off and back on) persists, contact customer assistance. |
| E089 Wrong Wiring Yellow LED |
Incorrect grid wiring connection on Stand Alone: The error occurs if the grid cables have been incorrectly connected to the Stand Alone output. | Check that the cables on the Stand Alone output have been installed correctly. |
