Installation Guide for X1000
Uploaded: April 20, 2026, 7:57 p.m.
Manual Publish Date: 2020-04-01

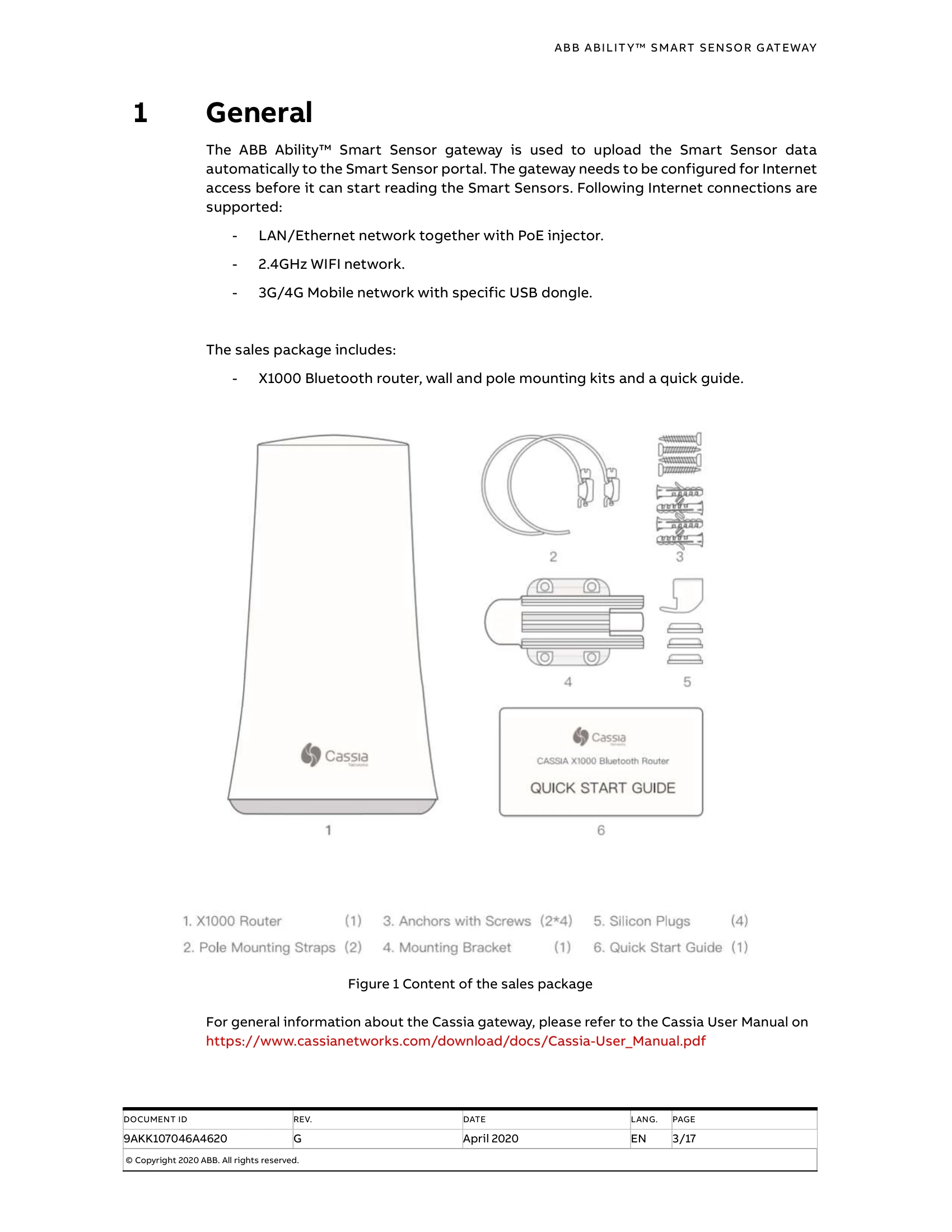

The ABB Ability™ Smart Sensor gateway is used to upload Smart Sensor data to the Smart Sensor portal. It supports various internet connections including LAN/Ethernet with PoE, 2.4GHz Wi-Fi, and 3G/4G mobile networks. The gateway needs to be configured for internet access before it can read Smart Sensors. The installation involves connecting the gateway, configuring its network settings, and verifying the connection. Troubleshooting steps are provided for common issues.
Troubleshooting and error codes
| Issue | Solution |
|---|---|
| Forgetting login credentials or incorrect Wi-Fi configuration | Press reset button for 10 seconds while gateway is powered on. This resets all settings to factory defaults. |
| Gateway does not generate Wi-Fi hotspot for setup | Check power supply (blue LED ON). If gateway is configured for Wi-Fi network, it won't generate a hotspot. Reset gateway if needed. |
| Gateway does not connect to AC server | Check internet access. If using USB dongle, ensure it's supported and connected to a mobile network. Verify network doesn't use VPN and firewall settings allow necessary ports. |
| Gateway is not reading Smart Sensor data | Ensure Smart Sensors are within range. Data may take hours to appear. Check Status Page for 'AC Online Time'; if not shown, check internet connection. |
| Scanning for Bluetooth devices | Adjust gateway placement or orientation. To enable scanning, change router mode from 'AC Managed Router' to 'Standalone Router' in the Basic Page. Gateway will reboot. |
