Manual for 4234 600
Uploaded: Nov. 21, 2025, 6:56 p.m.
Warranty Information
No specific warranty period is mentioned in the document.

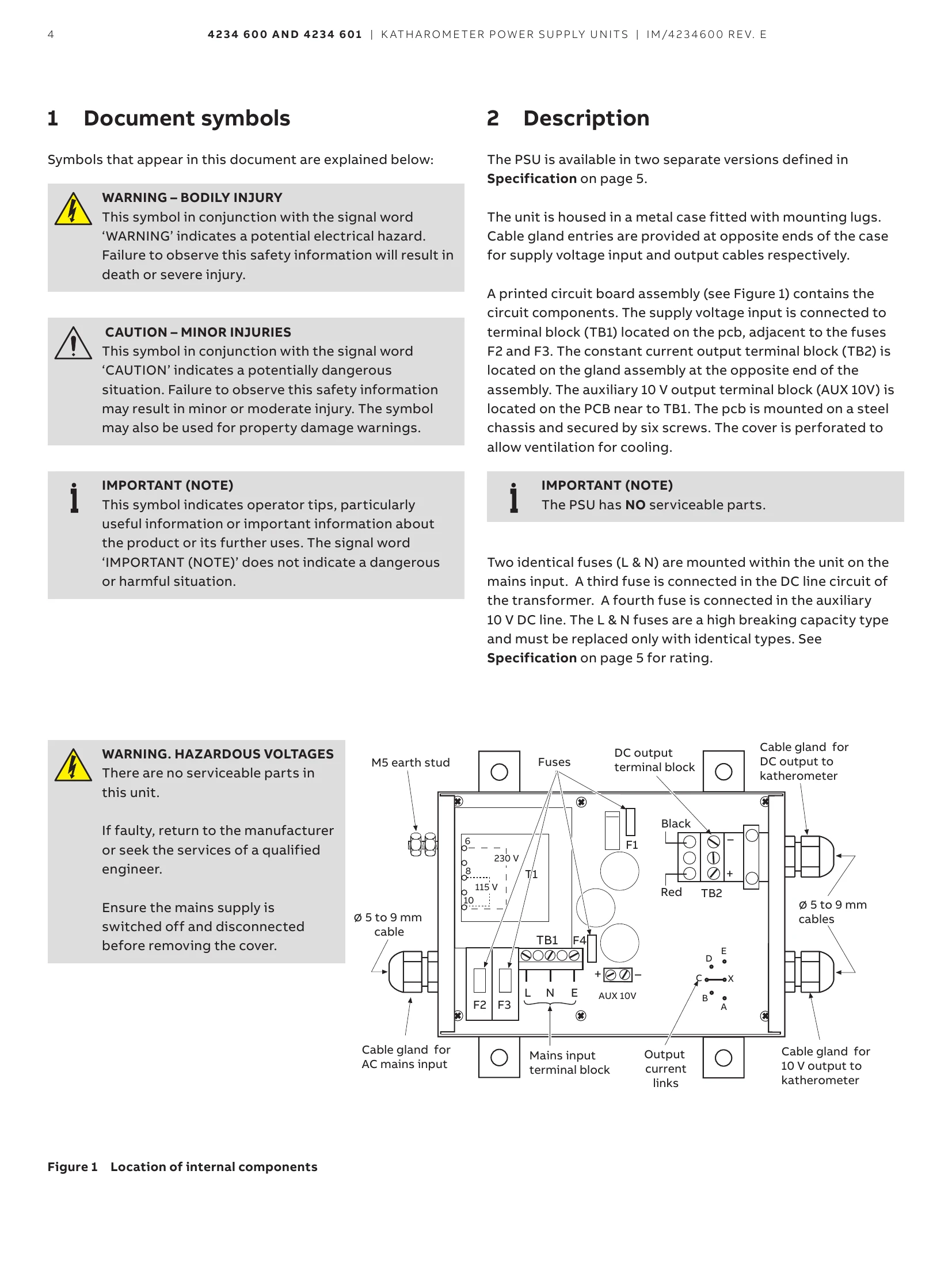

The 4234 600 and 4234 601 are Katharometer power supply units (PSUs). They provide a stabilized DC supply for operating a katharometer and an auxiliary 10 V DC supply for temperature control. Installation involves mounting the unit, connecting the AC mains input, and connecting the DC output and 10V cables to the katharometer. Fuse replacement is the only user-serviceable task. Ensure the correct unit version is used for the available supply voltage.
Troubleshooting and error codes
| Fault | Possible Cause | Remedy |
|---|---|---|
| No DC output | Fuse F4 blown | Replace F4 (1A (F) 250V) |
| No DC output | Fuse F2 or F3 blown | Replace F2/F3 (250mA (T) 1500A hbc cartridge) |
| No auxiliary 10V output | Fuse F4 blown | Replace F4 (1A (F) 250V) |
| Incorrect constant current output | Output links set incorrectly | Check and set output links according to Figure 7 |
| Incorrect constant current output | Fuse F2 or F3 blown | Replace F2/F3 (250mA (T) 1500A hbc cartridge) |
| Unit does not power up | Main supply fuse F1 blown | Replace F1 (400mA (F) 250V) |
| Unit does not power up | AC mains supply not connected or faulty | Check mains connection and supply |
