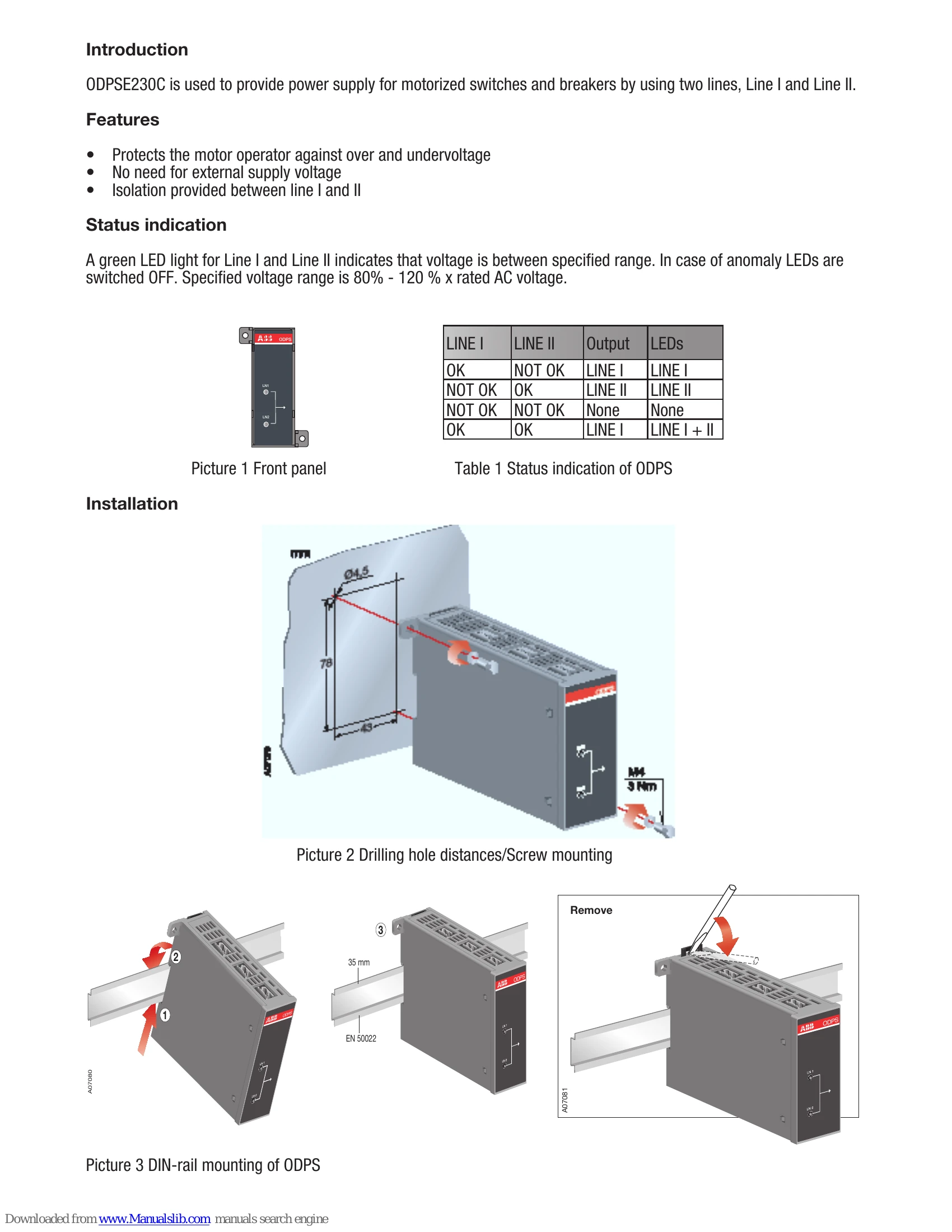

Installation Guide for ODPSE230C
Uploaded: April 20, 2026, 8 p.m.
The ODPSE230C is designed to provide power supply for motorized switches and breakers using two lines, Line I and Line II. It protects the motor operator against over and undervoltage, requires no external supply voltage, and provides isolation between Line I and Line II. A green LED indicates when the voltage is within the specified range (80% - 120% of rated AC voltage); LEDs are switched OFF in case of anomalies.
Troubleshooting and error codes
| LINE I | LINE II | Output | LEDs |
|---|---|---|---|
| OK | NOT OK | LINE I | LINE I |
| NOT OK | OK | LINE II | LINE II |
| NOT OK | NOT OK | None | None |
| OK | OK | LINE I | LINE I + II |
