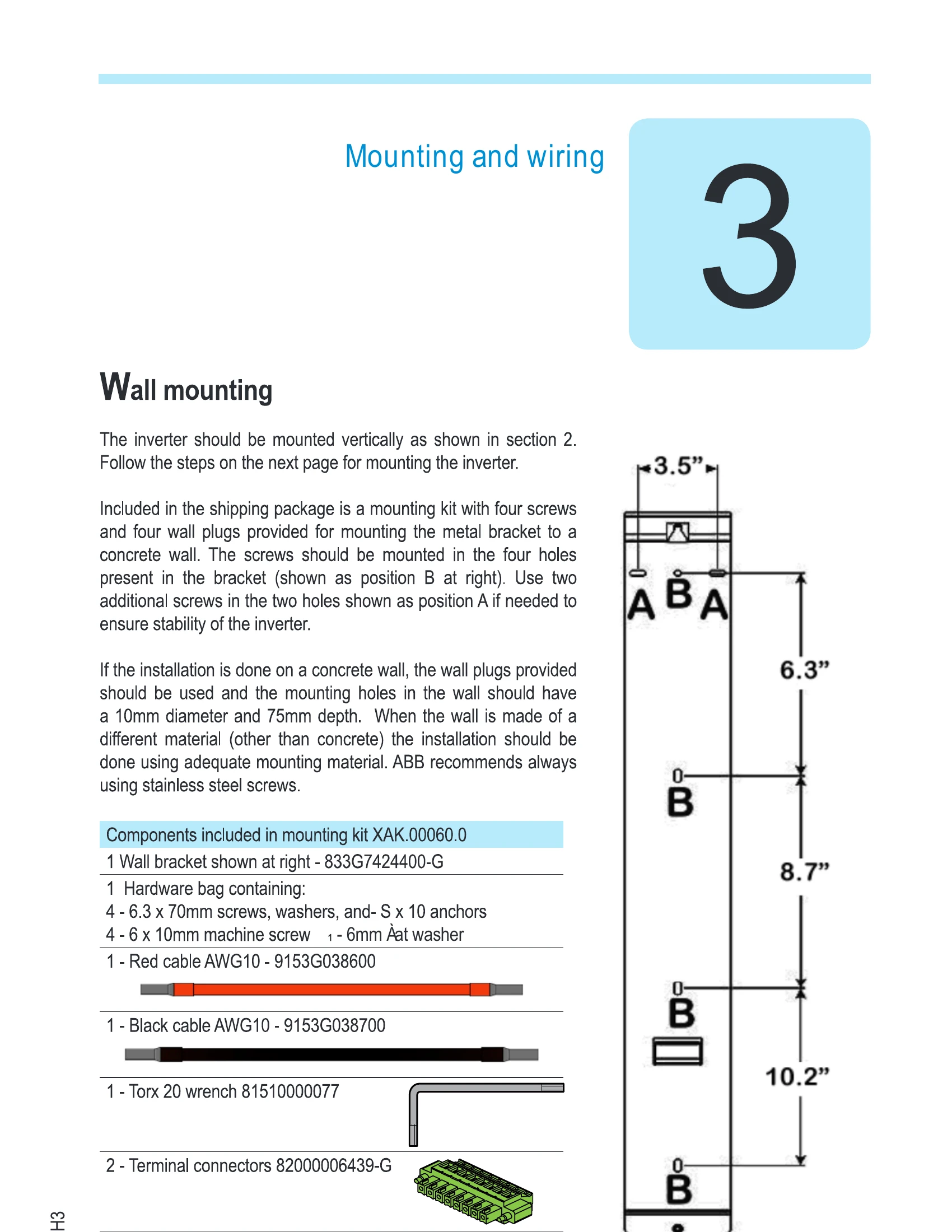

Manual for PVI-3.0-3.6-3.8-4.2-TL-OUTD-S-US (-A)
Uploaded: April 20, 2026, 7:45 p.m.
Warranty Information
The standard warranty is 10 years, with an extended warranty option of 15 or 20 years.
The ABB grid-tied inverters convert DC energy from photovoltaic panels into AC energy, feeding it into the utility grid. The system supports connected user loads, drawing from the grid if PV supply is insufficient or sending excess energy to the grid. This process utilizes DC-AC inversion for efficient energy conversion without rotating elements. Sizing and structure of the photovoltaic system depend on various factors including panel type, space availability, and energy production goals.
Troubleshooting and error codes
| Issue | Possible Cause | Solution |
|---|---|---|
| Arc Fault Detection Self-Test Errors | AFDI module fails self-test | Refer to "Arc Fault Detection Self-Test Errors" in section 5 for display error messages and instructions to reset fault conditions or manually start the self-test procedure. |
