Brand: ABB
Category: Power Supplies
Document Type: Installation Guide
Language: EN

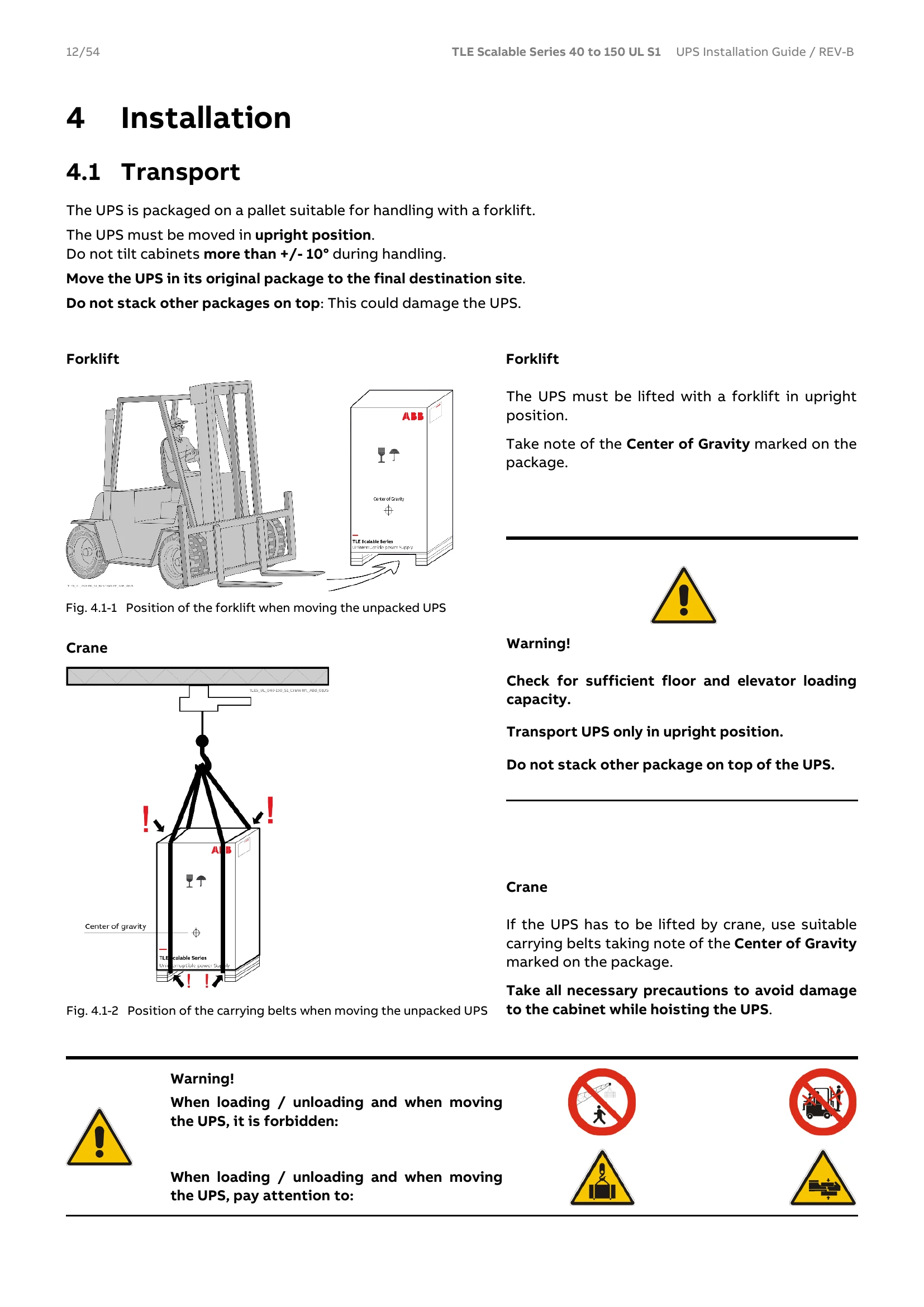

Installation Guide for TLE Scalable Series 40 to 150 kVA UL S1
Uploaded: April 20, 2026, 8:09 p.m.
Manual Publish Date: 2020-01-09
Warranty Information
The warranty details are not explicitly stated in this section of the manual.
This manual provides instructions for the installation of the TLE Scalable Series 40 to 150 kVA UL S1 UPS. It covers site preparation, transport, unpacking, electrical wiring, and connection procedures. The UPS is designed for commercial and industrial applications and requires installation by trained personnel.
Key operational aspects include:
- Safe handling and positioning of the UPS.
- Correct electrical connections for utility input and output.
- Understanding connectivity interfaces for monitoring and control.
- Compliance with safety regulations during installation and operation.
Troubleshooting and error codes
| Revision | Concern | Date |
|---|---|---|
| REV-B | ECN 2771 (IM0305 - UVR Control Board) & UPS weights | 04/25/2018 |
| Battery Cabinet(s) position | 01/09/2019 |
