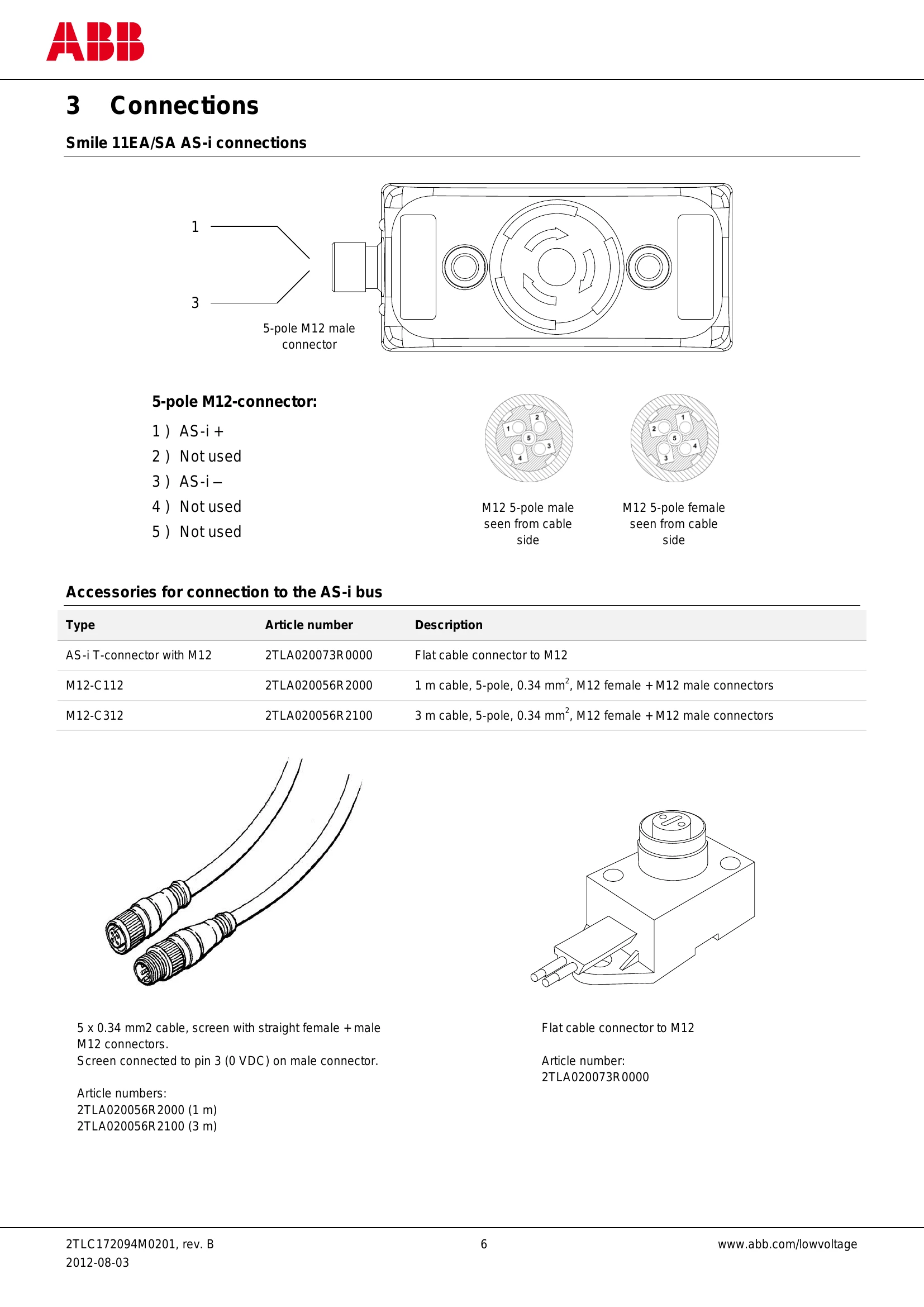

Manual for Smile 11EA AS-i
Uploaded: April 20, 2026, 8:13 p.m.
Manual Publish Date: 2012-08-03
Warranty Information
ABB/JOKAB SAFETY warrants products to be free from defects for one year from the date of sale.
Smile 11EA AS-i (Emergency Stop): Push the button to activate. Turn clockwise to unlatch.
Smile 11SA AS-i (Safety Stop): Push the button to activate. Turn clockwise to unlatch.
LED Indication:
- Red LED (pushbutton): Indicates Out bit 1 ON or OFF/Out bit 1&2 ON.
- Green LED (pushbutton): Indicates Out bit 2 ON or OFF/Out bit 1&2 ON.
AS-i LED (Green) and Fault LED (Red) combination:
- Both OFF: AS-i power missing.
- Green ON, Red OFF: Normal operation.
- Both ON: No data exchange with master.
- Green ON, Red Flash: No data exchange (address = 0).
Troubleshooting and error codes
| AS-i (Green) | Fault (Red) | Description |
|---|---|---|
| OFF | OFF | AS-i power missing |
| ON | OFF | Normal operation |
| ON | ON | No data exchange with master |
| Flash | ON | No data exchange because address = 0 |
