Brand: ABB
Category: Smart Home
Document Type: Manual
Language: EN

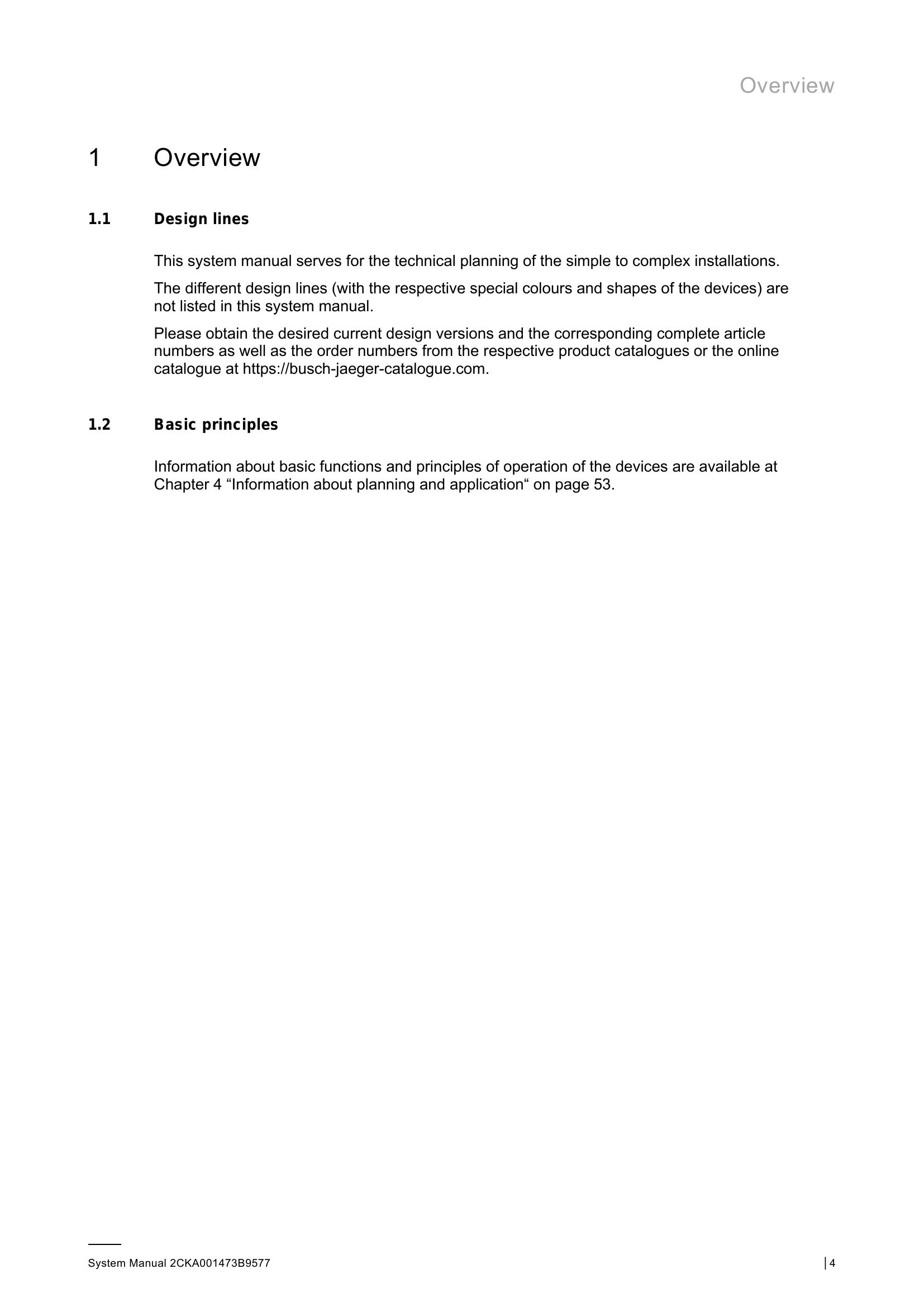

Manual for 2CKA001473B9577
Uploaded: April 20, 2026, 7:48 p.m.
Manual Publish Date: 2023-04-05
Warranty Information
No specific warranty period is mentioned in the provided document pages.
This manual provides comprehensive information on Busch-Presence detectors. It covers device overviews, different design lines, basic principles, and various applications such as offices, classrooms, corridors, and private houses. Detailed sections explain device functions, detection ranges, switching capacities, and status indications. It also includes information on planning and application, principles of function, case studies, and sources of interference with remedies. The manual details setting options via trimmers, remote control, and smartphone apps, differentiating between Monoblock devices and ABB flexTronics®. Mounting possibilities and compatibility charts are also provided.
Troubleshooting and error codes
| Source of Interference | Remedy |
|---|---|
| Suspended light bands | The presence detector must be located on the identical height level to the light band. |
| Limited view of the presence detector | Ensure detection range is not obstructed by objects like low lamp strips, large plants, partitions, or glass panes. |
| Foreign heat sources (rapid temperature changes) | Avoid placement near additional fans, lamps (< 1.5 m), moving machines, or swinging posters. For such cases, use devices with Bluetooth® function to adjust sensitivity sectors. |
| Heat sources without interference effect (slow temperature changes) | Generally not problematic if radiators are > 0.5 m away, surfaces heated by sun, EDP systems, or ventilation systems (if warm air does not blow directly into detection range). |
