Manual for EG/A 32.2.1

Main features:

• Reduced dimensions.
• Quick and easy installation.
• External power not required. Supplied through the KNX bus.
• Fully bidirectional.
• Supporting up to 253 KNX communication objects.
• Up to 32 simultaneous channels (or device nodes) and up to 5 devices (internal or linked) per channel.
• Fast and easy integration with EnOcean Gateways for air conditioning.
• Easy way to add new EnOcean devices through our catalogue file.
• Internal LCD to setup/monitor EnOcean devices.
• EnOcean devices quality signal reception shown in the gateway LCD.
• Intuitive and easy setup thanks to the ETS plugin with no need of any external software.
• Multiple objects for control and status (bit, byte, characters...) with KNX standard datapoint types.
• Status objects for every control available.

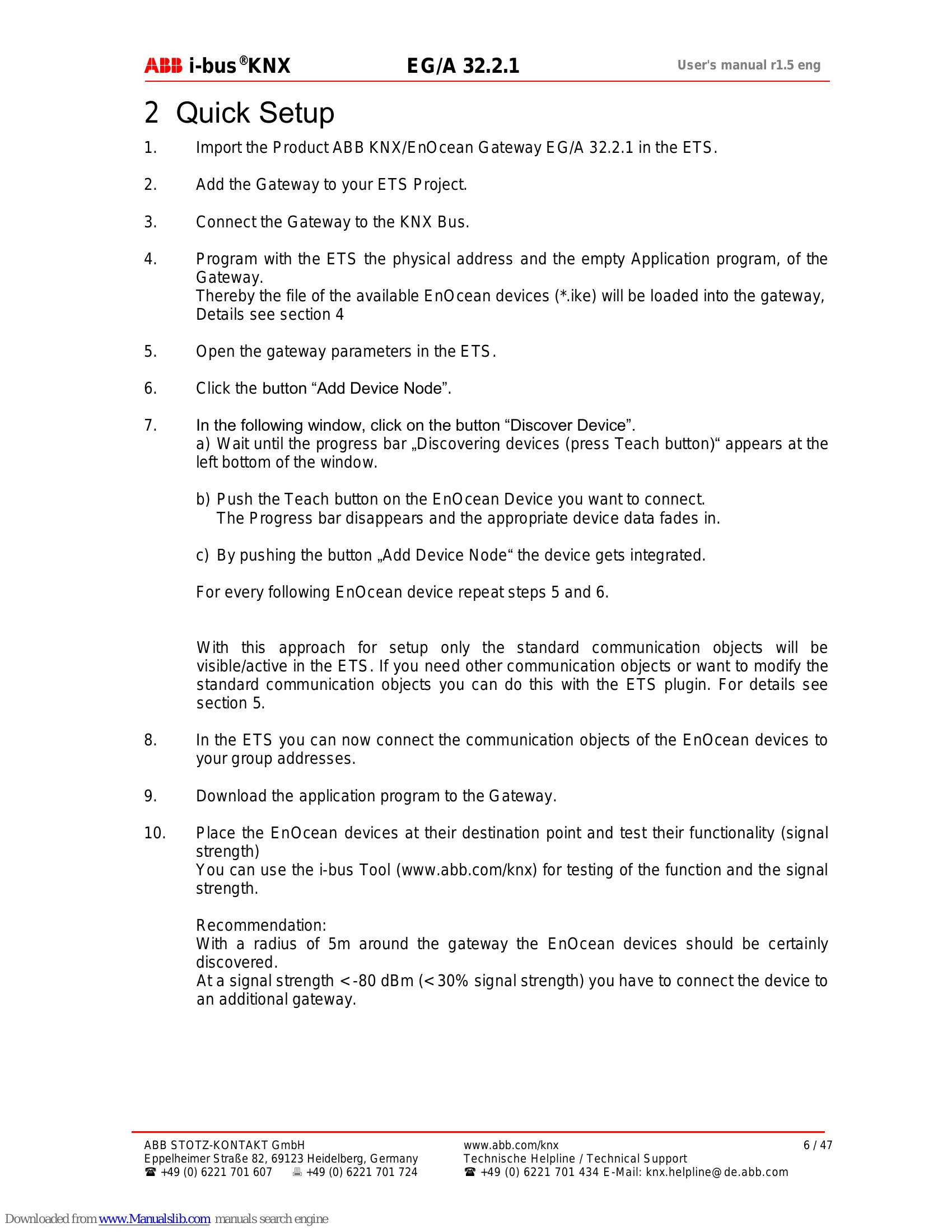

Quick Setup

1. Import the Product ABB KNX/EnOcean Gateway EG/A 32.2.1 in the ETS.
2. Add the Gateway to your ETS Project.
3. Connect the Gateway to the KNX Bus.
4. Program with the ETS the physical address and the empty Application program, of the Gateway.
5. Open the gateway parameters in the ETS.
6. Click the button "Add Device Node".
7. In the following window, click on the button "Discover Device".
8. With this approach for setup only the standard communication objects will be visible/active in the ETS.
9. In the ETS you can now connect the communication objects of the EnOcean devices to your group addresses.
10. Download the application program to the Gateway.
11. Place the EnOcean devices at their destination point and test their functionality (signal strength).

Integration Examples

Demonstrates how to integrate EnOcean devices into KNX, such as AC units, light actuators, window contacts, and room operating panels.
