Warranty Information
Refer to regional Acer office for specific warranty information.
Key Function Overview:
- Power Switch/ Power LED: Turns the monitor ON/OFF. Lights up to indicate power is ON.
- >/(Input): Activates OSD First menu. Navigates functions and changes settings. Can change input source when the first menu is active.
- </Volume: Activates OSD First menu. Navigates functions and changes settings. Can select audio when the first menu is active.
- Menu/Enter: Activates OSD First menu. Activates/deactivates adjustment functions when OSD is ON.
- Auto/Exit: Activates OSD First menu. Acts as EXIT-KEY for OSD menu. Triggers Auto Adjustment function when exiting eColor OSD.
- Empowering: Activates OSD First menu. Triggers Acer eColor Management when the first menu is active.

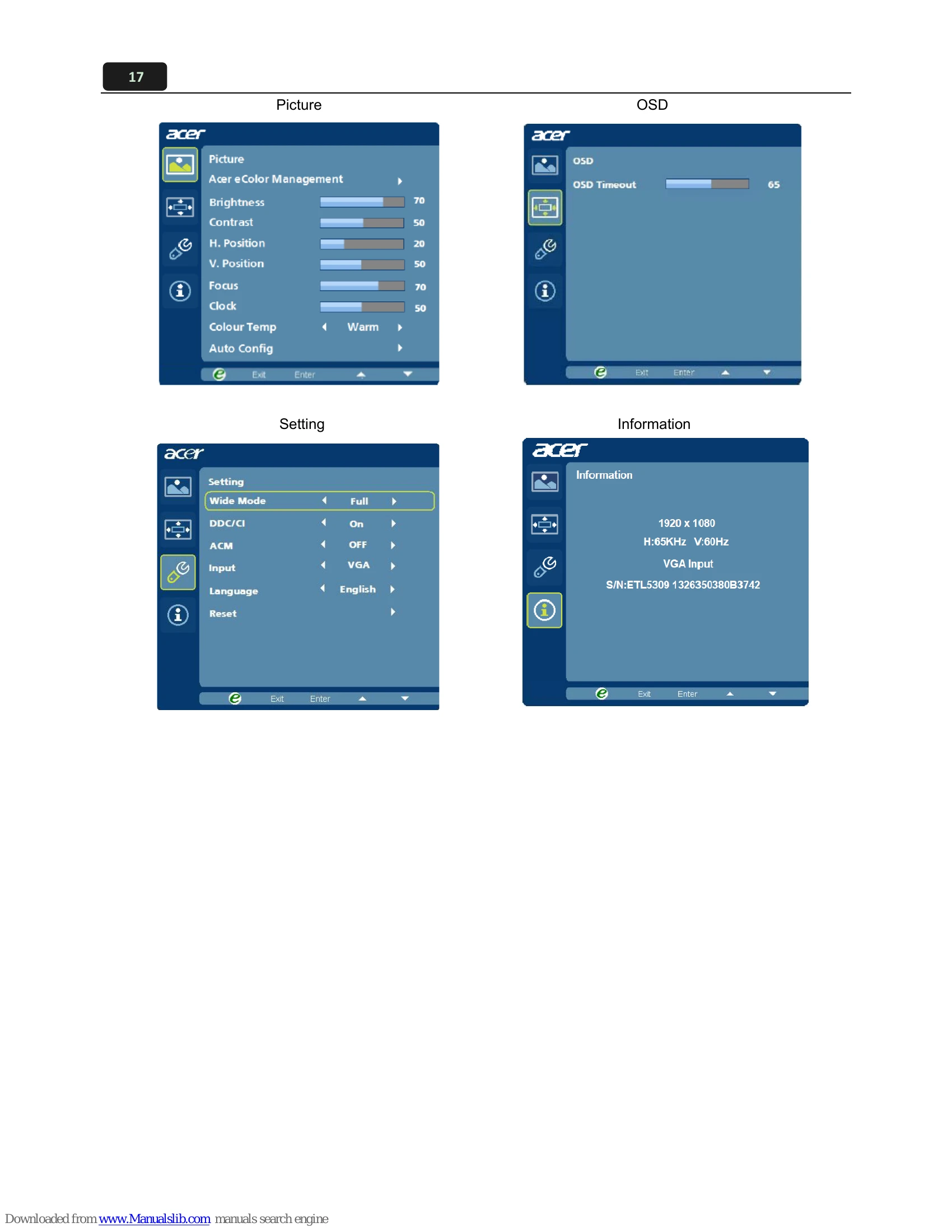

OSD Menu Operation:
- Pressing the MENU button brings up the first level menu.
- The OSD system controls the monitor. Settings are saved and OSD turns off when keys are not touched for a period.
Acer eColor Management:
- Can be accessed via the 'e' button at the Function menu or within the OSD menu/picture page.
- Allows scenario mode changes by pressing 'B' and 'A', and applies settings by pressing 'D'.
Troubleshooting and error codes
| Item | Description |
|---|---|
| Auto Config | When User Press Hot-Key "Auto", will show this message, and the monitor do the auto config function. |
| Please Wait | When the Hsync Frequency, Vsync Frequency or Resolution is out of the monitor support range, will show this message. This message will be flying. |
| Cable Not Connected | When the video cable is not connected, will show this message. This message will be flying with orange LED, and mute after about 60Secs. |
| No Signal | When the video cable is connected, but the is no active signal input, will show this message, then enter power saving. |
| Please Wait | After user trigger the reset function, system will show this message to notice user the reset is in proceeding |
