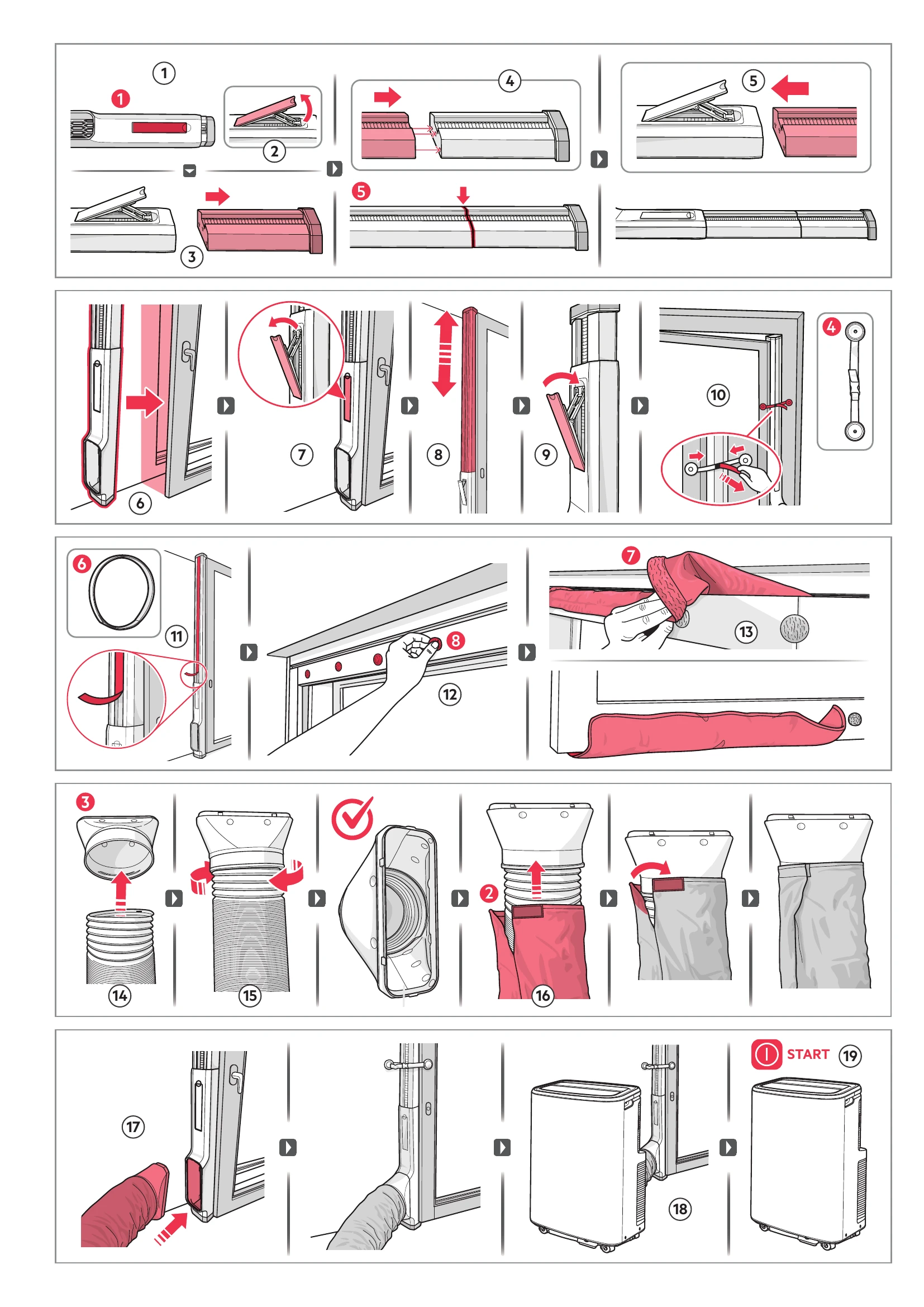

  1. Extend the telescopic rod to match the window height.
  2. Lift the locking lever of the window slider kit.
  3. Slide the extension piece out from the main housing.
  4. Align the 3 hooks on the extending piece with the 3 slots on the telescopic piece, slide them in, and press down to lock.
  5. Slide the combined telescopic rod back into the window kit.
  6. Position the window kit in the gap between the window and frame.
  7. Open the adjustment latch.
  8. Extend the arm until it firmly contacts the window frame ceiling.
  9. Close the adjustment latch.
  10. Remove adhesives from the window frame connector, attach to frame and wall, and adjust tension with the buckle.
  11. Cut and apply decorative film to extension pieces.
  12. Attach Velcro tabs to the window frame.
  13. Install side covers to seal the top and bottom of the window.
  14. Attach the hose connector to the hose end.
  15. Extend the hose and screw the connector securely.
  16. Pull hose cover over the hose and secure with Velcro.
  17. Clip hose connection to the window kit frame.
  18. Connect hose to the portable AC unit.
  19. Start the machine.
