Brand: AEG
Category: Power Tools
Document Type: Manual
Language: EN
Manual for BSB18B2M
Uploaded: April 20, 2026, 7:47 p.m.
Warranty Information
Refer to the manual for detailed warranty information.

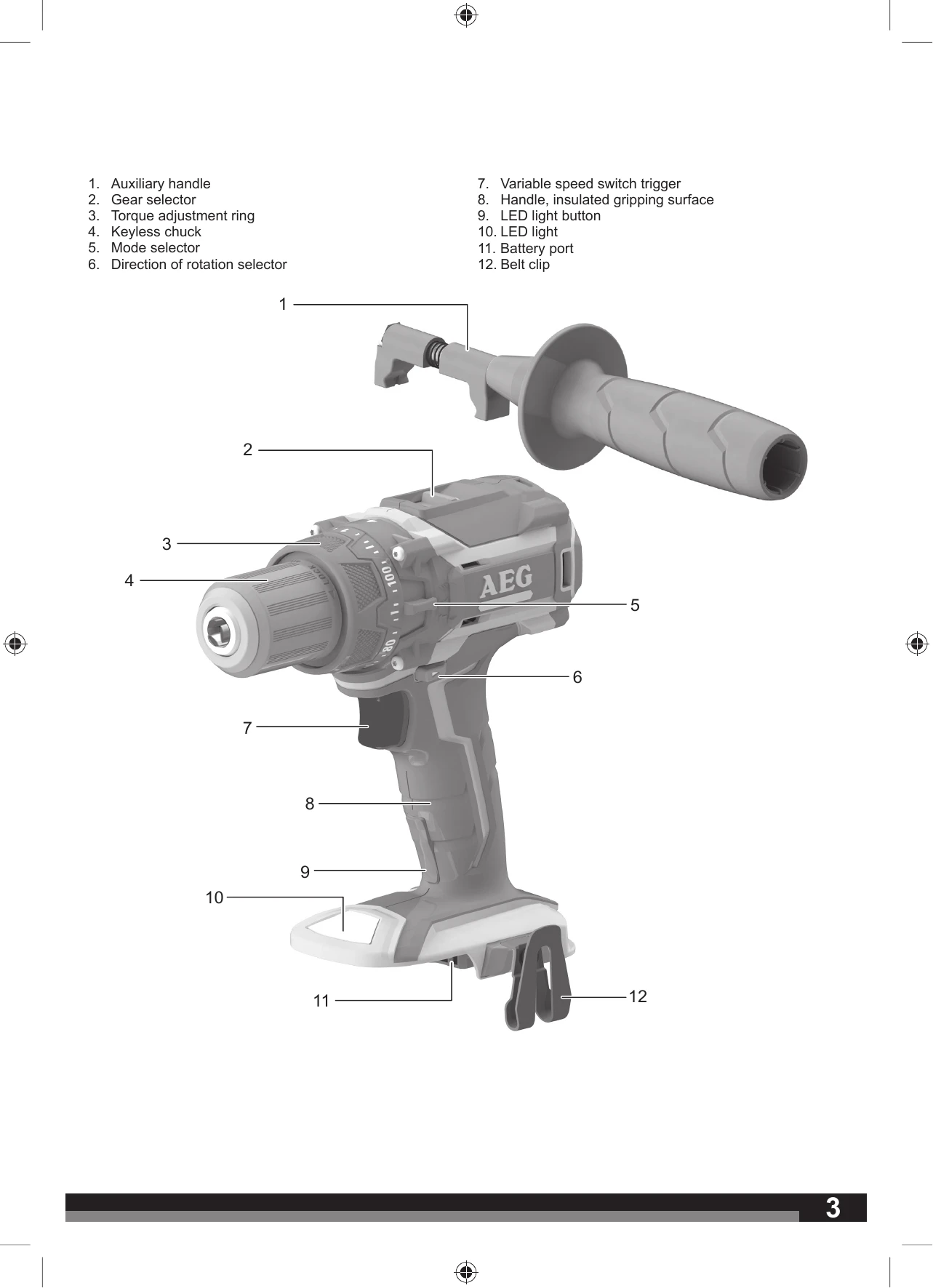

Installing Accessories: Insert the desired bit or accessory into the keyless chuck, tighten by hand or with a chuck key if applicable.
Battery Installation: Align the battery pack with the battery port and slide it in until it clicks into place. To remove, press the release buttons and slide the pack out.
Selecting Mode and Torque: Use the mode selector ring for drilling, hammer drilling, or screwdriving. Adjust the torque setting on the collar to prevent overtightening or stripping screws.
Direction of Rotation: Use the forward/reverse selector to change the direction of rotation.
LED Light: Press the LED light button to illuminate the work area.
Variable Speed Trigger: Squeeze the trigger to control the speed; a lighter squeeze means lower speed.
Auxiliary Handle: Attach and adjust the auxiliary handle for better control and stability, especially during demanding tasks.
Battery Installation: Align the battery pack with the battery port and slide it in until it clicks into place. To remove, press the release buttons and slide the pack out.
Selecting Mode and Torque: Use the mode selector ring for drilling, hammer drilling, or screwdriving. Adjust the torque setting on the collar to prevent overtightening or stripping screws.
Direction of Rotation: Use the forward/reverse selector to change the direction of rotation.
LED Light: Press the LED light button to illuminate the work area.
Variable Speed Trigger: Squeeze the trigger to control the speed; a lighter squeeze means lower speed.
Auxiliary Handle: Attach and adjust the auxiliary handle for better control and stability, especially during demanding tasks.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start. | Battery pack is not inserted correctly. | Ensure the battery pack is fully inserted. |
| Battery pack is discharged. | Recharge the battery pack. | |
| Overload protection activated. | Switch the machine off and then on again. If it does not start, the battery pack may be fully discharged. | |
| Accessory stalls during operation. | Tool is overloaded. | Reduce the feed pressure. |
| Accessory is tilted or has pierced the workpiece. | Rectify the cause of the stall. | |
| Incorrect accessory for the material. | Use the correct accessory. | |
| Accessory becomes hot. | Excessive use. | Allow the accessory to cool down. |
| Dull accessory. | Sharpen or replace the accessory. |
