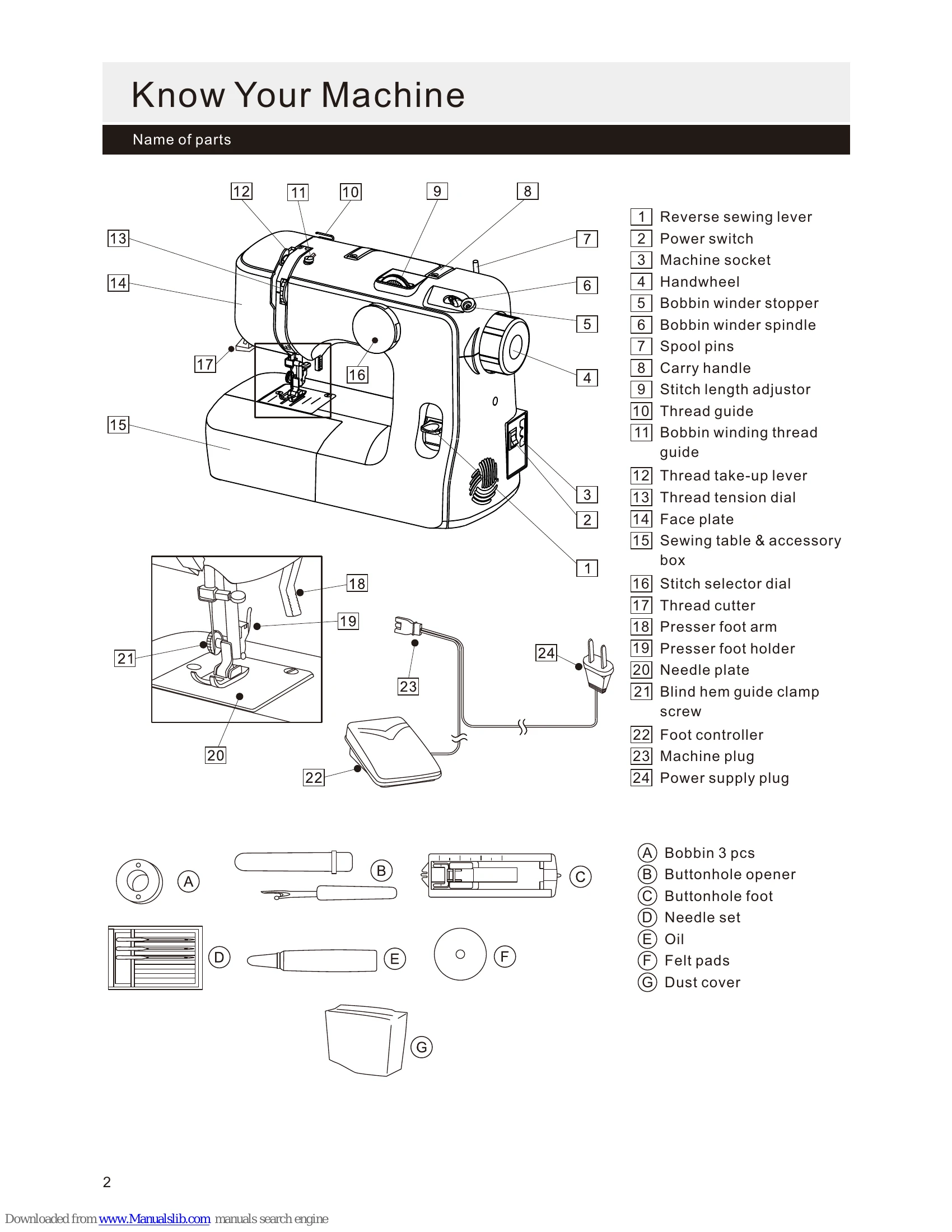

Manual for 110

Preparing To Sew

1. Connecting the machine to power supply: Ensure correct voltage, plug in machine and power supply, then turn on the power switch.
2. Sewing table: Attach for extended surface, remove for free-arm sewing.
3. Presser foot arm: Rates and lowers the presser foot.
4. Changing the presser foot: Remove old foot by pressing holder, attach new foot by aligning pin and groove.
5. Changing the needle: Loosen screw, remove old needle, insert new needle with flat side to the rear, tighten screw.
6. Thread and needle chart: Select needle size based on fabric and thread type.
7. Stitch selector and indicator: Turn dial to select desired stitch.
8. Bobbin winding: Pull out hand wheel, place spool on pin, thread through guides, insert bobbin, wind using foot controller, push hand wheel back.
9. Threading the upper thread: Raise take-up lever, thread through guides, tension area, check spring holder, thread take-up lever, thread guide, and finally the needle.
10. Threading the bobbin case: Remove sewing table, open shuttle cover, remove bobbin case, insert bobbin (thread feeds clockwise), draw thread through slot and tension spring.
11. Inserting the bobbin case: Raise needle, open shuttle cover, hold bobbin case by latch, insert fully, release latch, ensure latch is in notch.
12. Drawing up the bobbin thread: Raise presser foot, hold needle thread, turn hand wheel, bring bobbin thread up, pull both threads under and behind presser foot.
13. Thread tension: Lower thread tension: shake bobbin case suspended by thread to check. Adjust small screw on bobbin case. Upper thread tension: Adjust dial, standard is 3-4.
14. Seam guide line: Numbers on needle plate indicate distance from center needle position.

Basic Sewing

1. Selecting stitch sewing: Ensure needle is above fabric, turn stitch selector dial, adjust thread tension and stitch length.
2. Reverse sewing: Press reverse lever to lock seams or reinforce.
3. Changing sewing directions: Stop machine, needle in fabric, raise presser foot, turn fabric, lower presser foot.
4. Basic Z-stitch: Select 'C', 'D', or 'E', adjust tension and length.
5. Removing the work: Raise thread take-up lever, raise presser foot, draw fabric away.
6. Cutting the thread: Hold threads behind presser foot, guide through thread cutter, press down.

Utility Sewing

1. Overlock stitches: Select 'C', set tension and length.
2. Three-point Z-seam: Select 'J', set tension and length.
3. Blind seam: Select 'K' or 'L', set tension and length.
4. Decorative stitch: Select 'F', 'G', 'H', or 'L', adjust tension.
5. Sewing buttonholes: Attach buttonhole foot, mark fabric, sew sides and bar tacks using specific stitch selector settings.

Care Of Your Machine

1. Changing light bulb: Disconnect power, remove face plate, unscrew old bulb, screw in new bulb, replace face plate.
2. Cleaning shuttle race: Disconnect power, raise needle, open shuttle cover, remove bobbin case, remove shuttle race parts, clean, oil shuttle race.
3. Cleaning the feed dogs: Remove needle and presser foot, remove needle plate, clean feed dogs, replace needle plate.
4. Oiling the machine: Disconnect power, remove face plate, oil indicated points.
