Brand: AEG
Category: Wine Cellars
Document Type: Manual
Language: EN

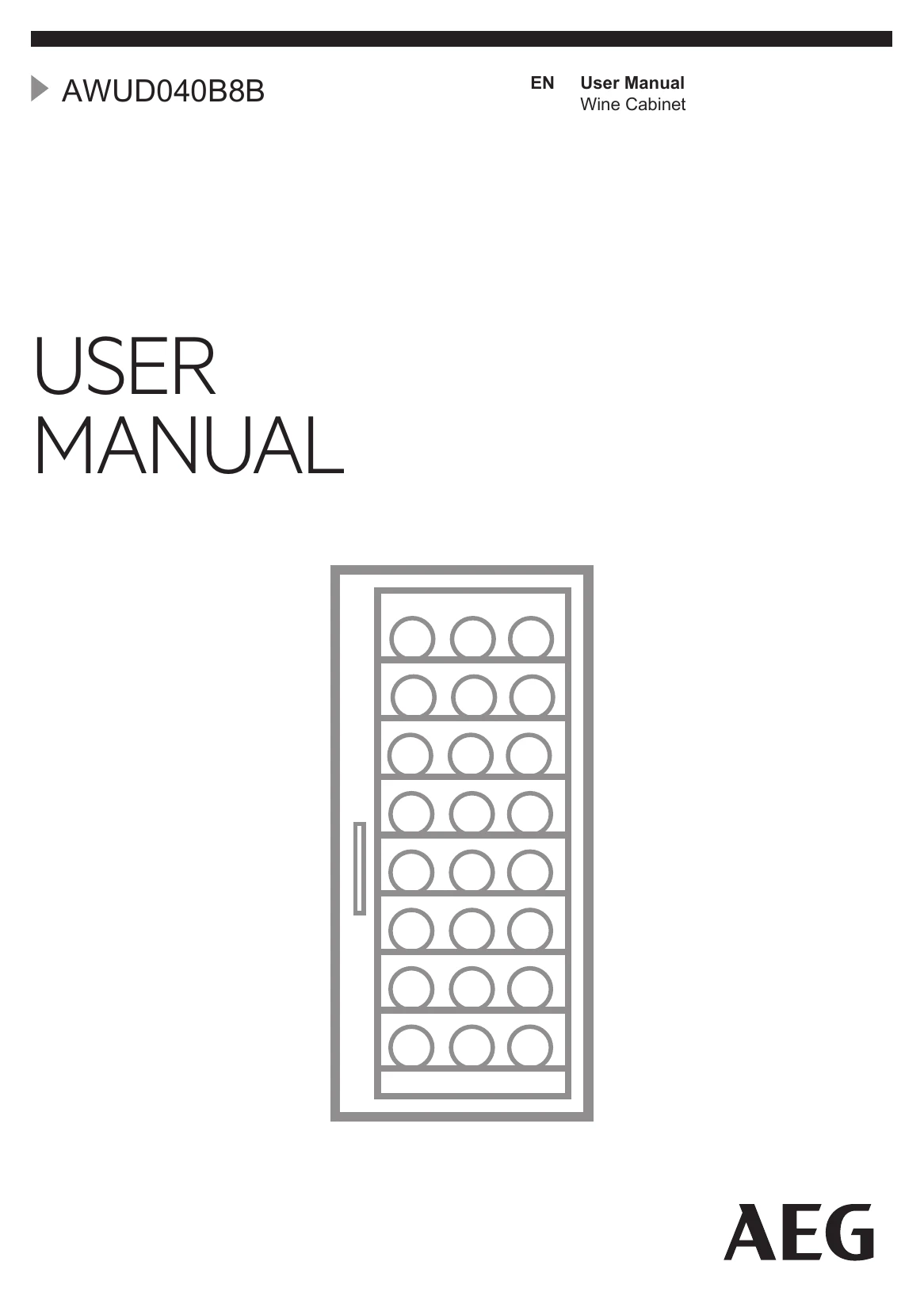

Manual for AWUD040B8B
Uploaded: April 20, 2026, 7:47 p.m.
Operation Summary
This manual provides comprehensive instructions for the AEG AWUD040B8B Wine Cabinet. Key operations include:
- Temperature Regulation: Set desired temperatures for wine storage between +5°C and +20°C, with a default of 12°C.
- Light Setup: Adjust light behavior and brightness (1A-4A for behavior, 1L-9L for brightness).
- Cellaring Mode: Activate a preset 12°C temperature for all compartments.
- Child Lock: Prevent unintentional operation by locking control panel keys.
- Air Filter Reset: Reset the filter indicator after replacing the carbon air filter.
- Mute/Unmute Sounds: Control audible alerts.
- Temperature Units: Switch between °C and °F.
- Demo Mode: Activate to demonstrate appliance features.
- Alarms: Be aware of high and low temperature alarms and the door open alarm.
Daily use involves proper wine storage, shelf management, and filter replacement.
Troubleshooting and error codes
| Problem | Possible cause | Solution |
|---|---|---|
| The appliance does not operate. | The appliance is switched off. | Switch on the appliance. |
| The mains plug is not connected to the mains socket correctly. | Connect the mains plug to the mains socket correctly. | |
| There is no voltage in the mains socket. | Connect a different electrical appliance to the mains socket, to check if electricity is flowing. If not, contact a qualified electrician. | |
| The circuit breaker tripped or a blown fuse. | Turn on the circuit breaker or change the fuse. | |
| The compressor operates continually. | Temperature is set incorrectly. | Refer to the "Operation" chapter. |
| The room temperature is too high. | Refer to the "Installation" chapter. | |
| The door is opened too often. | Do not keep the door open longer than necessary. | |
| The door is not closed correctly. | Refer to the "Closing the door" section. | |
| The light does not work. | The light is turned off. | Turn on the light. Refer to the "Light setup" section. |
| The appliance is not plugged in. | Connect the appliance. | Connect the appliance. |
| The circuit breaker tripped or a blown fuse. | Turn on the circuit breaker or change the fuse. | |
| The lamp is defective. | Contact the service. | Contact the service. |
| The light button is not operating. | Contact the service. | Contact the service. |
| Too much vibration. | The appliance is not supported properly. | Check if the appliance stands stable. |
| The appliance is noisy. | The appliance is not supported properly. | Check if the appliance stands stable. |
| Water flows on the rear plate of the appliance. | During the automatic defrosting process, frost melts on the rear plate. | This is correct. |
| Water flows inside the wine cabinet. | The appliance drains are clogged | Clean the appliance drain holes Refer to the "Cleaning the drain" section. |
| Products prevent that water flows into the water collector. | Make sure that products do not touch the rear plate. | |
| The temperature in the wine cabinet is too low or too high. | The temperature regulator is not set correctly. | Set a higher or lower temperature. |
| The door is not closed correctly. | Refer to the "Closing the door" section. |
