Manual for 1338mt
Uploaded: Aug. 9, 2025, 11:37 p.m.

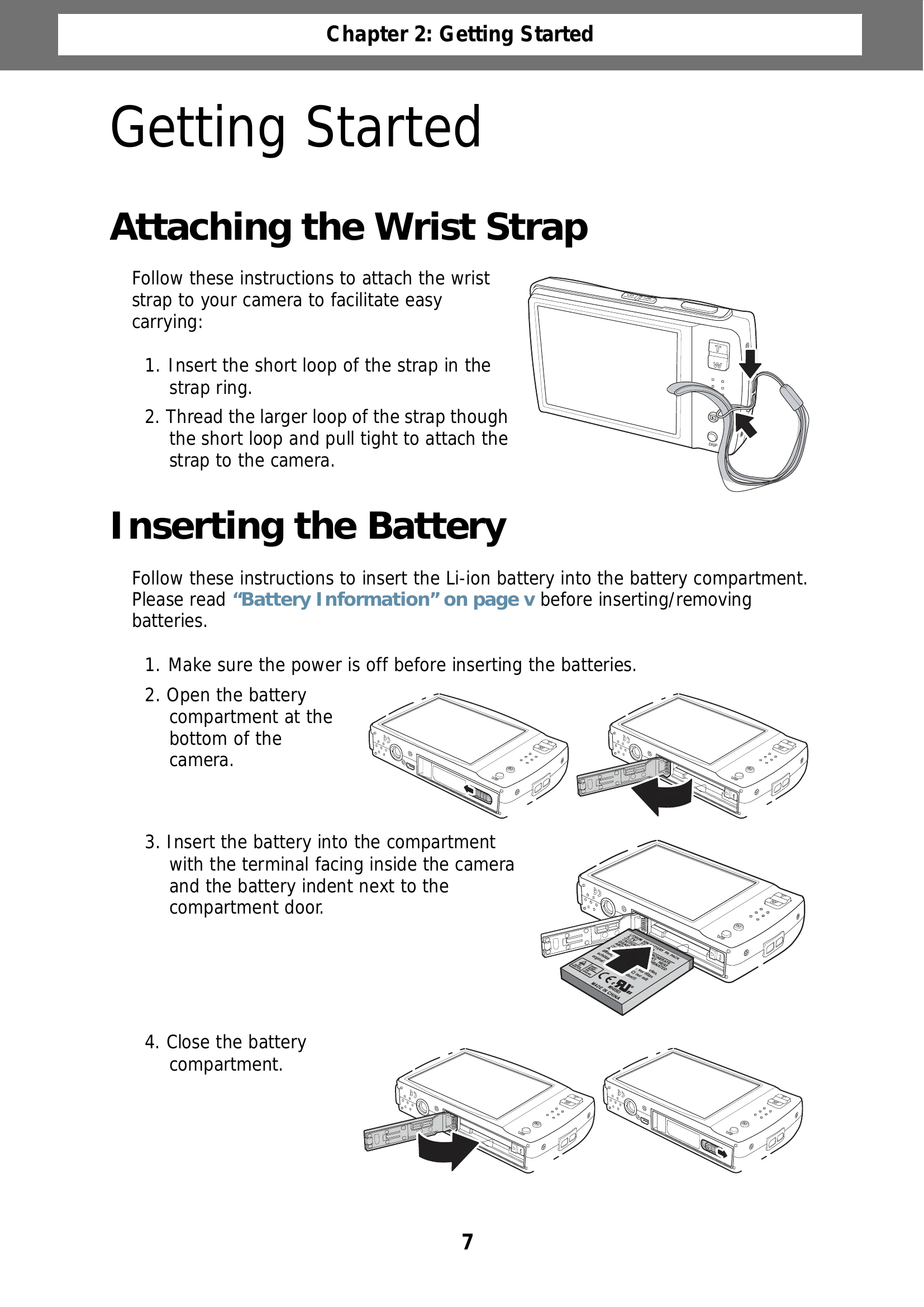

Attaching the Wrist Strap: Thread the strap through the camera's strap ring, then loop it back on itself and pull tight.
Inserting the Battery: Open the battery compartment, insert the Li-ion battery correctly, and close the compartment.
Inserting an SD/SDHC Memory Card: Open the battery compartment, insert the card into the memory card slot with the metallic part facing forward, push until it clicks, and close the compartment.
Charging the Battery: Insert the battery into the charger, connect the power cord to the charger and then to the outlet. Charging takes 2 hours.
Turning Power On/Off: Press and hold the Power button for 0.3 seconds to turn on. Press the Power button to turn off.
Initial Settings: Upon first power-on, follow on-screen prompts to set language, date, and time.
Modes: Switch between Record mode (for photos/videos/audio) and Playback mode (for viewing/editing).
Inserting the Battery: Open the battery compartment, insert the Li-ion battery correctly, and close the compartment.
Inserting an SD/SDHC Memory Card: Open the battery compartment, insert the card into the memory card slot with the metallic part facing forward, push until it clicks, and close the compartment.
Charging the Battery: Insert the battery into the charger, connect the power cord to the charger and then to the outlet. Charging takes 2 hours.
Turning Power On/Off: Press and hold the Power button for 0.3 seconds to turn on. Press the Power button to turn off.
Initial Settings: Upon first power-on, follow on-screen prompts to set language, date, and time.
Modes: Switch between Record mode (for photos/videos/audio) and Playback mode (for viewing/editing).
Troubleshooting and error codes
| Problem | Cause and/or Action |
|---|---|
| Camera does not turn on. | The batteries may be exhausted. Charge or replace the batteries. |
| Camera turns off | Press any button except the Power button to turn on the camera. |
| LCD turns blank. | Press any button except the Power button to turn on the camera. |
| Empty battery icon is displayed on the LCD, then the camera turns off. | Batteries are exhausted, please replace or recharge. |
| LCD screen displays 'No image'. | The image file on the memory card. Image file format may not be supported. |
| LCD screen displays 'Not available for this | Function is only available for specific file types. File format is not supported. |
| LCD screen displays 'Memory full'. | Memory card is full. Replace the memory card with a new one or delete unnecessary images. |
| LCD screen displays 'File locked' | This file is locked. Unlock the file. See "Protecting/ Unprotecting Files" on page 48. |
| LCD screen displays 'Card locked'. | The memory card is protected. Remove the card and slide the write-protect switch to its unlock position. |
| LCD screen displays 'Format error'. | The memory card is protected. Remove the card and slide the write-protect switch to its unlock position. |
| LCD screen displays 'Copy error'. | The memory card is protected. Remove the card and slide the write-protect switch to its unlock position. The memory card is full. Replace card or delete unnecessary files. |
| No image displays on the TV screen | Incorrect TV-out type was selected. Set the correct TV-out type to match your TV system. |
