Manual for AGFAMATIC 100

Manual for AGFAMATIC 100

Brand: Agfa

Category: Camera

Document Type:

Language: EN

Uploaded: Aug. 9, 2025, 11:36 p.m.

Warranty Information

No warranty information is available in this manual.

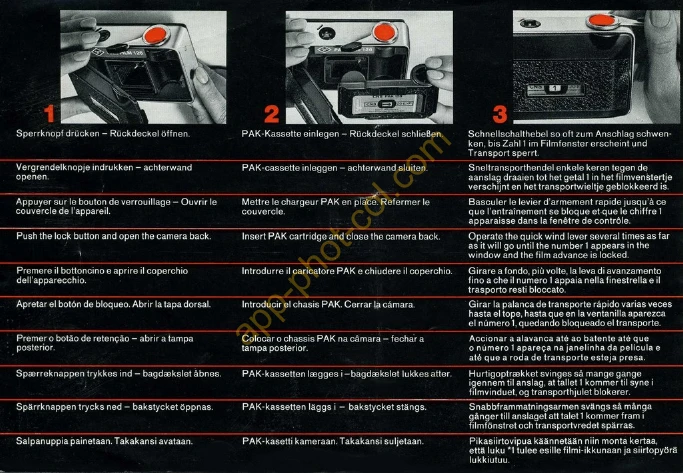

Loading the Film:
  1. Press the lock button and open the camera back.
  2. Insert the PAK cartridge and close the camera back.
  3. Operate the quick wind lever several times as far as it will go until number 1 appears in the window and the film advance is locked.
Taking Photos:
  1. Set the camera to 1/80 sec for sunny weather or 1/40 sec for overcast or shade.
  2. The viewfinder shows the correct picture area. Shooting range: 1.20m to infinity.
  3. Release shutter by pressing the red Sensor spot.
Flash Photography:
  1. Insert X flashcube firmly.
  2. Shutter speed for flash is automatically set to 1/40 sec.
  3. Flash range: 1.50 to 3m.
After Shooting:
  1. When the bulb is burned, a red signal appears in the viewfinder.
  2. The flashcube turns automatically as the film is advanced.
  3. To remove the cartridge: operate quick wind lever until it locks, open camera back, and take out the cartridge.

Troubleshooting and error codes

Problem Possible Cause Solution
Red signal in viewfinder Flash bulb burned Replace flash bulb.
