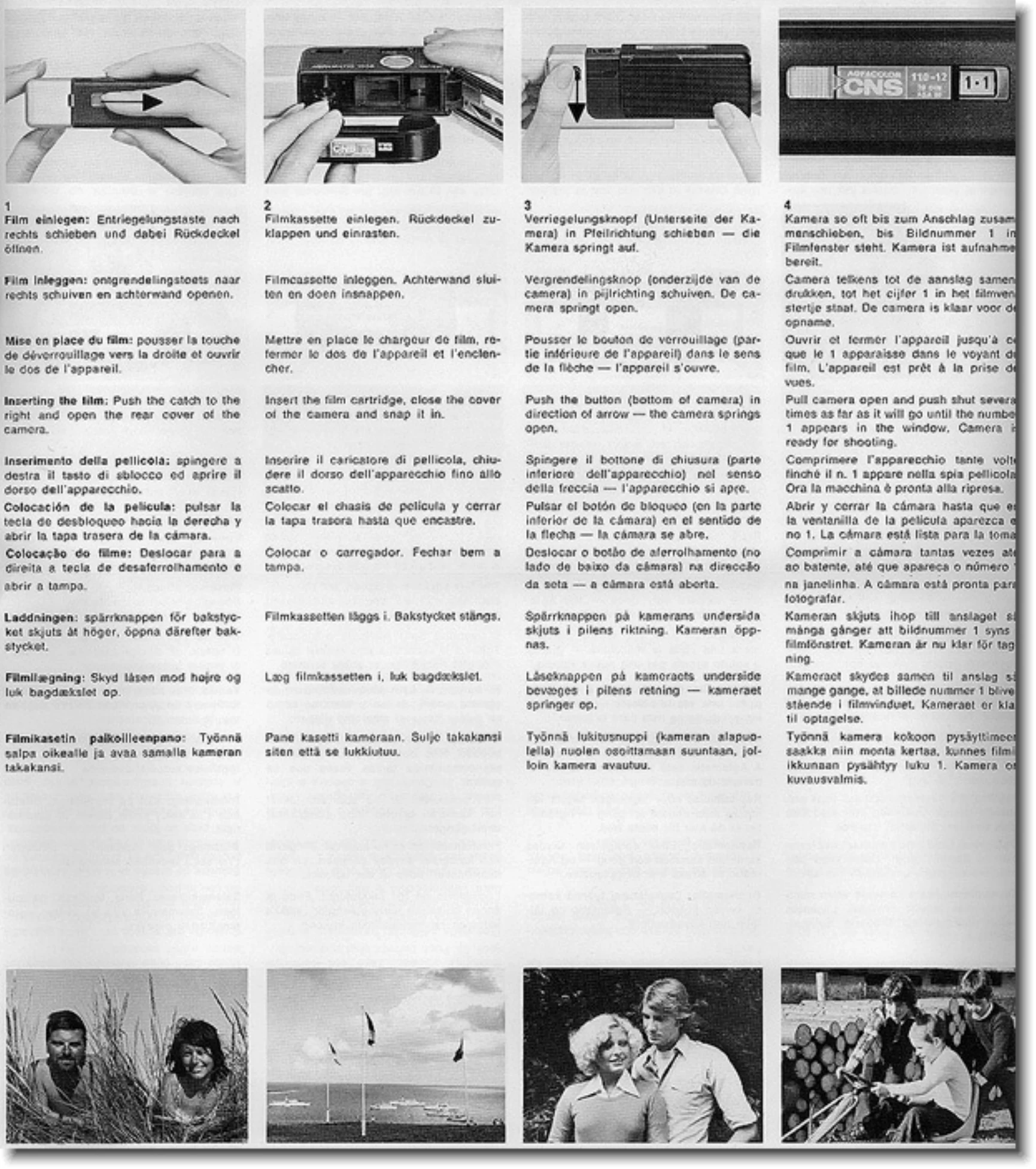

Loading the Film:

  1. Push the catch to the right and open the rear cover.
  2. Insert the film cartridge and close the cover until it snaps in.

Opening the Camera:

  1. Push the button on the bottom of the camera in the direction of the arrow.

Readying the Camera for Shooting:

  1. Pull the camera open and push shut several times until the number 1 appears in the window.

Using the Lenses:

  1. Push the key to the right for the normal lens (1.20m-infinity).
  2. Push the key to the left for the telephoto lens (1.50m-infinity).

Taking a Picture:

  1. Hold the camera to your eye, aim at the subject, and press the red sensor.

Repitomatic Function:

  1. After shooting, open and close the camera once for it to be ready again.

Flashing:

  1. Attach the topflash. The flash synchronization speed is set automatically.
  2. After four flash exposures, turn the topflash over for four more bulbs.
  3. Flash range is 1.50m to 3m.

End of Film:

  1. Advance film until the /// markings appear. Remove cartridge, push camera shut, and lock it.
