Brand: Agfa
Category: Camera
Document Type:
Language: EN

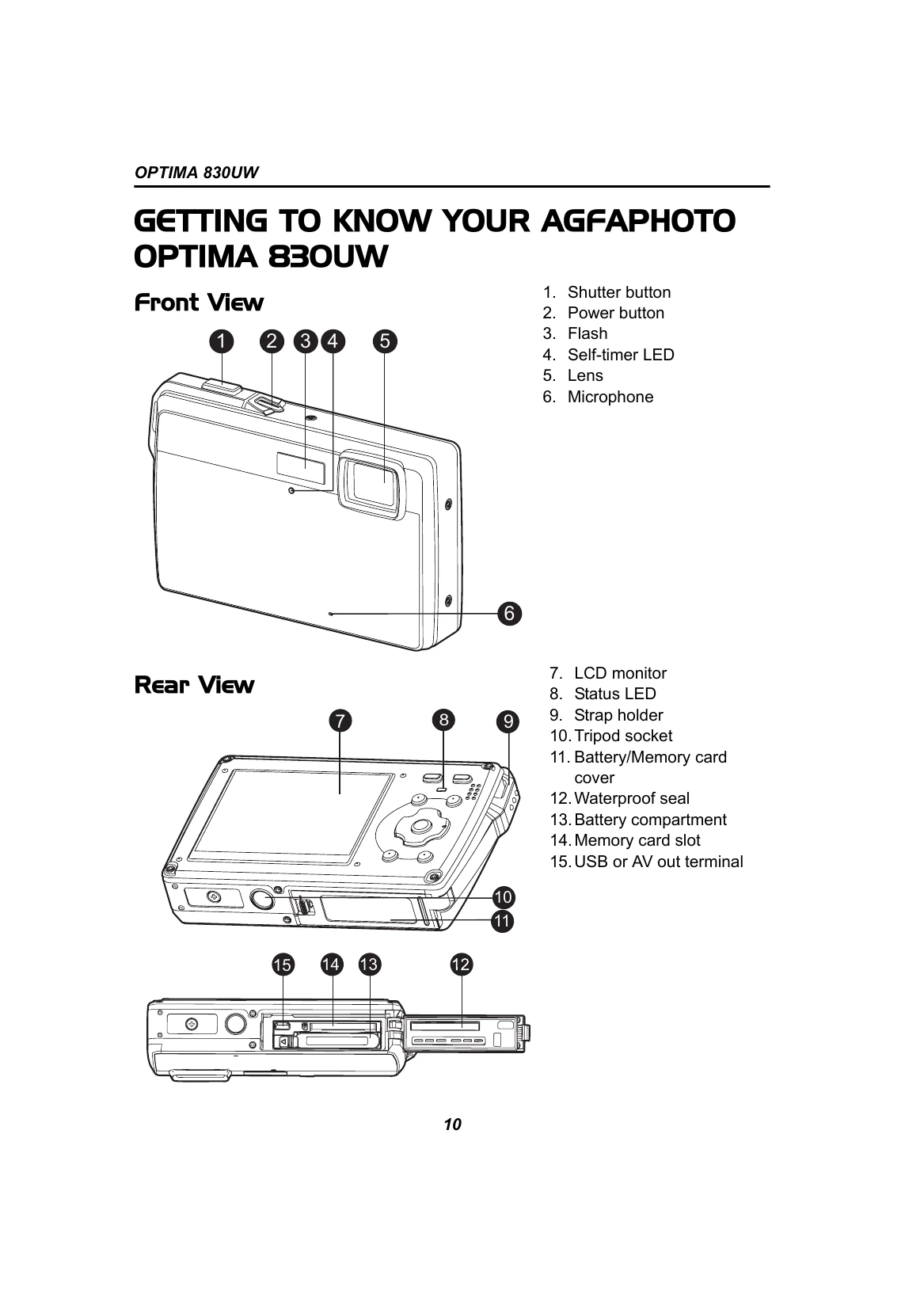

Manual for OPTIMA 830UW
Uploaded: Aug. 9, 2025, 11:35 p.m.
Warranty Information
Contact distributor or manufacturer for service, support, and warranty information.
- Getting Started: Attach camera strap, open battery/memory card cover, insert battery and optional SD/SDHC memory card, format card if necessary, and close cover securely.
- Charging the Battery: Insert battery into charger, connect power cord, and plug into wall outlet. Status LED indicates charging status. Remove battery after charging is complete.
- Initial Settings: Set date and time by toggling MODE, pressing MENU, navigating to Setup, selecting Date/Time, and adjusting values. Choose language and format memory card or internal memory via the Setup menu.
- Capturing Images: Turn on camera, toggle MODE to capture mode, compose image on LCD, press shutter button halfway to focus, and fully to capture. Smile detection and face detection features are available.
- Video Mode: Toggle MODE to video mode. Set video size, quality, color, audio, and digital zoom in the Video Menu.
- Playback Mode: Toggle MODE to playback mode. Use Playback Menu to fix red-eye, create slide shows, manage DPOF settings, protect images, add voice memos, resize, change quality, or copy to card.
- Setup Menu: Adjust camera settings like Date/Time, Language, Auto Off, Beep, Display, Video Out, Light Frequency, LCD Brightness, Format, Media Info, System Info, and System Reset.
- Transferring Files: Connect camera to computer via USB, turn on camera, select PC mode, and copy files.
- PC Camera Usage: Install PC camera driver, connect camera via USB, select PC Camera mode, and launch videoconferencing software.
- Editing Software Installation: Insert provided CD-ROM and follow on-screen instructions to install included software like ArcSoft MediaImpression, Print Creations, and ArcSoft Panorama Maker.
Troubleshooting and error codes
| Symptom | Cause | Solutions / Corrective Actions |
|---|---|---|
| The power does not come on. | The battery is not inserted. The battery is exhausted. |
Insert the battery correctly. Recharge the battery. |
| The battery runs out quickly. | The battery is not fully charged. The battery is not used for an extended period of time after being charged. |
Fully charge the battery and discharge it for at least one complete cycle before use to maximize its performance and lifetime. |
| The battery or camera feels warm. | Long period of continuous use of the camera or the flash. | - |
| Even if I press the shutter button, the camera does not take a picture. | The shutter button is not pressed all the way down. The memory card does not have any free capacity. The memory card is write-protected. |
Press the shutter button all the way down. Insert a new memory card, or delete unwanted files. Remove the write-protection. |
| The camera cannot operate normally while underwater. | A temporary malfunction has occured. | Long press the power button to turn off the camera. Turn the camera on again. |
| Images do not appear on the LCD monitor. | LCD monitor is dark. | Adjust the brightness of the LCD monitor in the menu. |
| The LCD monitor suddenly becomes blurry underwater. | The camera is subjected to an accidental shock. | Turn off the camera and turn it on again. |
| Although the camera is set to auto focus, it does not focus. | The lens is dirty. The distance to the subject is smaller than the effective range. |
Wipe clean with a soft, dry cloth or lens paper. Get your subject within the effective focus range. |
| The contents on the memory card cannot be played back. | You played back a memory card that was not formatted by this camera. | Insert a memory card that was formatted on this camera. |
| Files cannot be deleted. | The file is protected. | Cancel protection. |
| Even when the camera's buttons are pressed, it does not operate. | The memory card is write-protected. The battery is running low. |
Remove the write-protection. Recharge the battery. |
| The date and time is wrong. | The correct date and time is not set. | Set the correct date and time. |
| Cannot download images. | The free space on the hard disk in your computer may be insufficient. No power supply. |
Check whether the hard disk has space for running Windows, and if the drive for loading image files has a capacity at least that of the memory card inserted in the camera. Recharge the battery. |
