Brand: Apricot

Category: Computer

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 6:29 p.m.

Manual Publish Date: 1996-01-01

Warranty Information

None

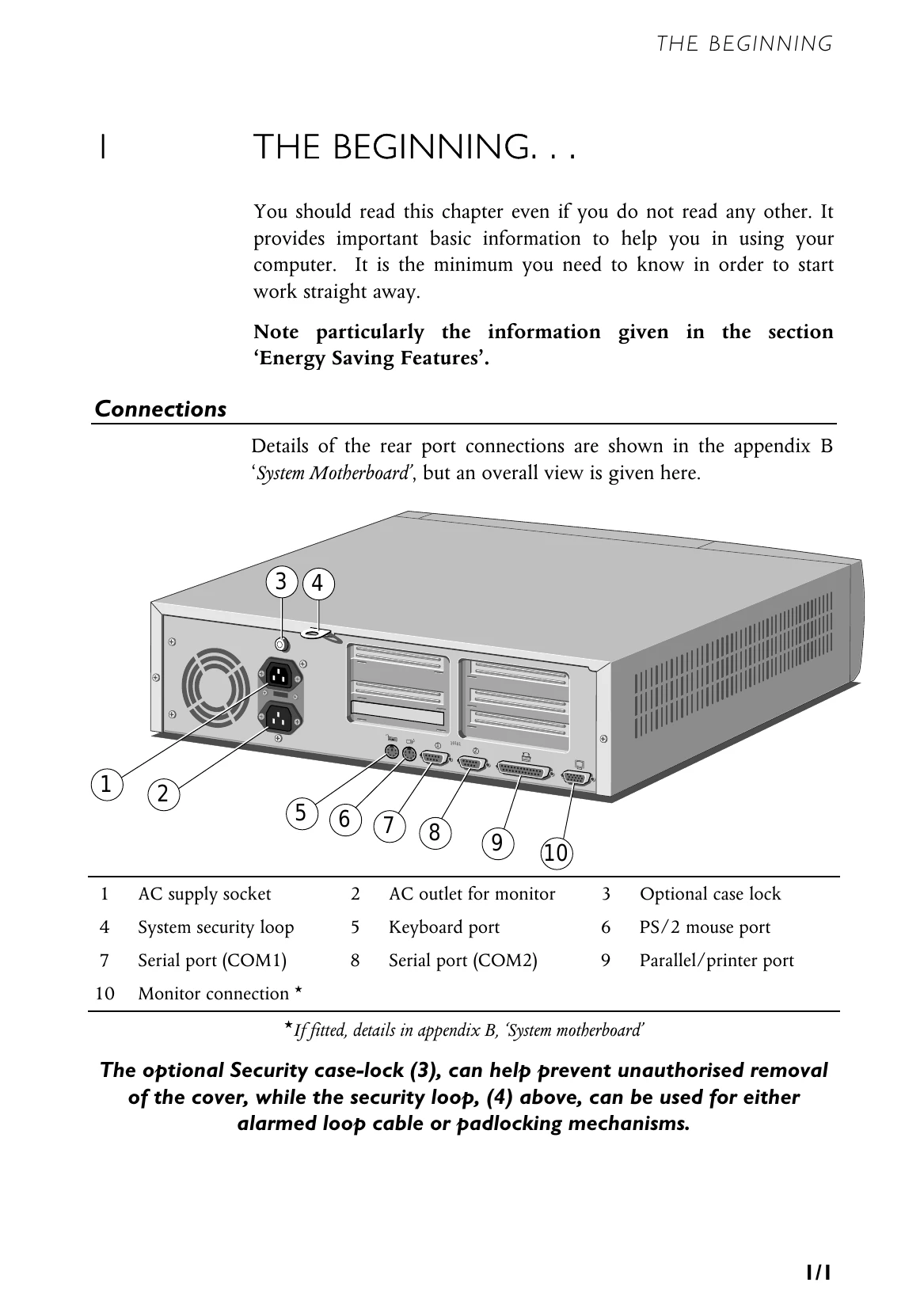

The Beginning

  • Turning on and booting: Press the POWER button. The system performs a power-on self-test (POST). It then attempts to boot from a floppy disk or hard disk.
  • Energy saving features: The system enters a low power mode if left unattended. A flashing light on the purple button indicates this mode. Move the mouse or press a key to resume.
  • Turning off: Quit all applications and save work. Close Windows. Turn off peripherals. Press the POWER button to turn off the computer. Wait 5 seconds before turning it on again.
  • Cleaning and Transporting: Use a soft, damp cloth for cleaning. Avoid solvents and sprays. Handle with care, especially the hard disk, and back up data before moving. Use original packing materials for long-distance transport.

The System Drives

  • Floppy disk drive: Used for 1.44 Mbyte disks. Keep disks away from dust, sunlight, and magnetic fields. Insert disks with the metal window first, label side up.
  • CD-ROM drive: Used for multimedia data and audio CDs. Has a headphone jack. Insert CDs face up and press the EJECT button.
  • Hard disk drives: Store large amounts of data. Handle the computer with care, especially when powered on, to avoid damaging the drive surface.

Troubleshooting and error codes

Code Cause Code Cause
0 Keyboard locked 301 Keyboard data line failure
101 Timer tick interrupt failure 301 Keyboard stuck key failure
102 Timer 2 test failure 303 Keyboard controller failure
106 Diskette controller failure 604 Diskette drive 0 failure
110 System board memory parity interrupt 604 Diskette drive 1 failure
114 Option ROM checksum failure 605 Diskette unlocked problem
151 Real time clock failure 662 Diskette drive configuration
161 Real time clock battery failure 762 Coprocessor configuration
162 CMOS RAM checksum failure 962 Parallel configuration
162 Invalid configuration information 1162 Serial configuration
163 -preboot 1762 Hard disk configuration
164 Memory size does not match CMOS 1780 Fixed disk 0 failure
165 Add/remove MC card 1781 Fixed disk 1 failure
166 Memory configuration change 1782 Fixed disk 2 failure
175 Bad EEPROM CRC #1 1783 Fixed disk 3 failure
176 System tampered 1800 No more IRQ available
177 Bad PAP checksum 1801 No more room for option ROM
178 EEPROM is not functional 1802 No more I/O space available
183 PAP update required 1803 No more memory <1Mb available
184 Bad POP checksum 1804 No more memory >1MB available
185 Corrupted Boot sequence 1805 Checksum error or 0 size option ROM
186 Hardware problem 1806 PCI-PCI bridge error
187 VPD S/N not set 1962 No bootable device
188 Bad EEPROM CRC #2 2400 Display adapter failed ; using alternate
189 Excessive password attempts 2462 Video configuration
201 Base memory error 5962 IDE CD-ROM configuration
229 External cache failure 8601 Pointer device failure
301 Keyboard failure 8603 Pointer device has been removed
301 Keyboard clock line failure
