Manual for KM

Basic Operation: ASAHI PENTAX KM

This manual provides detailed information on the ASAHI PENTAX KM camera, covering exploded illustrations, wiring diagrams, and a comprehensive list of service parts. It details the assembly and function of various components, from the body and lens mount to the shutter mechanism and electronic systems. The manual is intended for service technicians and those who need to understand the internal workings of the camera for repair or maintenance.

Key sections include:

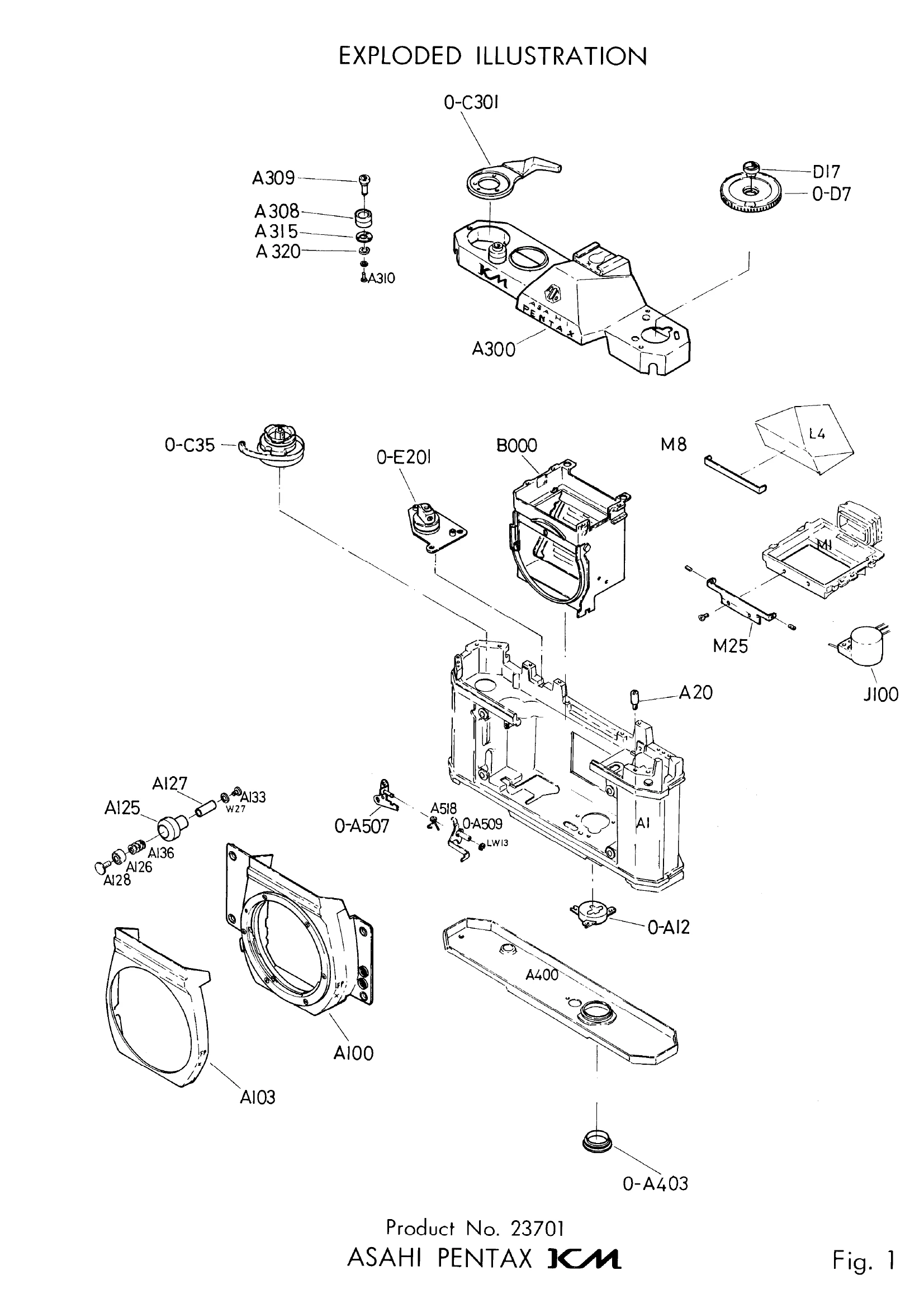

• Exploded Illustrations: Visual breakdown of camera components.
• Distributing Wires: Diagrams showing the internal wiring.
• List of Service Parts: Detailed catalog of all replaceable parts with part numbers and interchangeability information. This list is extensive, covering mechanical, electrical, and body components.

Users can refer to specific part numbers and descriptions for accurate identification and ordering.
