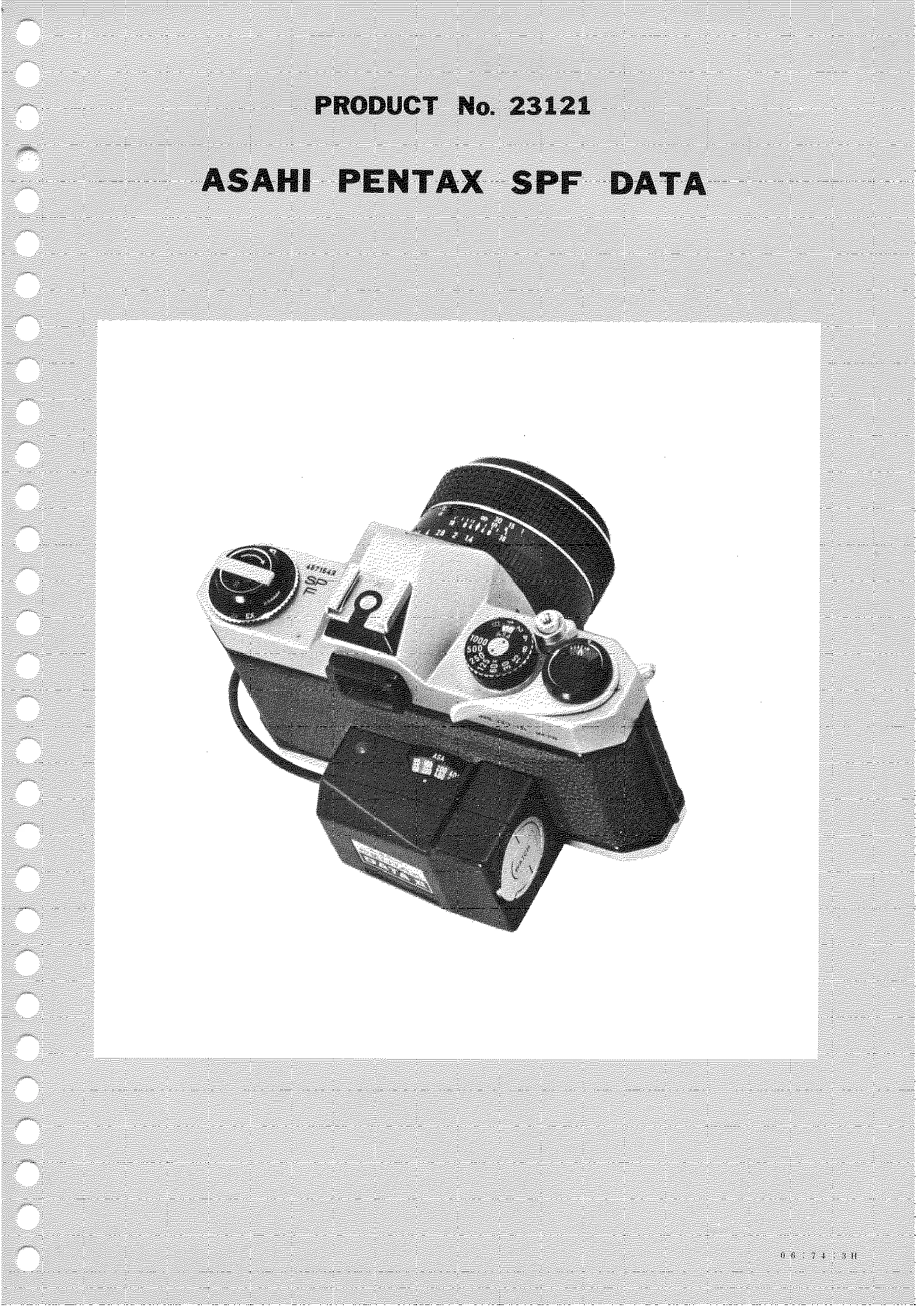

Manual for 23121
Uploaded: Aug. 9, 2025, 11:47 p.m.
The manual provides an exploded illustration and a list of service parts for the ASAHI PENTAX SPF camera. It details various assemblies like the body proper, back cover, hinge, and pressure plate, along with their respective part numbers and interchangeability. The document also notes that parts not listed are common with the ASAHI PENTAX SPF (Product No. 23110).
Troubleshooting and error codes
| Parts No. | Description | Quantity | Interchangeability |
|---|---|---|---|
| 0-A1 | Body proper assembly (A1, A130, A131) |
1 | |
| 0-A2 | Back cover assembly (A2, A7, A10-01, A11-01, A39-01x2, A43x2, A45x2, A47x2, A58, A79, A80, A85-01, A86-01, A150) |
1 | |
| 0-A13-02 | Hinge assembly (A13-02, A14, A174, A175, A176, A177, A178) |
1 | 23114-0-A13 |
| 0-A15 | Pressure plate assembly (A15, A21-02, A47x2) |
1 | 223115-0-A15 |
| C113 | Back cover release indicator | 1 | 23114-C113 |
