Manual for MX
Uploaded: Aug. 9, 2025, 11:47 p.m.

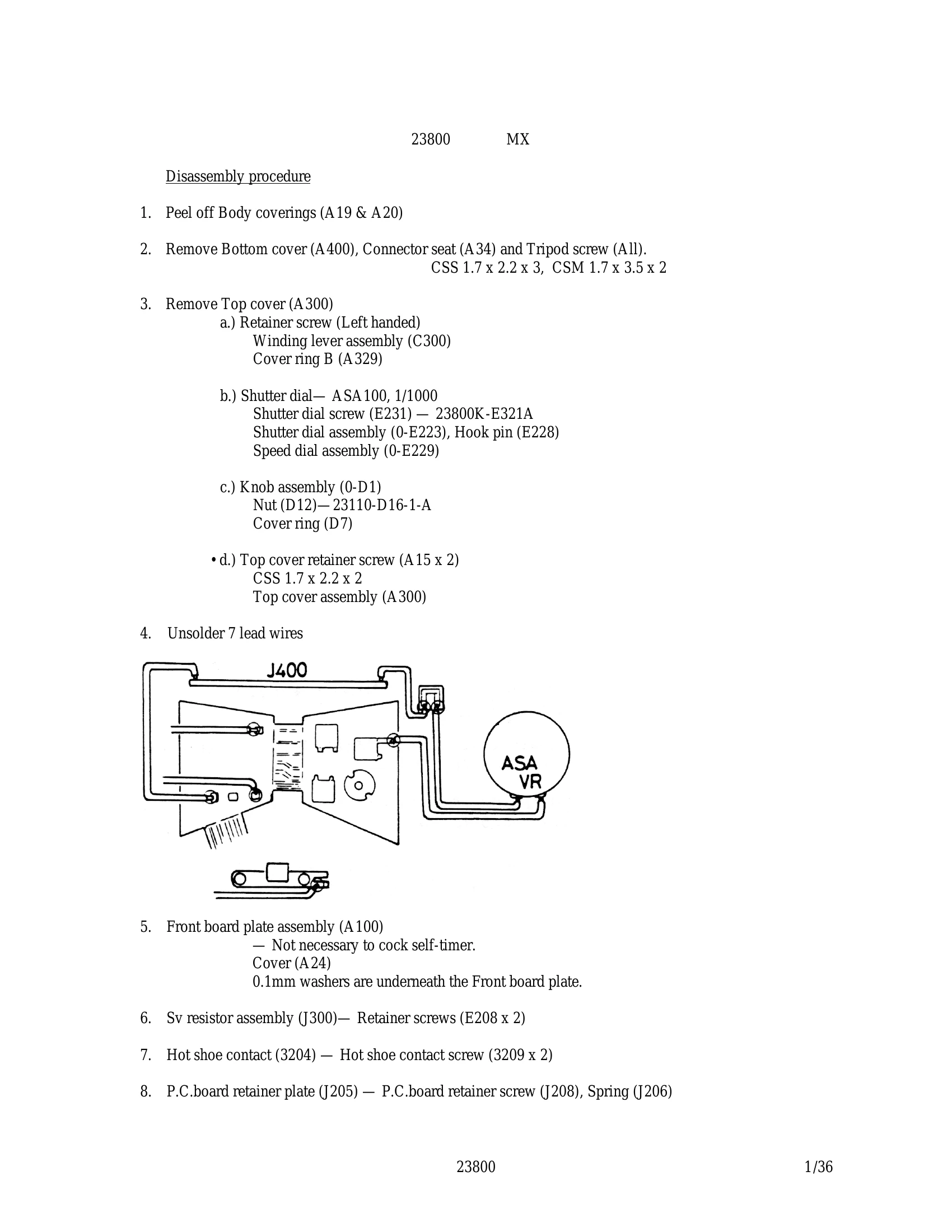

This manual provides detailed disassembly and assembly procedures for the ASAHI PENTAX MX camera. It includes step-by-step instructions for removing and reassembling various components such as the top cover, bottom cover, mirror housing, shutter curtains, and electronic parts. The manual also details procedures for adjustments like shutter speed, light measurement, and focusing. Exploded illustrations and parts lists are included to aid in identification and replacement of components. Specific instructions and cautions are provided for delicate operations to ensure correct assembly and functionality.
Troubleshooting and error codes
| Description | Position of use | Quantity |
|---|---|---|
| Set T 1.2 x 2 | M62, M67 | 1 |
| Set T 1.4 x 1.8 | E402, E401 | 2 |
| Set T 1.7 x 2.2 | E40, E41 | 2 |
| Set F 1.4 x 2.5 | E129,E137 | 1 |
| Set F1.7 x 3.5 | A1 | 1 |
| CNS 1.4 x 1.4 | E113, E120 | 2 |
| CNS 1.4 x 1.6 | A506, A501 1E3, E37 |
1 2 |
| CNS 1.4 x 2 | G100, G201 | 1 |
| CNS 1.7 x 1.5 | A17, A1 | 2 |
| CNS 1.7 x 1.6 | C202, C201 | 2 |
| CNS 1.7 x 1.8 | C17,A 1 | 2 |
| CNS 1.7 x 2 | A112, A101 D8, A1 J531, B1 L3M1 |
2 3 2 2 |
| CNS 1.7 x 2.5 | A135, A101 A8, A1 M51, B1 C202, A1 J621, A1 C201, A1 |
2 2 2 1 2 1 |
| CNS 1.7 x 3.5 | B89, B1 | 4 |
| CNM 1.4 x 2.5 | D6, D1 | 2 |
| CNM 1.7 x 2 | A61, A1 A25, A1 C100, A1 |
2 2 1 |
| CNM 1.7 x 2.5 | C201, A1 M62, A5, A1 J612, A1 J501, A41, A1 |
1 2 1 1 |
| CNM1.7 x 3 | A35, A1 H100, A1 C101, A1 |
1 1 1 |
| CNM 1.7 x 4 | B1, A1 | 2 |
| CNM 2 x 9 | H100, A1 | 1 |
| CSS 1.4 x 3 | A143, A125 | 3 |
| CSS 1.7 x 2 | B11, B1 | 2 |
| CSS 1.7 x 2.2 | A401, A1 A301, A1 B103, B1 A508, A1 |
3 2 2 2 |
| CSS 1.7 x 2.5 | B9, B1 E201, A1 E201, C7 |
2 2 1 |
| CSS 1.7 x 2.8 | A202, A1 | 4 |
| CSS 1.7 x 3 | A2, A3, A4, A1 A302, A301 C26, C101 E40, A1 |
2 2 1 2 |
| CSS 1.7 x 6.5 | A302, A301 | 2 |
| CNM 1.7 x 3.5 | A11, A1 | 2 |
| T-CSM 1.4 x 3.5 | C304, C301 | 1 |
| CNL-B 1.4 x 1.5 | B107, B1 M53, B51 |
2 2 |
| CNL-B 1.4 x 2 | M85, E209 C241, C206 |
1 1 |
| CNL-D 1.4 x 1.6 | E135, C6 A515, A504 C134, C101 |
1 1 1 |
| CNL-D 1.4 x 2 | C142, C101 A504, A501 |
1 2 |
| CNL-D 1.4 x 2.5 | A502, A501 | 1 |
| CNL-D 1.4 x 3 | J501, M75 | 1 |
| CNL-D 1.4 x 3 | B15, B20 B46, B45 B79, B74 |
1 1 1 |
| CNL-D 1.7 x 2 | B83, B1 | 1 |
| CNL-D 1.7 x 2.5 | M12, B1 M13, B1 |
1 1 |
| CNL-D 1.7 x 3 | J521, A1 | 2 |
| CNL-D 1.7 x 4 | J403, J401, A101 | 2 |
| CNL-E 1.7 x 2.5 | C249, C210 | 1 |
| CNL-E 1.7 x 3.5 | A127, A123 | 1 |
| CNL-F 1.7 x 1.8 | C264, C205 | 1 |
| CNL-F 1.7 x4 | J201,B1 | 2 |
| CRSS 1.4 x 1.6 | E229, E230 | 3 |
