Installation Guide for AVA QUAD CAMERA

Basic Operation Summary

This guide covers the installation of the Avigilon AVA QUAD CAMERA. It details various mounting options, including ceiling, in-ceiling, pendant, wall, pole, and corner mounts. The process involves preparing the camera, selecting the appropriate mounting option, physically installing the mount, attaching the camera, and completing the installation by adjusting image orientation and securing the unit.

Key steps include:

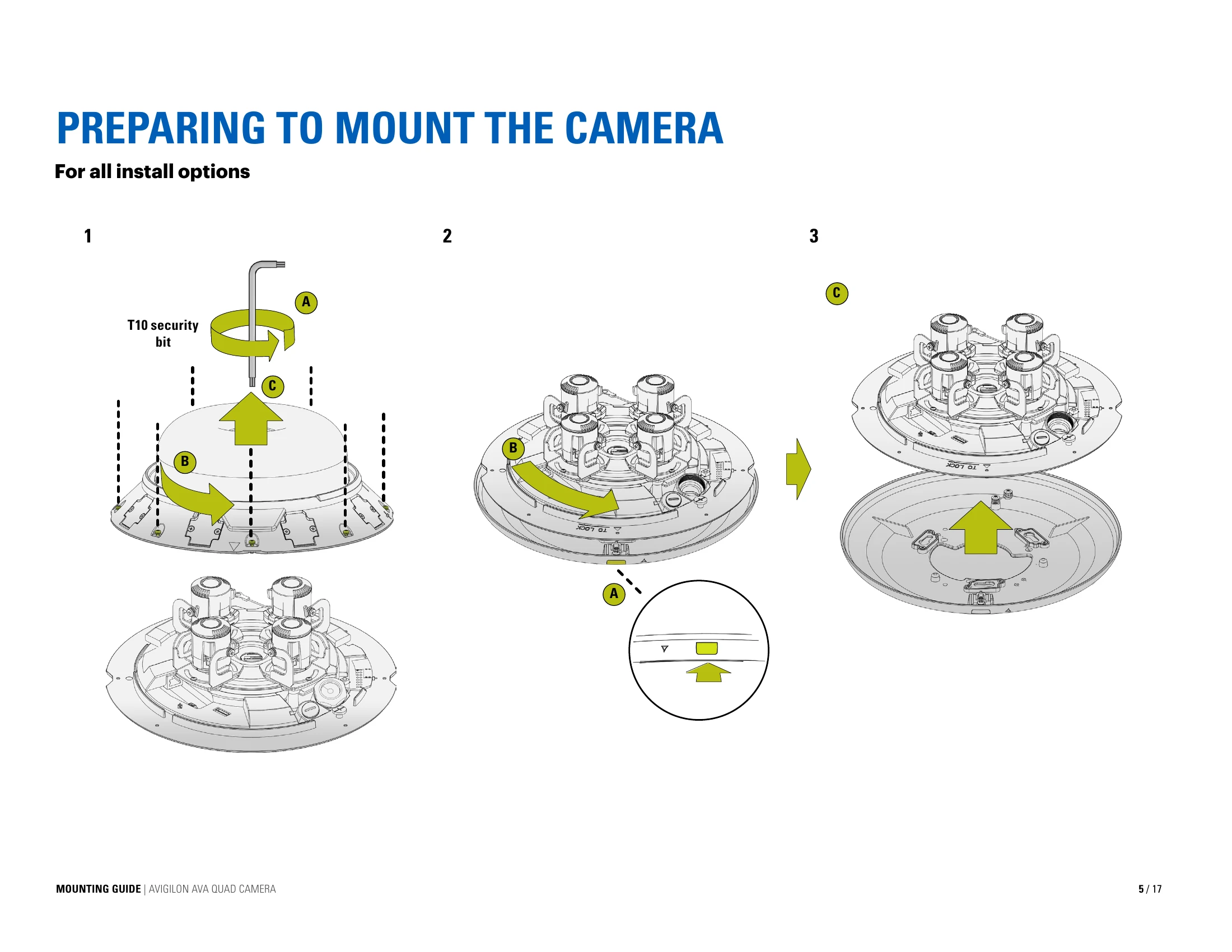

• Preparing the camera by removing the dome cover and accessing internal components.
• Selecting and installing the chosen mounting bracket.
• Connecting the Ethernet cable and ensuring proper sealing for outdoor installations.
• Attaching the camera to the mounting plate and securing it.
• Adjusting the camera's image orientation using the Avigilon Alta Aware software.
• Finalizing the installation by reattaching the dome cover and performing any necessary locking procedures.
