Manual for STIM-PRO Comfort
Uploaded: April 20, 2026, 7:39 p.m.
Warranty Information
The device comes with a 24-month warranty covering spare parts and labor, excluding damage from misuse.

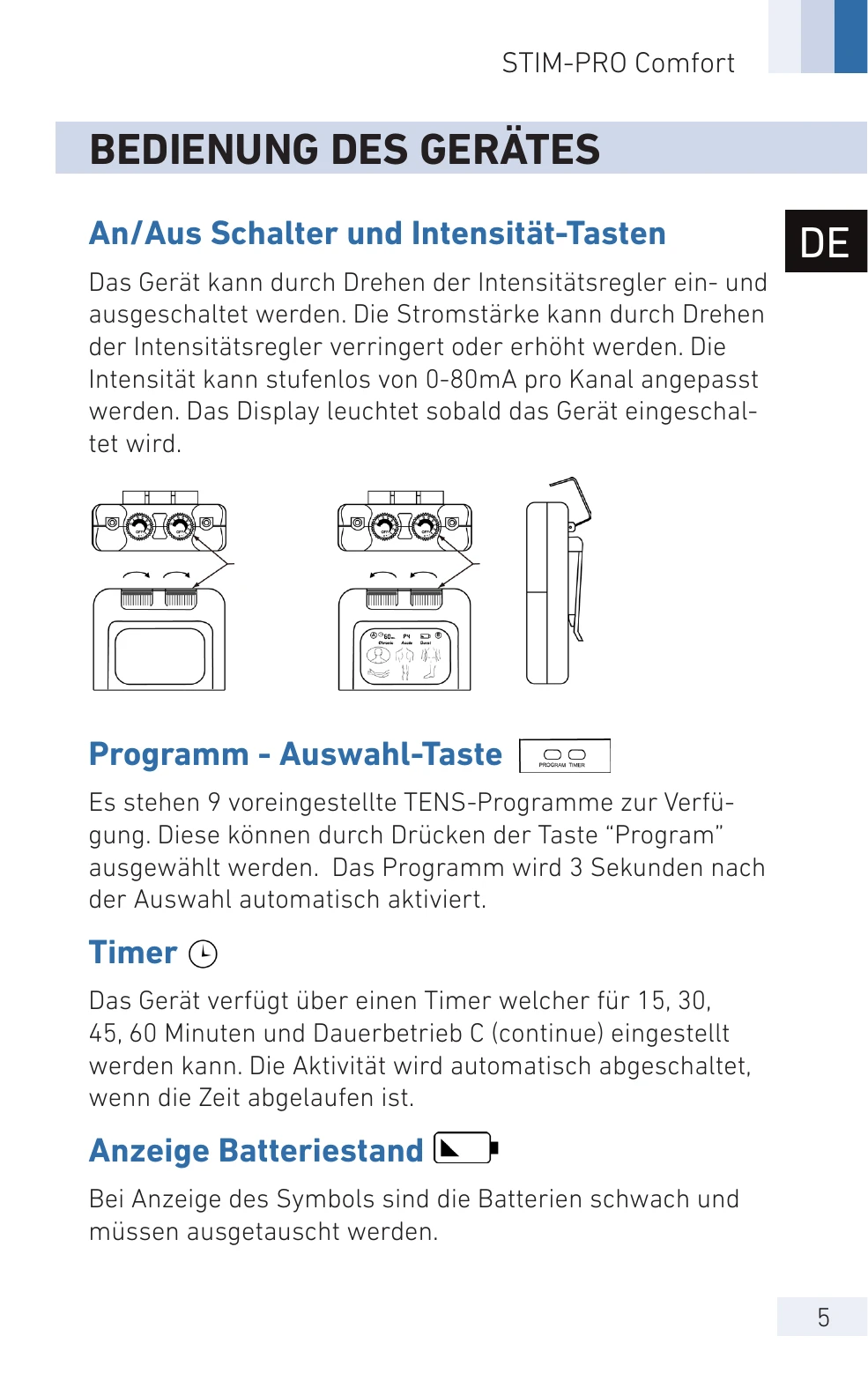

Power On/Off and Intensity: Turn the intensity controls to switch the device on/off and adjust intensity from 0-80mA. Display lights up when on.
Program Selection: Press the "program" button to choose from 9 pre-set TENS programs. The selected program activates automatically after 3 seconds.
Timer: Set the timer for 15, 30, 45, 60 minutes, or continuous mode (C). The device auto-shuts off when the timer expires.
Low Battery Indicator: A symbol indicates a low battery, requiring replacement.
Troubleshooting and error codes
| Problem: Device not functioning correctly. | Solution: Check cables and connections. Ensure all plugs are properly connected. |
| Problem: Display not turning on. | Solution: Replace batteries. |
| Problem: Cable is externally damaged. | Solution: Replace the cable immediately with original accessories. |
| Problem: No current flow. | Solution: Check if both electrodes are connected to the same channel and if the intensity is sufficient. |
