Manual for APOLLO

Name: Manual for APOLLO
Brand: be cool
Availability: InStock

Brand: be cool

Category: Child Car Seat

Document Type: Manual

Language: EN

Available Languages: ES , EN

Uploaded: April 20, 2026, 7:32 p.m.

Warranty Information

Warranty covers manufacturing defects, excluding damage from misuse or normal wear and tear.

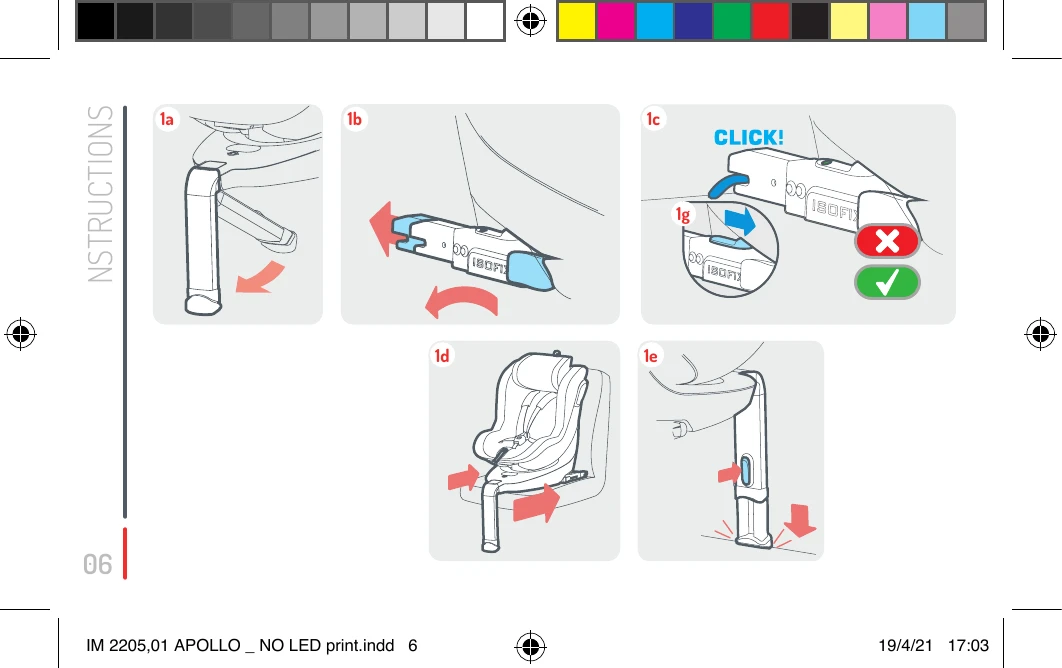

Installation: Follow steps 1a-1e for ISOFIX installation, ensuring the support leg is correctly positioned and indicators are green. For removal, reverse the process (1g).

Usage: APOLLO can be used rearward-facing (40-105 cm) or forward-facing (75-105 cm, minimum 15 months). Follow steps 2a-2d for orientation and adjustment. The reducer cushion (4) is for newborns up to 5.5 kg.

Securing Child: Use the 5-point harness (5). Adjust the headrest (2) so harness openings are 1 cm above shoulders (3c). Tighten harness with strap (6) (3d). Recline seat if needed (7) (3f).

Removing Child: Place seat in loading position (2b), loosen harness (3e), open buckle, and remove child (3a).

Troubleshooting and error codes

ISOFIX indicator red	Not fully engaged	Ensure click and green indicator. Verify by pulling seat.
Support leg unstable	Incorrect height	Adjust until floor contact & 90° angle.
Harness not tight	Strap loose	Tighten harness strap.
Headrest too high/low	Incorrect position	Align harness openings 1 cm above shoulders.
