Installation Guide for 208414, 208415
Uploaded: Nov. 21, 2025, 6:19 p.m.
Warranty Information
Honeywell warrants this product to be free from defects for two years from the date of purchase.

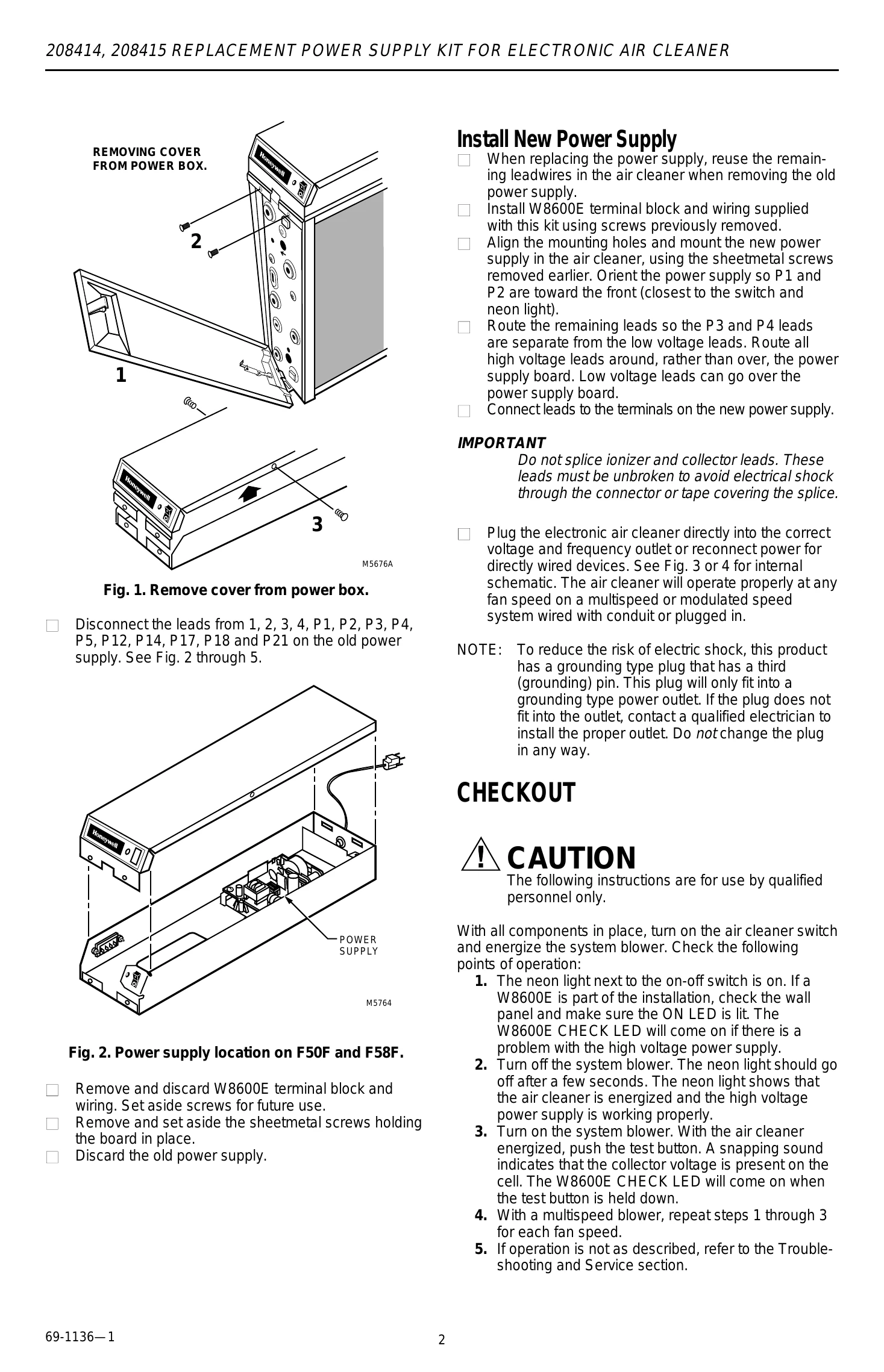

This guide provides instructions for installing replacement power supplies (208414, 208415) for Bel-Aire and Honeywell electronic air cleaners (F50F, F58F). It details the application of the kits, the replacement procedure for the old power supply, installation of the new power supply, and a checkout procedure. Safety warnings regarding electrical shock are emphasized throughout. The guide also includes troubleshooting steps and a modification procedure to reduce ozone odor.
Troubleshooting and error codes
| START | MAKE SURE ELECTRONIC CELL(S) ARE CLEAN, DRY AND PROPERLY INSTALLED. MAKE SURE PREFILTER(S) ARE IN CABINET SLOT FARTHEST FROM FURNACE. | TO USE THIS CHART: 1. FOLLOW THE STEPS IN ORDER; DO NOT SKIP AROUND. 2. EACH TIME YOU ISOLATE AND FIX A PROBLEM, GO BACK TO START. 3. REPEAT ALL THE STEPS UNTIL THE AIR CLEANER CHECKS OUT OK. |
| TURN ON ELECTRONIC AIR CLEANER AND SYSTEM FAN. | CHECK NEON LIGHT. | ON: PUSH TEST BUTTON AND LISTEN FOR SNAPPING SOUND. OFF: REPLACE LIGHT ASSEMBLY. |
| WIRING NOT OK | ON: CHECK WIRING BETWEEN W8600E AND AIR CLEANER. USE MAX NO. 18 4-WIRE THERMOSTAT CABLE CONNECTED 1(G) TO 1(G), 2(Υ) ΤΟ 2(Υ), 3(R) TO 3(R), AND 4(B) TO 4(Β). | WIRING OK: CHECK ON LED IN W8600E. |
| OFF: CHECK ON LED IN W8600E. | ON: DEPRESS AND HOLD DOWN TEST BUTTON. CHECK LED IN W8600E SHOULD COME ON. | OFF: TURN OFF AIR CLEANER AND REMOVE CELL(S) ONLY (NOT PREFILTERS). CLOSE ACCESS DOOR AND TURN ON AIR CLEANER. WASH LED IN W8600E SHOULD COME ON. |
| ON: TURN OFF AIR CLEANER AND REMOVE CELL(S) ONLY (NOT PREFILTERS). CLOSE ACCESS DOOR AND TURN ON AIR CLEANER. CHECK NEON LIGHT. | ON: INSPECT CELL(S) FOR: • BENT COLLECTOR PLATES • BROKEN IONIZER WIRES • DIRT ON INSULATORS • DAMAGED IONIZER OR COLLECTOR CONTACT TABS. | YES: REPAIR OR REPLACE CELL(S). NO: WITH OHMMETER, CHECK FOR SHORT BETWEEN: CELL FRAME AND IONIZER SECTION, CELL FRAME AND COLLECTOR SECTION. |
| CELL SHORTED | INFINITE RESISTANCE | REPLACE CELL. |
| ELECTRONIC AIR CLEANER AND W8600E ARE OK. | AIR CLEANER OK. TURN OFF AIR CLEANER AND RECONNECT W8600E LEADS 1(G) TO 1(G), 2(Υ) ΤΟ 2(Υ), 3(R) TO 3(R), AND 4(Β) ΤΟ 4(Β). |
