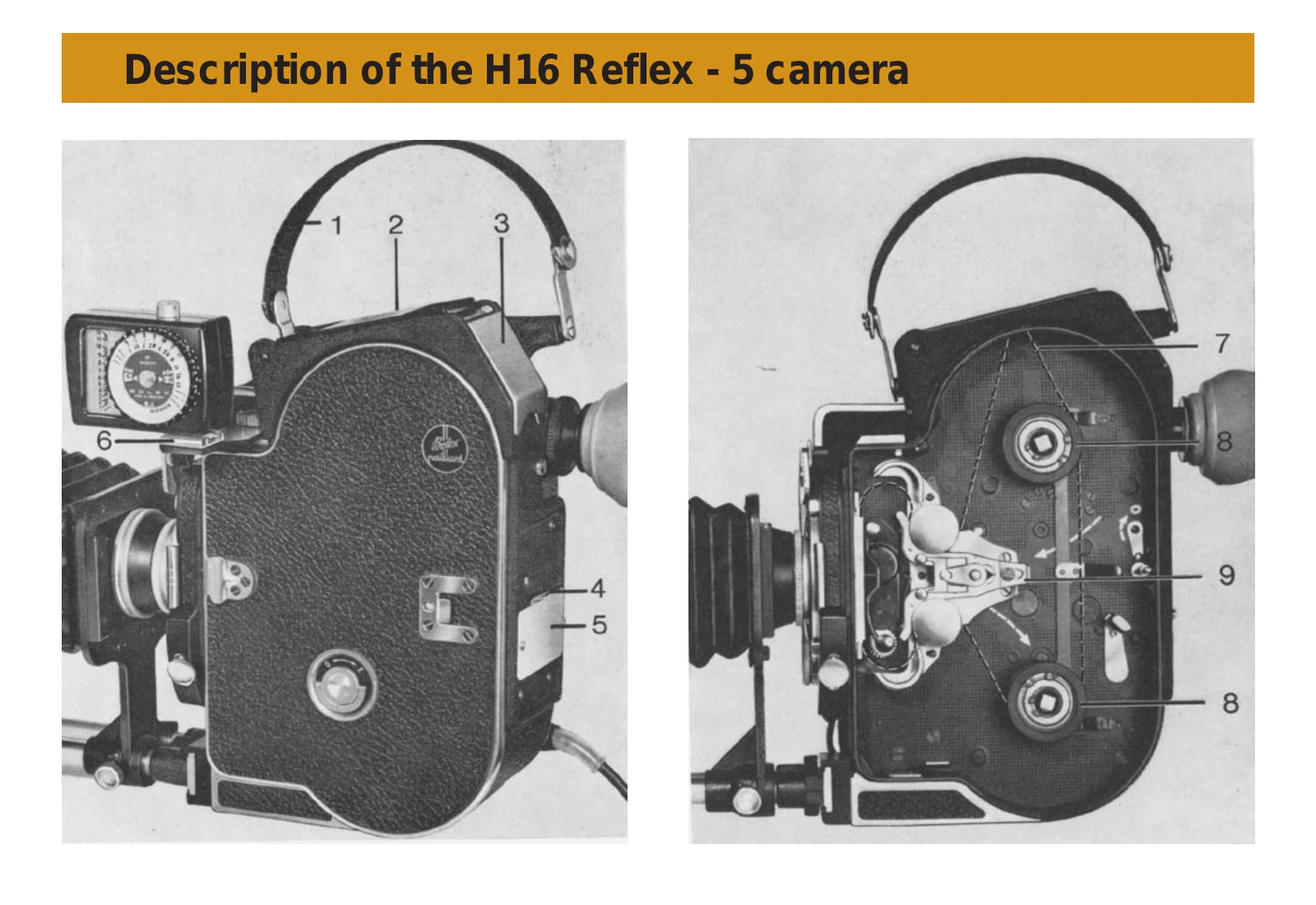

Manual for H16 Reflex

Loading the Camera with a 200 ft Spool:

1. Remove magazine and camera lids. Remove hubs from spindles by pressing push-buttons.
2. Fit footage-counter lever with chromium-plated flanges, raising it to its locked position. Place other guide roller in clip c.
3. Ensure spring-loaded lever 25 is disengaged.
4. Place unexposed film spool on spindle a, ensuring it's fully home and locked.
5. Lower footage-counter lever so guide roller presses against film.
6. Insert film end into magazine aperture, pull through camera, and cut with film cutter.
7. Close loop formers, proceed with automatic loading, allowing 2 ft of film to run through lower sprocket.
8. Insert film end into magazine aperture and draw into magazine.
9. On take-up spool, insert film end into slot, wind around core, and place on spindle.
10. Tension film by turning knurled knobs on feed spindle and motor.
11. Replace and lock magazine and camera lids.
12. Briefly depress MST motor front button to confirm correct loading.

Changing a Partially Exposed Magazine (film to remain):

1. Run motor for 3 seconds to transport exposed frame into magazine.
2. Remove camera lid.
3. Open sprocket guides.
4. Open pressure plate, remove film from gate and sprockets.
5. Hold film loop outside camera, press motor button to take up loop.
6. Remove MM take-up motor from magazine.
7. Fit new magazine and load camera by hand.
