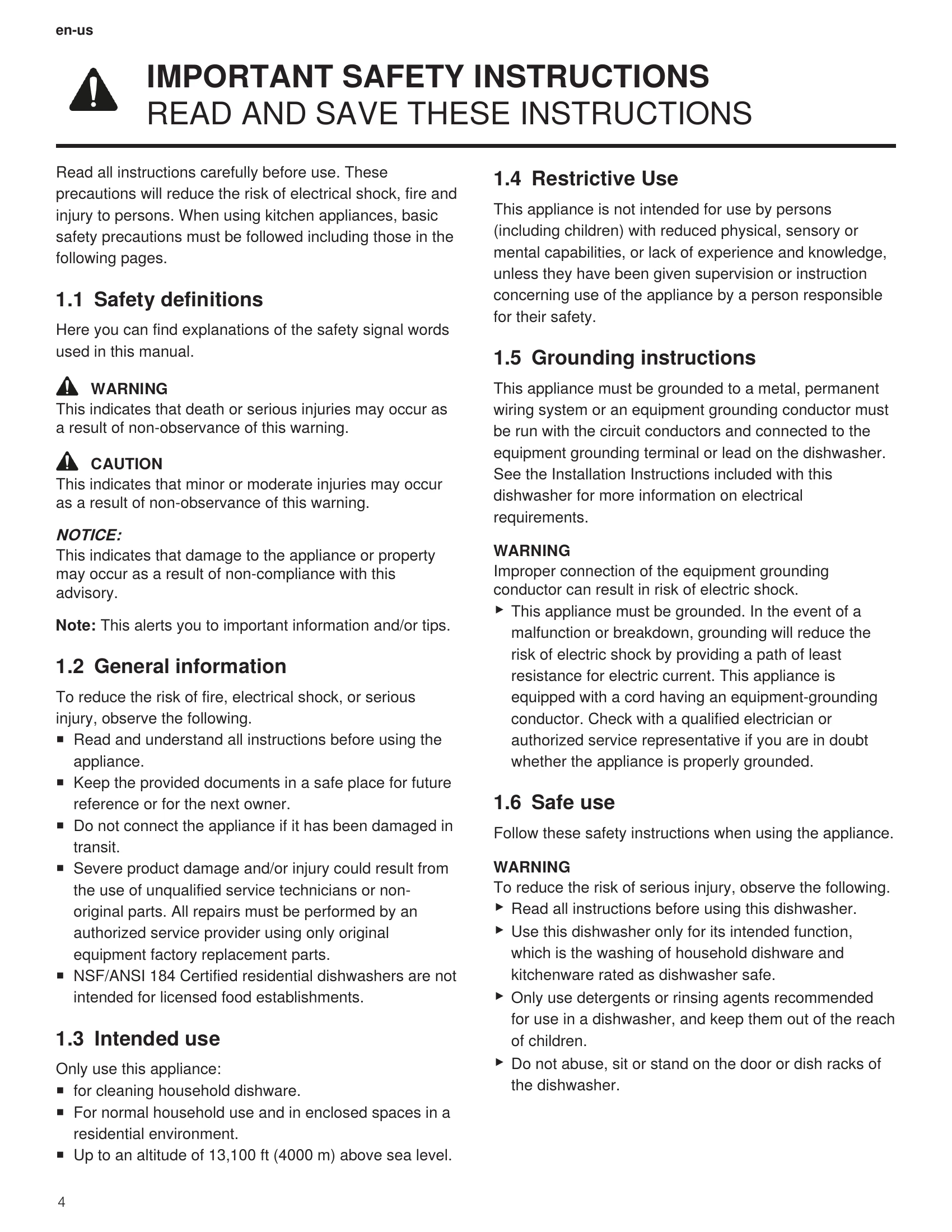

Manual for SHP65CM5N

Manual for SHP65CM5N

Brand: BOSCH

Category: Dishwasher

Document Type: Manual

Language: EN

Uploaded: April 20, 2026, 8:04 p.m.

Warranty Information

Bosch warrants the product against defects in materials and workmanship for 365 days from the original delivery date.

Switching on/off: Touch the ON/OFF button for 1 second. The appliance will automatically switch off after 10 minutes of inactivity.

Setting a cycle: Press the cycle button to select a suitable program based on the soiling level of the dishware. The cycle button will flash when set.

Setting options: Press the option button repeatedly until the desired option is set. An LED will flash when the option is active.

Starting the wash cycle: Press the Start button. A spot of light will be projected onto the floor, visible while the cycle runs.

Interrupting the wash cycle: Press ON/OFF to save the program and switch off. Press ON/OFF and then Start to resume.

Terminating the wash cycle: Press and hold Reset for 4 seconds to cancel the current cycle. Residual water will be pumped out.

Switching off the appliance: Press ON/OFF. Caution: Open the door slowly after a cycle due to hot water and steam.

Troubleshooting and error codes

Issue Cause and troubleshooting
Four vertical LED's (i.e. the cycle duration indicators and the clean indicator) all light up at the same time.
Filters in the water connection of the supply or AquaStop hose are blocked.
  1. Switch off the appliance.
  2. Pull out the power cord plug.
  3. Turn off the water faucet.
  4. Unscrew the water connection.
  5. Remove the filter from the supply hose.
  6. Clean the filter.
  7. Reinsert the filter in the supply hose.
  8. Screw the water connection back on.
  9. Check the water connection for leaks.
  10. Restore the power supply.
  11. Switch the appliance on.
Inlet hose is kinked. ► Install the inlet hose without kinks. Water faucet is turned off. ► Turn on the faucet.
Four vertical LED's (i.e. the cycle duration indicators and the clean indicator) are all flashing.
There is a technical issue.
  1. Press ON/OFF.
  2. Pull out the power cord plug of the appliance or switch off the breaker.
  3. Wait at least 2 minutes.
  4. Insert the power cord plug of the appliance in a power outlet or switch on the breaker.
  5. Switch the appliance on.
  6. If the problem occurs again: Press ON/OFF. Turn off the water faucet. Pull out the power cord plug. Contact customer service → Page 35 and give the error code.
Dishware is not dry.
No rinse aid used or dosage set too low.
  1. Add Rinse aid → Page 14.
  2. Set the amount of rinse aid to be dispensed. → "Setting the amount of rinse aid", Page 15
Cycle or cycle option has no drying phase, or drying phase is too short. ► Select a wash cycle with drying. → Page 10 Some option buttons decrease the drying result.
