Brand: BOSCH
Category: Dryer
Document Type: Manual
Language: EN

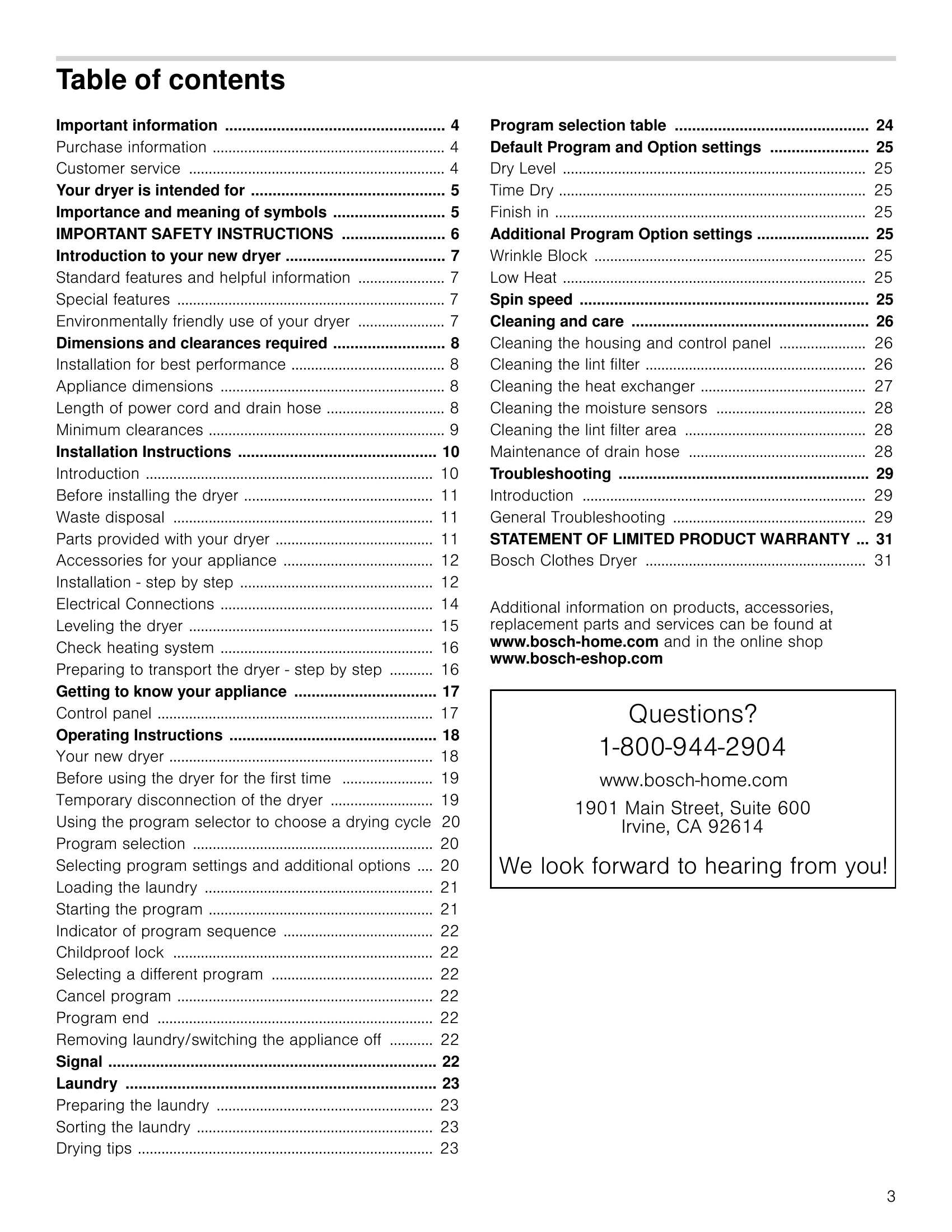

Manual for WTG86400UC
Uploaded: Nov. 21, 2025, 8:35 p.m.
Warranty Information
Bosch warrants the Product free from defects in materials and workmanship for 365 days from the date of purchase.
Starting Your Dryer:
- Ensure the laundry is sorted and loaded correctly.
- Select the appropriate drying program using the program selector dial.
- Touch the Start/Pause button to begin the cycle.
- The display will show the estimated remaining time.
- Adjust Dry Level, Time Dry, or Finish in settings as needed.
- Select optional features like Wrinkle Block or Low Heat.
- The Childproof lock can be activated to prevent accidental changes.
- Once the program is finished, remove laundry promptly.
- Turn the program selector to Off.
- Clean the lint filter after each use.
Using Features:
End of Cycle:
Troubleshooting and error codes
| Problem | Possible cause(s) | Solution(s) |
|---|---|---|
| Dryer does not start. | Power cord end not inserted at all or not inserted correctly. | Insert power cord end correctly. |
| A fuse is blown or breaker is tripped. | Replace fuse or reset breaker. | |
| Start/Pause indicator light does not illuminate. | Start/Pause button not touched. | Touch Start/Pause button. |
| Door not closed properly. | Check if laundry is caught in the door. Close the door until a click is heard. | |
| Program not selected. | Rotate the program selector to desired program. → Program selection table; Page 24 | |
| The display panel and indicator lights go out, Start/Pause indicator light flashes. | Energy-saving mode is activated. | Touch any button to activate the display. → Environmentally friendly use of your dryer; Page 7 |
| The display panel switches off. | Sleep mode after setting the Finish in option is activated. | Touch any button to activate the display. |
| indicator light up. | Lint filter dirty. | Clean lint filter. → Cleaning the lint filter; Page 26 Touch the Start/Pause button to reset the displayed indication and then touch Start/Pause button again to reset the appliance if necessary. |
| Heat exchanger dirty. | Clean heat exchanger. → Cleaning the heat exchanger; Page 27 Touch the Start/Pause button to reset the displayed indication and then touch Start/Pause button again to reset the appliance if necessary. | |
| DR indicator light up. Water has not drained completely. | Drain hose is blocked. | Check drain hose. → Maintenance of drain hose; Page 28 Check drain hose connection conditions. |
