Manual for Rotak 32
Uploaded: Nov. 21, 2025, 7:30 p.m.
Manual Publish Date: 2014-02-04

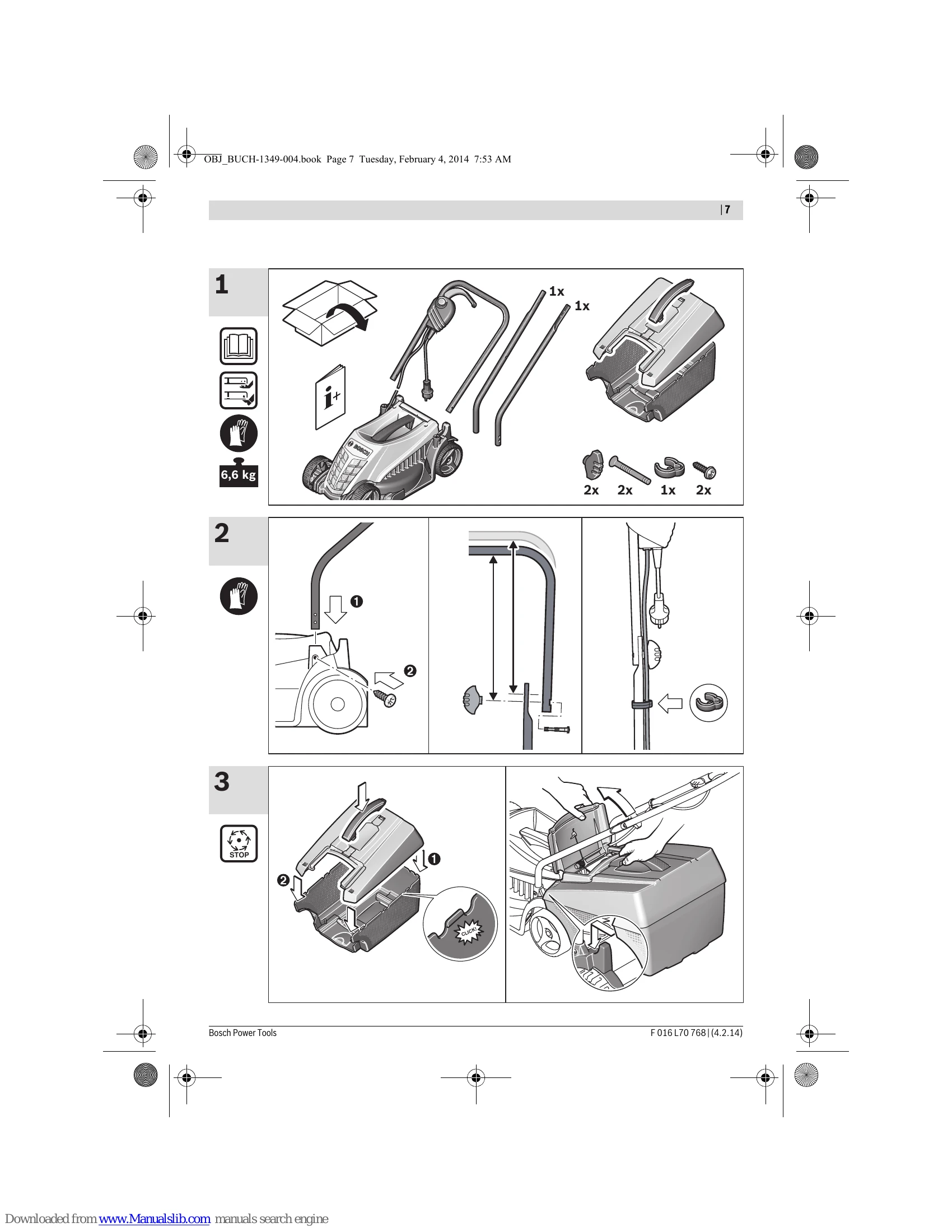

Assembly: Assemble the handle, grass box, and connect the extension lead.
Operation: Adjust cutting height, switch on the motor by pressing the safety lever and then the start button. Ensure the safety lever is engaged. Mow across slopes, not up/down. Never pull the mower towards you. Stop the blades by releasing the safety lever. Always stand clear of the discharge zone.
Maintenance: Regularly check for worn or damaged parts. Ensure cutting means are replaced with the correct type. Keep nuts, bolts, and screws tight.
Troubleshooting and error codes
| Problem | Possible Cause | Corrective Action |
|---|---|---|
| Motor refuses to start | Power turned off | Turn power on |
| Mains socket faulty | Use another socket | |
| Extension cable damaged | Inspect cable, replace if damaged | |
| Fuse faulty/blown | Replace fuse | |
| Possible clogging | Check underneath the garden product and clear out as necessary (always wear gardening gloves) | |
| Machine functions intermittently | Motor protector has activated | Allow motor to cool and increase height of cut |
| Mowing too low for the conditions | Increase height of cut | |
| Extension cable damaged | Inspect cable, replace if damaged | |
| Internal wiring of garden product damaged | Contact Service Agent | |
| Motor protector has activated | Allow motor to cool and increase height of cut | |
| Garden product leaves ragged finish and/or Motor labours | Height of cut too low | Increase height of cut |
| Cutting blade blunt | Replace the blade | |
| Possible clogging | Check underneath the garden product and clear out as necessary (always wear gardening gloves) | |
| Blade not rotating while garden product switched on | Blade fitted upside down | Refit blade correctly |
| Cutting blade obstructed | Switch off garden product. Clear obstruction (always wear gardening gloves) | |
| Excessive vibrations/noise | Blade nut/bolt loose | Tighten blade nut/bolt (17 Nm) |
| Blade nut/bolt loose | Tighten blade nut/bolt (17 Nm) | |
| Cutting blade damaged | Replace the blade |
