Brand: BOSCH
Category: Refrigerator
Document Type: Manual
Language: EN
Manual for GUD15A50GB
Uploaded: Nov. 21, 2025, 6:37 p.m.
Warranty Information
This manual does not contain specific warranty information.

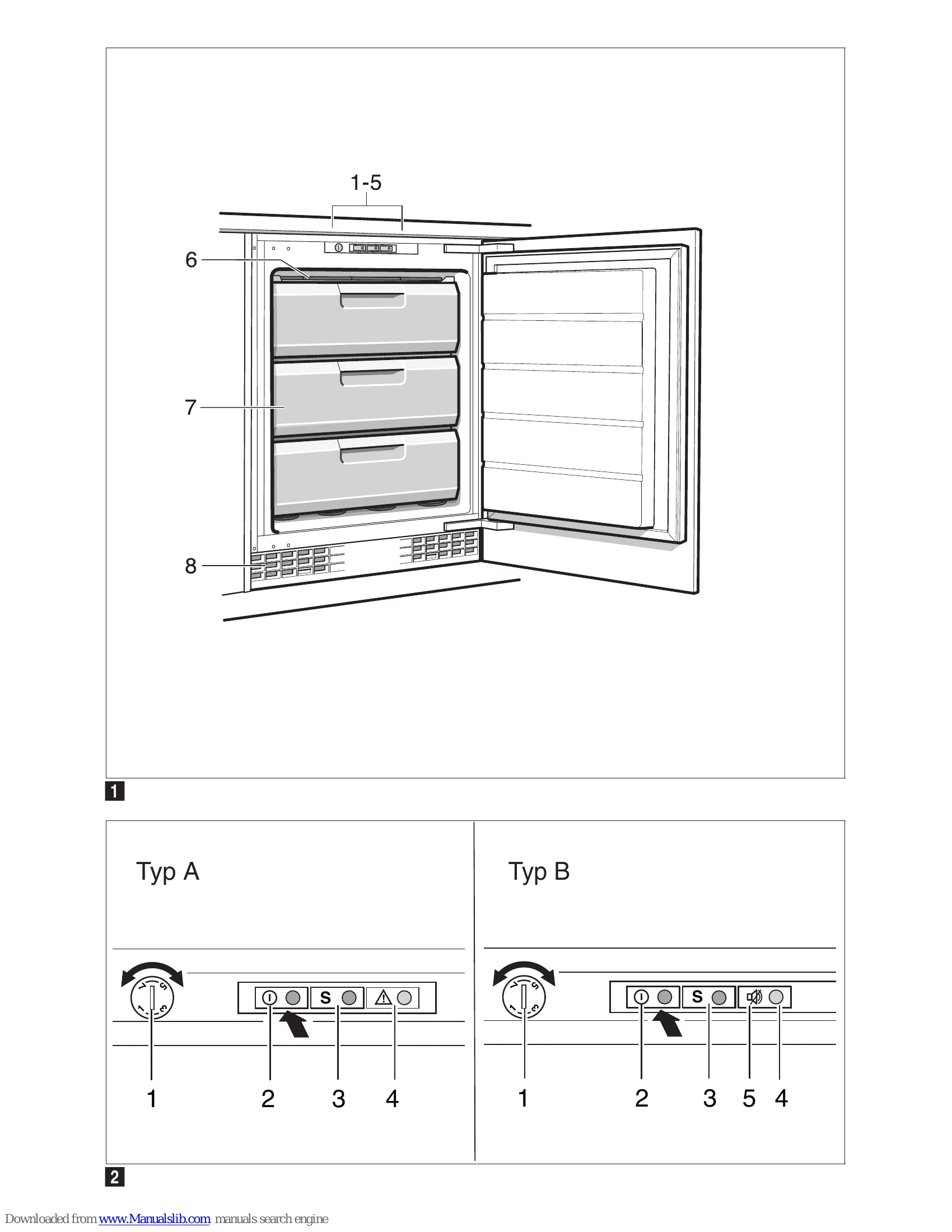

Getting to know your appliance
Familiarize yourself with the control panel (temperature selector, On/Off, Super button, alarm display/button) and the physical components like the freezer shelf, drawer, and ventilation grille.
Connecting the appliance
After installation, wait an hour before starting. Ensure the socket is accessible and the appliance is connected to a 220-240V/50Hz supply with a 10-16A fuse.
Switching on and selecting temperature
Press the On/Off button. Set the temperature using the selector, with higher numbers indicating lower temperatures. Recommended setting is 2-3.
Freezing and storing food
Use fresh, undamaged food. Wrap food correctly by pressing out air and labeling. Store in airtight containers. Max freezing capacity is on the rating plate. For storage, ensure good air circulation and place large quantities on shelves if drawers are removed.
Defrosting and cleaning
Regular defrosting is necessary when ice forms. Follow the instructions for defrosting and cleaning the freezer compartment, using mild detergent and avoiding abrasive cleaners.
Troubleshooting and error codes
| Fault | Possible Cause | Remedy |
|---|---|---|
| The freezer compartment is too cold: | • The temperature selector has been set too low. | • Turn the temperature selector to a higher number. |
| • Fast freeze was inadvertently left ON (yellow pilot light is ON). | • Switch OFF fast freeze. | |
| All the pilot lights are OFF: | • The appliance has not been switched ON. | • Switch ON the appliance. |
| • There has been a power failure. | • Check the power supply. | |
| • The fuse for the building electrical system has been switched OFF. | • Switch ON the fuse. | |
| • The mains plug has not been correctly inserted into the socket. | • Insert the mains plug correctly. | |
| The temperature warning lamp (red) is glowing. The freezer compartment is too warm: | • The door was opened frequently or large quantities of fresh food were frozen. | • Close the door briefly. Wait for fresh food to freeze. |
| • The temperature selector was set to a higher setting (lower temperature). | • Turn the temperature selector to a lower setting (higher temperature). | |
| • The ventilation slots were covered. | • Ensure ventilation slots are clear. |
