Getting to know your appliance
The fully automatic NO FROST system ensures that ice does form inside the freezer section, eliminating the need for defrosting. Food is frozen by a flow of cold air circulated by fans. The evaporator cools the air, and moisture condenses on it, then evaporates. The freezer section and frozen food remain ice-free.

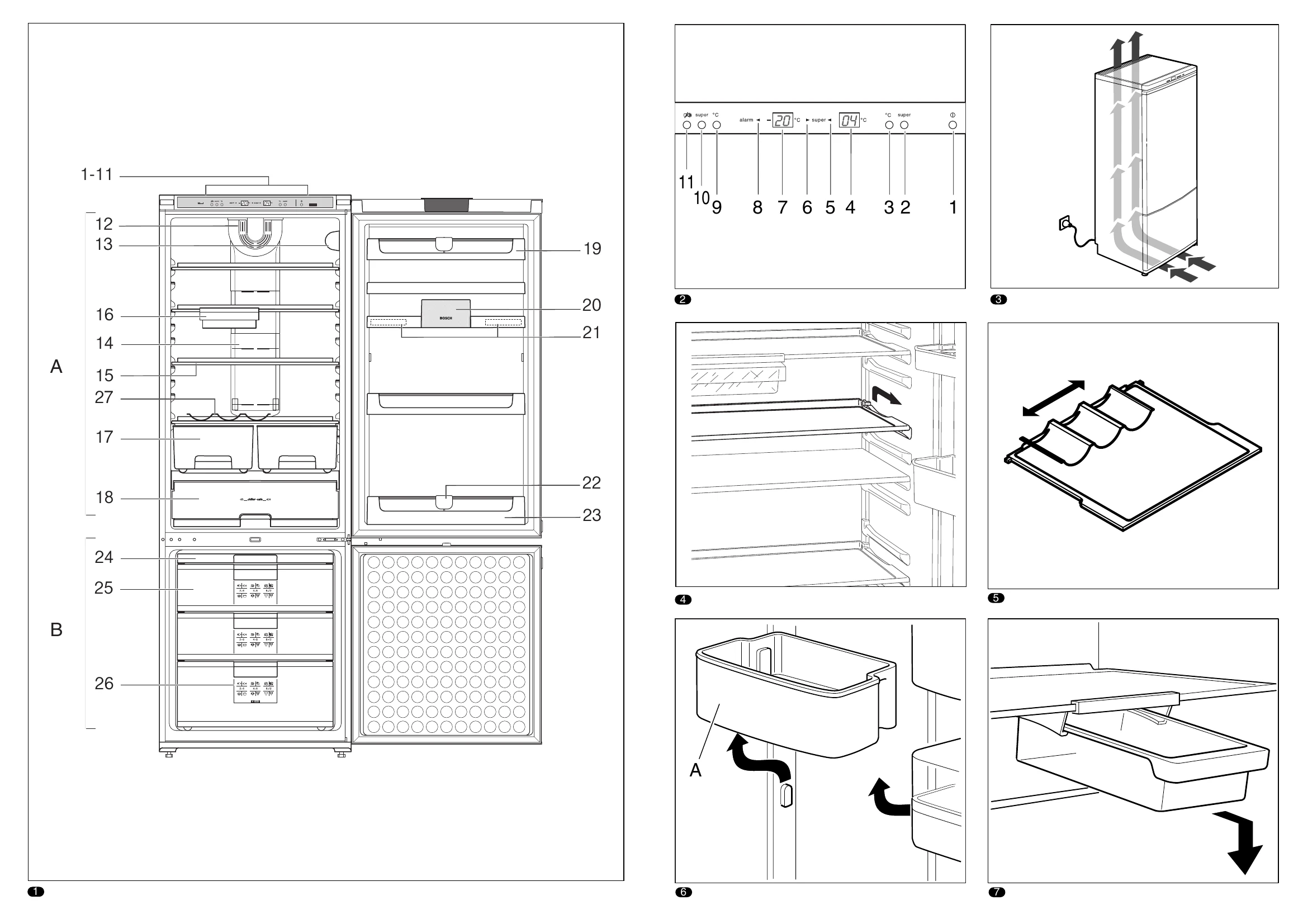

Description of control functions
Main Switch (1): Turns the appliance on/off.
Super Cooling (2, 5): For rapid cooling of beverages. Reduces refrigerator temperature for 6 hours.
Temperature Selection (3): Adjusts refrigerator temperature (+2 °C to +8 °C).
Temperature Display (4): Shows selected refrigerator temperature or "SU" for super cooling.
Super Freeze (10, 6): For freezing large quantities of fresh food. Switches on fast freeze several hours before adding food.
Alarm Button (11): Switches off the warning buzzer.
Alarm Display (8): Indicates when the freezer compartment is too warm.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Display does not illuminate (Fig. 2/4-7) | Appliance not switched on, plug not inserted correctly. | Check power is ON, plug is correctly inserted, and appliance is switched ON. |
| "E1" flashing (Fig. 2/4) during start-up | High temperature in refrigerator compartment. | Wait a few minutes; selected temperature should display. |
| "E2" flashing (Fig. 2/7) during start-up | High temperature in freezer compartment. | "AL" will display. Selected temperature displays once compartment reaches it. |
| Refrigerator light not functioning | Bulb defective or light switch sticking. | Replace bulb (max. 15 W, 230 V, E14). Check light switch; call service if stuck. |
| Display flashes, but no acoustic signal (Fig. 2/7) | Freezer compartment too warm due to power failure or fault. | Press "Alarm" button. Warmest temp displays for 5 secs. Then selected temp displays. |
| "AL" flashing (Fig. 2/7) and warning signal during prolonged run | Fault: freezer too warm! | Press "Alarm" Off button 11. Check for blocked vents, door not closed, no Fast freeze, too much fresh food, or high ambient temp. Rectify fault, then press "Alarm" Off. |
| Freezer door kept open long, temp not reached | Excessive ice on evaporator. | Switch off, open door for 12 hrs to thaw. Switch on again, refreeze goods. |
