System Overview

The DS7240-UK Control/Communicator is a versatile alarm system supporting up to 40 zones. It manages arming/disarming through keypads, keyswitches, and remote access. The system can be partitioned into four independent areas, each with its own account number. It offers various reporting formats for communication with central monitoring stations.

Key Features

  • Up to 40 zones (on-board and expanders).
  • Supports up to 8 keypads.
  • 4 independent areas.
  • Multiple reporting formats (Contact ID, SIA, etc.).
  • Expandable with input and output modules (DX2010, DX3010).
  • Installer keypad connector for programming.
  • Battery backup for continuous operation.

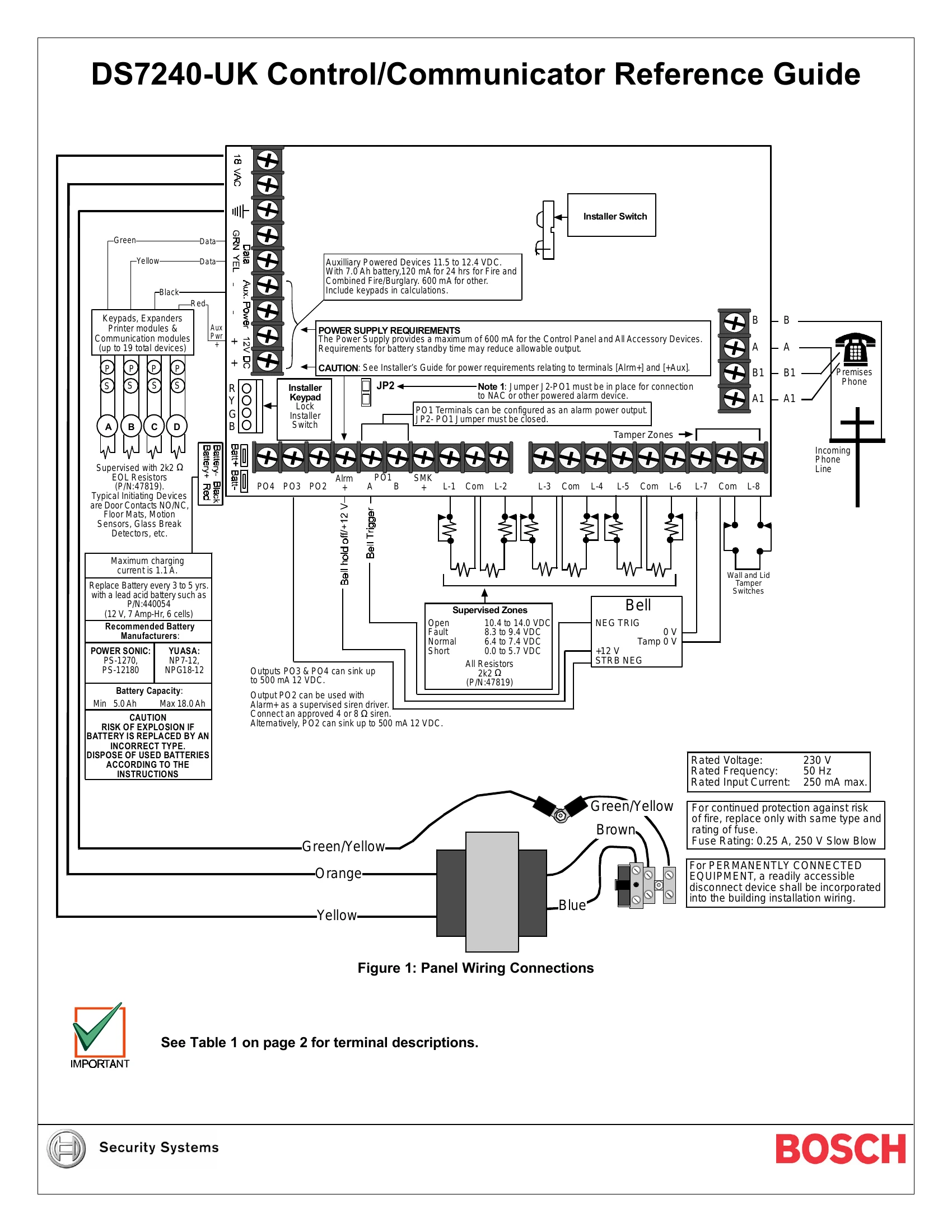

Installation & Setup

The manual covers panel installation, enclosure mounting, battery connection, and telephone line setup. It details keypad addressing, keyswitch wiring, and sensor loop configuration, including tamper-wired and EOL configurations. Power outputs and expander module connections (DX2010, DX3010) are also explained.

Troubleshooting and error codes

Event # in Panel LogSIA ReportSIA Report DataContact ID ReportEvent DescriptionZone Types Linked to EventDSRPS Event GroupStatus Reports
57 Frc,All,+Dly,RPS ri {area} CF {254} 400 O/C System forced All On with Entry/Exit Delay by DSRPS. 10
58 Frc,All,+Dly,Tel Forced Closing ri {area} CF {253} 400 O/C System forced All On with Entry/Exit Delay by Telephone. 10
59 Frc,All,+Dly,Usr Forced Closing ri {area} CF {user} 401 O/C by User System forced All On with Entry/Exit Delay by User. 10
60 Frc,All,-Dly,RPS Forced Closing ri {area} CF {254} 400 O/C System forced All On with no delay (instant) by DSRPS. 10
61 Frc,All,-Dly,Usr Forced Closing ri {area} CF {user} 401 O/C by User System forced All On with no delay (instant) by User. 10
62 Frc,Prt,+Dly,Tmr Forced Perimeter Arm ai {252} NF {area} 456 Partial Arm System forced Perimeter Only with Entry/Exit Delay by Sked (Timer). 10
63 Frc,Prt,+Dly,KS Forced Perimeter Arm ss {255} NF {area} 456 Partial Arm System forced Perimeter Only with Entry/Exit Delay by Keyswitch. 10
64 Frc,Prt,+Dly, RPS Forced Perimeter Arm ri {area} NF {254} 456 Partial Arm System forced Perimeter Only with Entry/Exit Delay by DSRPS. 10
65 Frc,Prt,+Dly, Usr Forced Perimeter Arm ri {area} NF {254} 456 Partial Arm System forced Perimeter Only with Entry/Exit Delay by User. 10
66 Frc,Prt,-Dly, RPS Forced Perimeter Arm ri {area} NF {254} 456 Partial Arm System forced Perimeter Only with no delay (instant) by DSRPS. 10
67 Frc,Prt,-Dly, Usr Forced Perimeter Arm ri {area} NF {254} 456 Partial Arm System forced Perimeter Only with no delay (instant) by User. 10
68 Reserved
69 Comm Fail Communications Fail rg {destination} YC 354 Failure to communicate event Report failed to reach routing destination. 12
70 CommFail, AltComm Communications Fail pi {SDI address} YC 354 Failure to communicate event Report failed to reach routing destination configured for Alternate Communication. 12
71 Comm Restoral Communications Restoral rg {destination} YK 354 Failure to communicate event After communication fail, report sent successfully to routing destination. 12
72 CommRstl, AltComm Communications Restoral pi {SDI address} YK 354 Failure to communicate event After communication fail, report sent successfully to routing destination configured for Alternate Communication. 12
73 Date/Time Change Time Changed JT {user} 625 Time/Date reset Date/Time in panel changed. 12
74 Duress Hold Up Alarm ri {area} HA {loop} 121 Duress User entered Duress PIN or pressed Panic key sequence on RF Keyfob. The Duress report is sent in addition to any other report that the user's action would generate. 1
75 Fire, Alarm Fire Alarm ri {area} FA {loop} 110 Fire Alarm event on fire zone type. 1- Fire
2- Fire with Alarm Verification		 2
