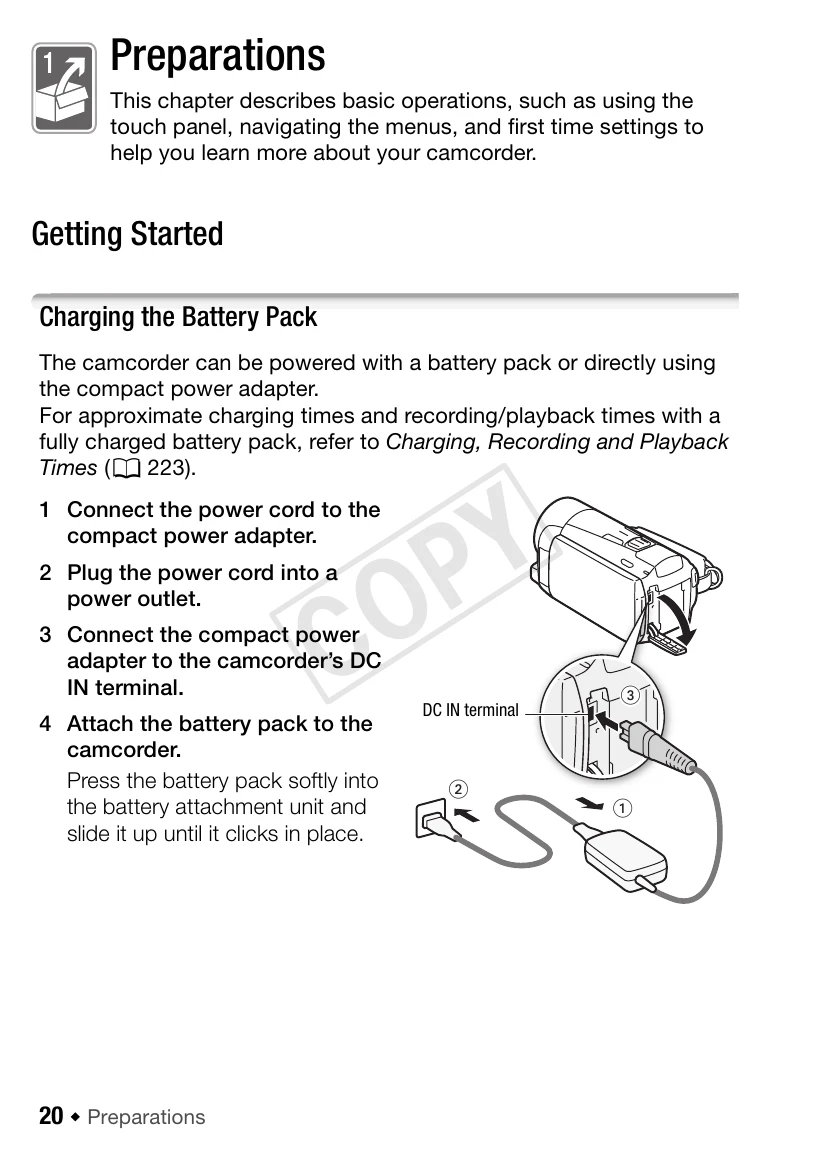

Getting Started
1. Connect the power cord to the compact power adapter.
2. Plug the power cord into a power outlet.
3. Connect the compact power adapter to the camcorder's DC IN terminal.
4. Attach the battery pack to the camcorder, pressing it into the battery attachment unit until it clicks.
Charging the Battery Pack
Charging starts when the camcorder is turned off. The ON/OFF (CHG) indicator turns red while charging and goes out when fully charged. If it flashes, refer to Troubleshooting.
Removing the Battery Pack
Slide the BATTERY RELEASE switch in the direction of the arrow, hold it pressed down, slide the battery pack, and pull it out.
1. Connect the power cord to the compact power adapter.
2. Plug the power cord into a power outlet.
3. Connect the compact power adapter to the camcorder's DC IN terminal.
4. Attach the battery pack to the camcorder, pressing it into the battery attachment unit until it clicks.
Charging the Battery Pack
Charging starts when the camcorder is turned off. The ON/OFF (CHG) indicator turns red while charging and goes out when fully charged. If it flashes, refer to Troubleshooting.
Removing the Battery Pack
Slide the BATTERY RELEASE switch in the direction of the arrow, hold it pressed down, slide the battery pack, and pull it out.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| The camcorder does not operate. | The battery is not charged or has been depleted. | Charge the battery pack or connect the compact power adapter. |
| The camcorder does not turn on. | The battery is not attached correctly. | Attach the battery pack correctly. |
| The camcorder turns off immediately after turning it on. | The battery is not charged or has been depleted. | Charge the battery pack or connect the compact power adapter. |
| The recording time is displayed incorrectly. | The battery was not fully discharged when it was first used. | Fully discharge and recharge the battery pack. |
