Brand: Canon
Category: Camera
Document Type: Manual
Language: EN
Manual for HF S20
Uploaded: Aug. 10, 2025, 12:27 a.m.
Manual Publish Date: 2010-03-01
Getting Started:

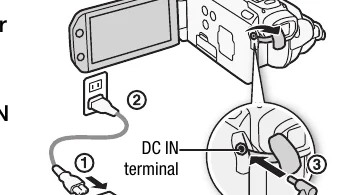

1. Connect the power cord to the compact power adapter.
2. Plug the power cord into a power outlet.
3. Connect the compact power adapter to the camcorder's DC IN terminal.
4. Attach the battery pack to the camcorder by sliding it up until it clicks.
Charging starts when the camcorder is turned off. The ON/OFF (CHG) indicator will show the charging status.
Using the Wireless Controller:
Point the controller at the camcorder's remote sensor. The LCD panel can be rotated 180 degrees for front operation.
Grip Belt and Straps:
Fasten and adjust the grip belt for comfortable thumb and finger access to the START/STOP button and zoom lever.
Troubleshooting and error codes
| Issue | Likely Cause | Solution |
|---|---|---|
| Camcorder does not turn on. | Battery pack is exhausted. | Charge the battery pack or connect the AC adapter. |
| Cannot record video or photos. | Memory card is full or not inserted properly. | Insert a new memory card or check the memory card insertion. |
| Image is blurred. | Camera shake. | Use the image stabilizer or a tripod. |
| Video quality is poor. | Low light conditions. | Use the built-in light or an external video light. |
| Audio is distorted. | Wind noise. | Use a windscreen or shoot in a less windy area. |
