Warranty Information
Provides a one-year limited warranty for parts and labor on products purchased in the US and Canada.
Highlights of the ME200S-SH
The Canon ME200S-SH Multi-Purpose Camera boasts numerous features that allow it to excel in a variety of situations. The following highlights some of the ways that this camera can meet your needs.
Video Quality and High Sensitivity
High-sensitivity Super 35mm CMOS sensor: Equipped with a high-sensitivity Super 35mm CMOS sensor and DIGIC DV 4 image processor for excellent low-noise performance in low-light conditions.
Flexibility and Power of Expression
Interchangeable lenses: Features an EF lens mount for compatibility with a wide range of Canon EF, EF-S, and EF Cinema lenses.

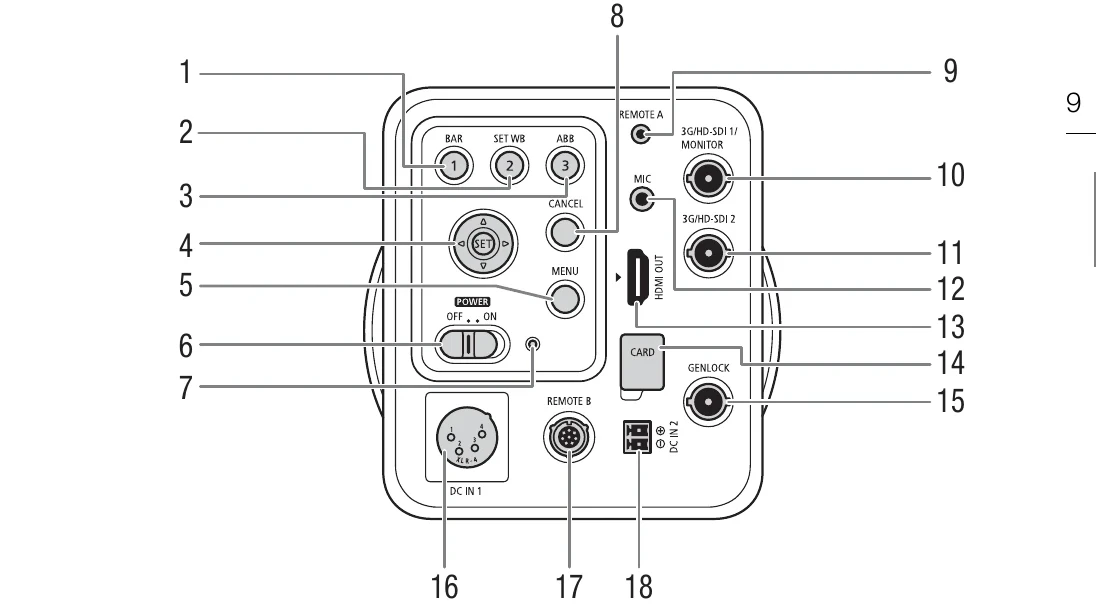

HD video output and versatile video configuration: Outputs HD video via 3G/HD-SDI and HDMI OUT terminals. Users can select system frequency, resolution, and frame rate.
Operability and Customization
Enhanced automatic functions: Includes automatic exposure, push auto iris, and automatic white balance for easier operation.
Remote operation: Supports the optional RC-V100 Remote Controller for remote adjustments.
Assignable buttons: Allows users to assign frequently used functions to buttons for quick access.
Custom picture settings and Canon Log gamma: Offers extensive image control through custom picture settings and supports Canon Log and Wide DR gamma settings.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| No video output on monitor (3G-SDI) | Monitor not compatible with 3G-SDI standard | Check monitor compatibility. |
| Incorrect [Frame Rate] or [3G-SDI Mapping] settings | Check and adjust settings via [Other Functions] > [Frame Rate] and [Audio/Video Setup] > [3G-SDI Mapping]. | |
| Onscreen displays not visible | Outputting 480P or 576P signal | Onscreen displays are not superimposed on 480P/576P signals. |
| Using 3G/HD-SDI 2 terminal | Use 3G/HD-SDI 1 / MONITOR or HDMI OUT terminal for onscreen displays. | |
| ABB error during black balance adjustment | Sensor not completely shielded from light | Press SET and repeat the procedure. |
