Parts/Service for ZOOM DS-8
Uploaded: Aug. 10, 2025, 12:29 a.m.

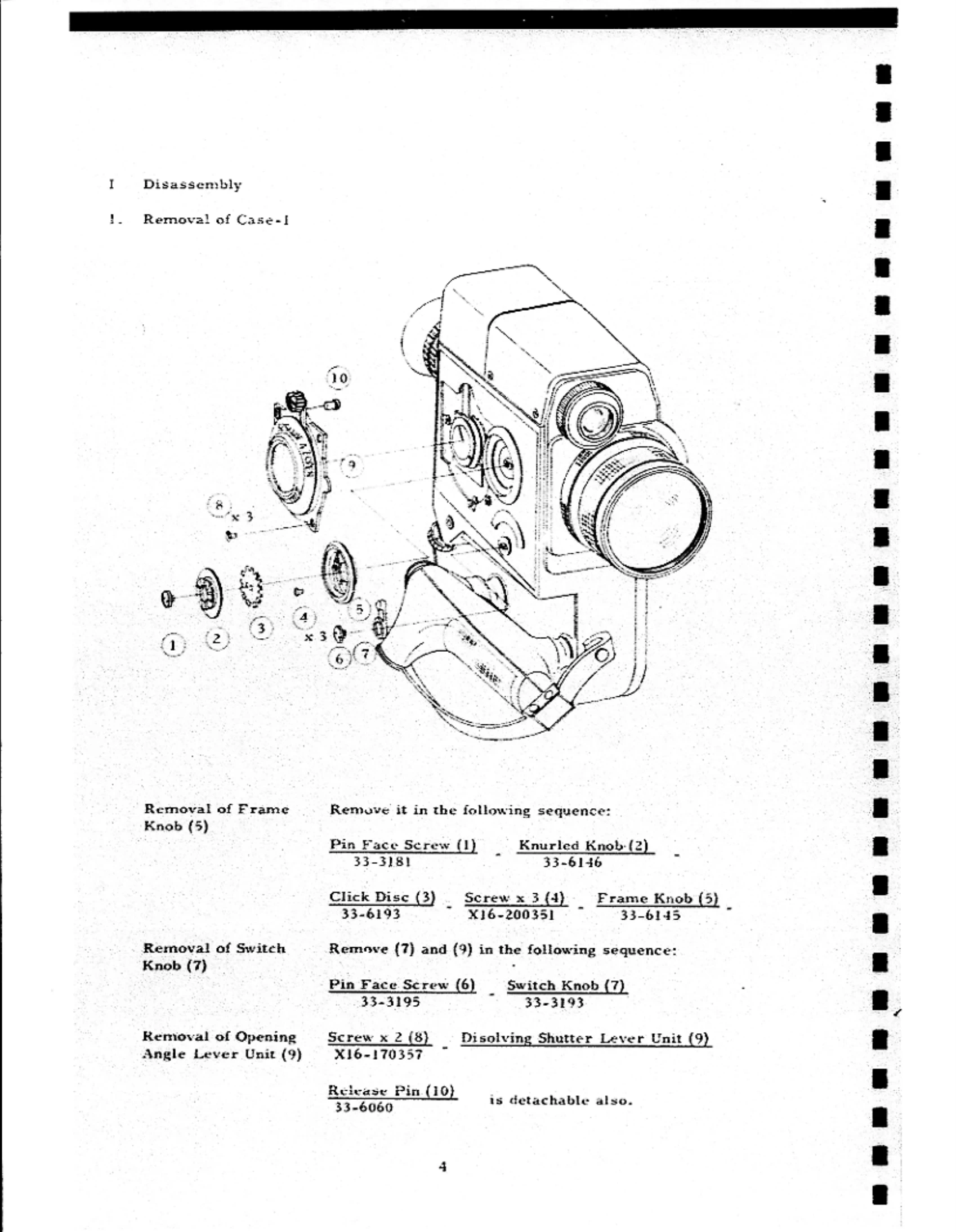

- Disassembly procedures are detailed, covering removal of various components like case sections, lens unit, ASA change unit, and film counter unit.
- Exchange and adjustment procedures focus on the shutter, filming motor and control circuit, auto loading system, lens system, and EE system.
- Specific checks include shutter blade position, feeding claw height, feeding claw position, and feeding claw pressure.
- Mounting procedures for film counter unit and dissolving shutter gear are outlined.
- EE system adjustments involve checking and adjusting the printed circuit board, EE motor, and CdS aperture unit.
- The manual also provides a list of Canon service tools required for these operations.
Troubleshooting and error codes
| Fault | Remedy |
|---|---|
| Parallax (horizontal) | Adjust it with Screw C. |
| Parallax (vertical) | Adjust it with Screw D. |
| Parallax (in right top and left down direction) | Adjust it with Screw E. |
| Parallax (in left top and right down direction) | Move Prism in the arrow-marked direction with Screw F loosened. |
| Parallax (in left top and right down direction) | Only when the adjustment with Screw F is impossible, adjust with F'. |
| Inclination of image | Adjust the Half Mirror by loosening Screw. |
