Manual for iR 5000/iR 6000
Uploaded: Nov. 21, 2025, 6:39 p.m.
Manual Publish Date: 2000-07-01
Warranty Information
This manual does not contain warranty information.

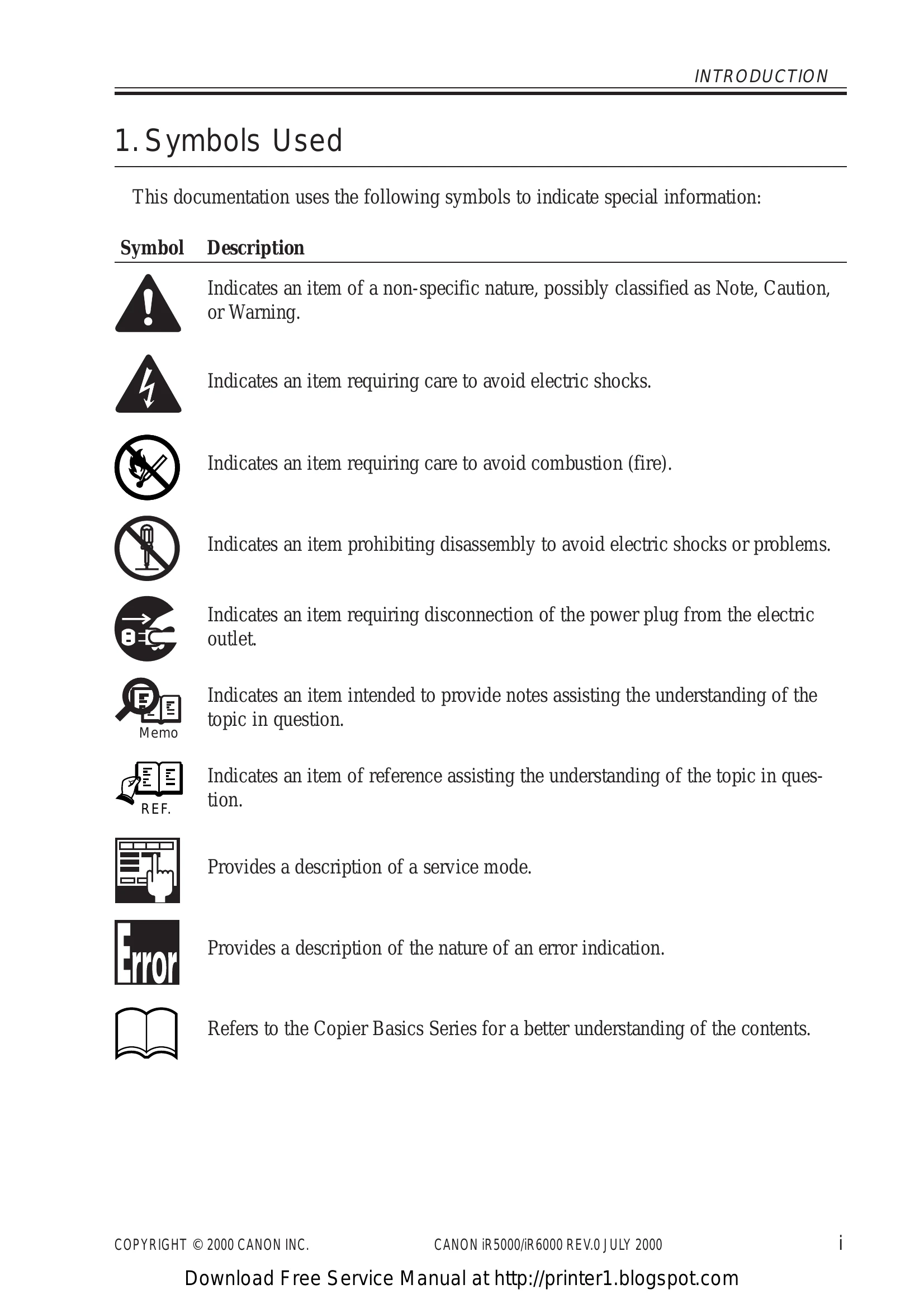

This manual provides basic information for servicing the iR5000/iR6000 and its accessories, covering technical theory, installation, maintenance, and repair to ensure product quality and performance. It is divided into System Unit, Main Controller, Reader Unit, and Printer Unit sections. Key areas include system features, specifications, operation, maintenance, troubleshooting, and system configuration. The document also details symbols used for special information, outlines of the manual's chapters, and important procedures for disassembly and operation.
Troubleshooting and error codes
| Error Indicator | Possible Cause | Remedy |
|---|---|---|
| None | Machine does not operate. | 1. Check if the power cord is plugged in. |
| 2. Check if the main power switch is ON. | ||
| 3. Check if the Execution/Memory lamp is ON. | ||
| 4. Check if the cassette heater switch is ON. | ||
| 5. Check if the environment switch is ON. | ||
| 6. Check if the front cover is closed. | ||
| 7. Check if the delivery unit door is closed. | ||
| 8. Check if the correct voltage is supplied. | ||
| Paper Feed Error | Paper is not fed. | 1. Check if paper is loaded correctly in the cassette/deck. |
| 2. Check if the paper size is set correctly. | ||
| 3. Check for paper jams. | ||
| 4. Check if the paper type is appropriate. |
