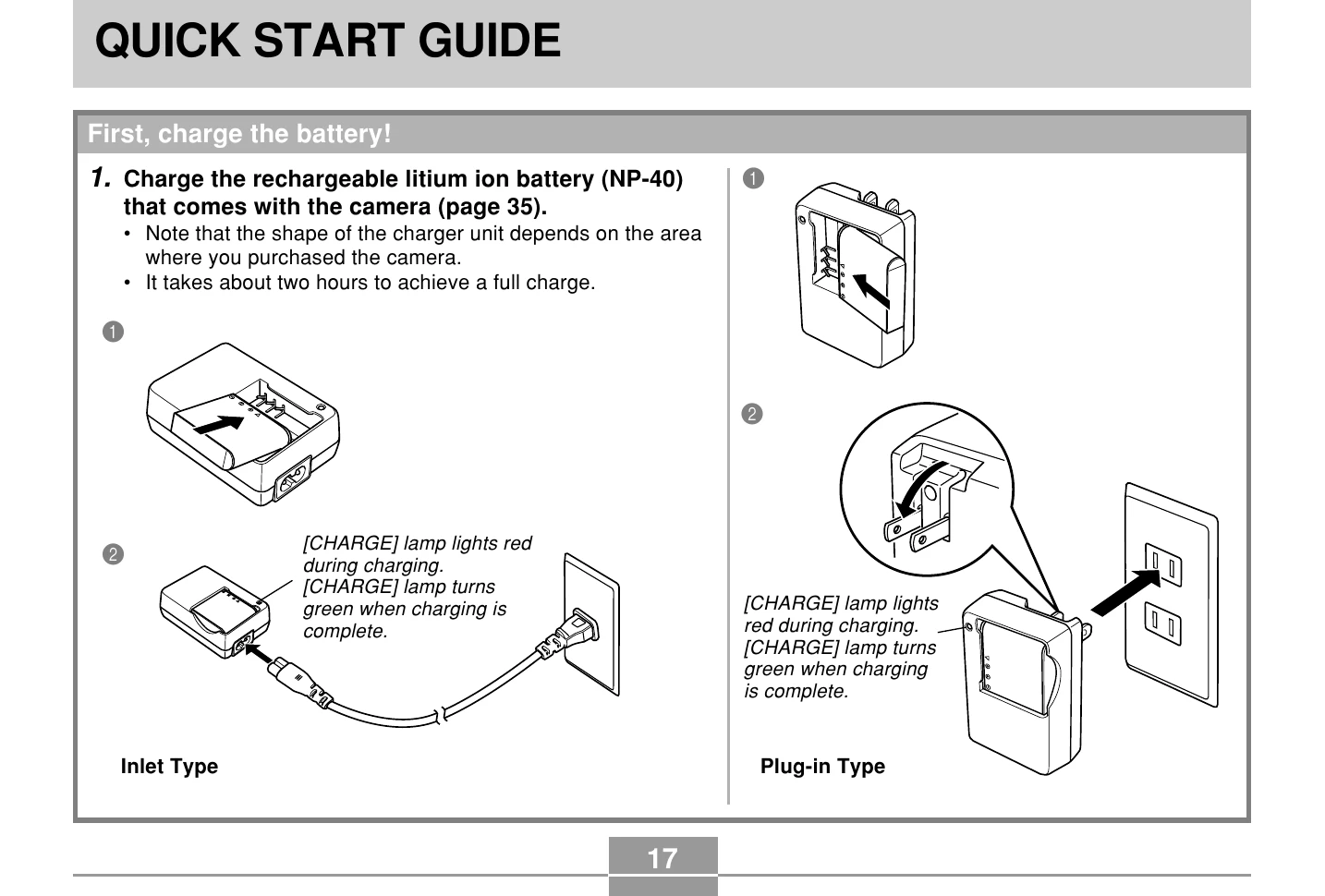

  • Charging the Battery: Connect the rechargeable lithium-ion battery (NP-40) to the rapid charger unit and plug it into a power outlet. The charging indicator lamp will turn red during charging and green when complete. Charging takes approximately two hours.
  • Loading the Battery: Open the battery compartment, insert the battery correctly, and secure it with the stopper.
  • Configuring Settings: Turn on the camera. Select language, geographical area, city, summer time, date format, date, and time using the control buttons.
  • Recording an Image: Turn on the camera, select Snapshot Mode, compose the image, and press the shutter button halfway. When the focus frame turns green, press the shutter button fully to capture the image.
  • Viewing Images: Turn on the camera, select PLAY Mode, and use the scroll buttons to navigate through recorded images.
  • Deleting Images: In PLAY Mode, press the EX button, select the image to delete, choose "Delete", and press SET.

Troubleshooting and error codes

Symptom Possible Cause Action
Power does not turn on. 1) The battery is not oriented correctly.
2) The battery is dead. 		1) Orient the battery correctly (page 38).
2) Charge the battery (page 35). If the battery goes dead soon after being charged, it means the battery has reached the end of its life and needs to be replaced. Purchase a separately available NP-40 rechargeable lithium ion battery.
Camera suddenly powers down. 1) Auto Power Off activated (page 47).
2) The battery is dead. 		1) Turn power back on.
2) Charge the battery (page 35).
Image is not recorded when the shutter button is pressed. 1) The camera is in the PLAY mode.
2) Flash unit is being charged.
3) Memory is full. 		1) Use the mode dial to select the REC mode (page 24).
2) Wait until the flash unit finishes charging.
3) Transfer files you want to keep to your computer and then delete files from image memory, or use a different memory card.
Auto Focus does not focus properly 1) The lens is dirty.
2) The phase differential sensor is dirty.
3) You are blocking the phase differential sensor with your finger.
4) The subject is not located in the center of the focus frame when you compose the image.
5) The subject you are shooting is a type that is not compatible with Auto Focus operation (page 58).
6) You are moving the camera.
7) An Auto Focus mode other than “Contrast” is selected while a conversion lens is installed on the camera (page 118). 		1) Clean the lens.
2) Clean the phase differential sensor.
3) Move your finger so it does not block the phase differential sensor.
4) Make sure the subject is centered in the focus frame when composing the image.
5) Use manual focus (page 77).
6) Mount the camera on a tripod.
7) Change the Auto Focus mode setting to "Contrast" (page 118).
The subject is out of focus in the recorded image. The image is not focused properly. When composing the image, make sure the subject on which you want to focus is located inside the focus frame.
The flash does not fire. 1) Ⓚ (flash off) is selected as the flash mode.
2) The battery is dead.
3) The camera is in the Movie mode.
4) A scene that selects Ⓚ (flash off) as the flash mode is selected in the BESTSHOT Mode. 		1) Select a different flash mode (page 64).
2) Charge the battery (page 35).
3) Select a different REC mode.
4) Select a different flash mode (page 64) or BESTSHOT scene (page 103).
Camera powers down during self-timer countdown. The battery is dead. Charge the battery (page 35).
Monitor screen image is out of focus. 1) You are using the Manual Focus Mode and have not focused the image.
2) You are trying to use the Macro Mode Ⓚ when shooting a scenery or portrait shot.
3) You are trying to use Auto Focus or the Infinity Mode (∞) when shooting a close-up shot. 		1) Focus the image (page 78).
2) Use Auto Focus for scenery and portrait shots.
3) Use the Macro Mode Ⓚ for close-ups.
Recorded images are not saved in memory. 1) Camera powers down before the save operation is complete.
2) Removing the memory card before the save operation is complete. 		1) When the battery indicator shows ▅, charge the battery as soon as possible (page 35).
2) Do not remove the memory card before the save operation is complete.
The images produced by an auto bracketing operation look the same. 1) The subject you are recording is a type for which the different settings do not produce much of a difference in appearance.
2) The image is drastically under-exposed or over-exposed. 		1) Shoot a different subject.
2) Adjust the exposure.
Color of the playback image is different from the image on the monitor screen during recording. Sunlight or light from another source is shining directly into the lens during recording. Position the camera so sunlight does not shine directly into the lens.
Images are not displayed. A memory card with non-DCF images recorded with another camera is loaded in the camera. This camera cannot display non-DCF images recorded onto a memory card using another digital camera.
All buttons and switches are disabled. Circuit problem caused by electrostatic charge, impact, etc. while the camera was connected to another device. Remove the battery from the camera, reinsert it, and then try again.
Monitor screen is off. 1) USB communication is in progress.
2) The monitor screen is turned off (in the REC mode).
3) The camera is connected to a TV for image output. 		1) After confirming that the computer is not accessing camera memory, disconnect the USB cable.
2) Press [DISP] to turn on the monitor screen.
3) Unplug the AV cable.
Cannot transfer files over a USB connection. 1) USB cable is not connected securely.
2) USB driver is not installed.
3) Camera is turned off. 		1) Check all connections.
2) Install the USB driver on your computer (page 198).
3) Turn on the camera.
