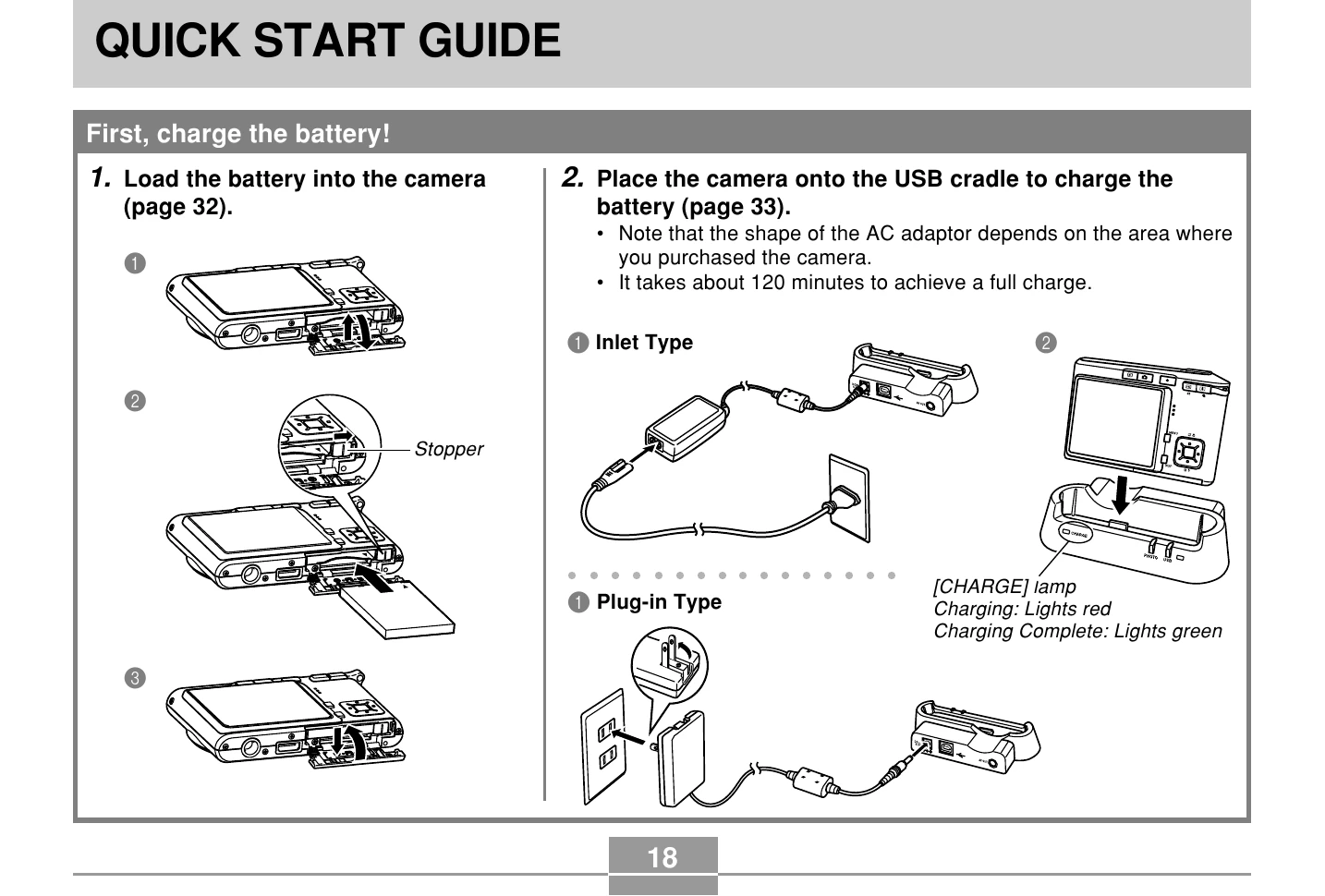

Charging the Battery

  1. Load the battery into the camera.
  2. Place the camera onto the USB cradle to charge the battery. Charging takes about 120 minutes.
    • Inlet Type: Connect the AC adapter to the cradle and plug it into a power outlet.
    • Plug-in Type: Connect the AC adapter to the cradle and plug it into a power outlet.

Configuring Display Language and Clock Settings

  1. Turn on the camera.
  2. Use the directional buttons ([▲], [▼], [◀], [▶]) to select the language and geographical area.
  3. Press [SET] to confirm each setting.
  4. Set the date and time.
  5. Press [SET] to save clock settings and exit.

Recording an Image

  1. Press [O] (REC) to enter recording mode.
  2. Point the camera at the subject and press the shutter button halfway to focus. The focus frame turns green when focus is achieved.
  3. Press the shutter button all the way down to capture the image.

Viewing a Recorded Image

  1. Press [O] (PLAY) to enter playback mode.
  2. Use [◀] and [▶] to scroll through the images.

Deleting an Image

  1. Press [O] (PLAY) to enter playback mode.
  2. Use [◀] and [▶] to scroll to the image you want to delete.
  3. Press [▼] to select "Delete".
  4. Press [SET] to confirm deletion.

Troubleshooting and error codes

Symptom Possible Cause Action
Power does not turn on. 1) The battery is not oriented correctly.
2) The battery is dead.		 1) Orient the battery correctly (page 32).
2) Charge the battery (page 33). If the battery goes dead soon after being charged, it means the battery has reached the end of its life and needs to be replaced. Purchase a separately available NP-20 rechargeable lithium ion battery.
Camera suddenly powers down. 1) Auto Power Off activated (page 44).
2) The battery is dead.		 1) Turn power back on.
2) Charge the battery (page 33).
Image is not recorded when the shutter button is pressed. 1) The camera is in the PLAY mode.
2) Flash unit is being charged.
3) Memory is full.		 1) Press [O] (REC) to enter the REC mode.
2) Wait until the flash unit finishes charging.
3) Transfer files you want to keep to your computer and then delete files from image memory, or use a different memory card.
Auto Focus does not focus properly. 1) The lens is dirty.
2) The subject is not located in the center of the focus frame when you compose the image.
3) The subject you are shooting is a type that is not compatible with Auto Focus operation (page 72).
4) You are moving the camera.		 1) Clean the lens.
2) Make sure the subject is centered in the focus frame when composing the image.
3) Use manual focus (page 77).
4) Mount the camera on a tripod.
The subject is out of focus in the recorded image. The image is not focused properly. When composing the image, make sure the subject on which you want to focus is located inside the focus frame.
The flash does not fire. 1) " " (flash off) is selected as the flash mode.
2) The battery is dead.
3) A scene that selects " " (flash off) as the flash mode is selected in the BEST SHOT mode.		 1) Select a different flash mode (page 61).
2) Charge the battery (page 33).
3) Select a different flash mode (page 61) or BEST SHOT scene (page 85).
Camera powers down during self-timer countdown. The battery is dead. Charge the battery (page 33).
Monitor screen image is out of focus. 1) You are using the Manual Focus mode and have not focused the image.
2) You are trying to use the Macro mode [ ] when shooting a scenery or portrait shot.
3) You are trying to use Auto Focus or the Infinity mode (∞) when shooting a close-up shot.		 1) Focus the image (page 77).
2) Use Auto Focus for scenery and portrait shots.
3) Use the Macro mode [ ] for close-ups.
Recorded images are not saved in memory. 1) Camera powers down before the save operation is complete.
2) Removing the memory card before the save operation is complete.		 1) When the battery indicator shows " charge the battery as soon as possible (page 33).
2) Do not remove the memory card before the save operation is complete.
Vertical lines on the monitor screen. Recording a very brightly lit subject can cause a vertical band to appear in the monitor screen image. This is a CCD phenomenon known as "vertical smear", and does not indicate malfunction of the camera. Note that vertical smear is not recorded with the image in the case of a snapshot, but it is recorded in the case of a movie.
Out of focus images. The subject is outside the shooting range of the camera. Record within the allowable shooting range.
Digital noise in images. Sensitivity is increased automatically for dark subjects. Greater sensitivity increases the chance of digital noise. Use a light or some other means to illuminate the subject.
Color of the playback image is different from the image on the monitor screen during recording. Sunlight or light from another source is shining directly into the lens during recording. Position the camera so sunlight does not shine directly into the lens.
Images are not displayed. A memory card with non-DCF images recorded with another camera is loaded in the camera. This camera cannot display non-DCF images recorded onto a memory card using another digital camera.
All buttons and switches are disabled. Circuit problem caused by electrostatic charge, impact, etc. while the camera was connected to another device. Remove the battery from the camera, reinsert it, and then try again.
Monitor screen is off. USB communication is in progress. After confirming that the computer is not accessing camera memory, disconnect the USB cable.
Cannot transfer files over a USB connection. 1) Camera is not set securely on the USB cradle.
2) USB cable is not connected securely.
3) USB driver is not installed.
4) Camera is turned off.		 1) Check the connection between the camera and USB cradle.
2) Check all connections.
3) Install the USB driver on your computer (page 180).
4) Press the [USB] button on the USB cradle.
