Manual for EX-S600

Manual for EX-S600

Brand: CASIO

Category: Digital Camera

Document Type:

Language: EN

Uploaded: Aug. 9, 2025, 11:39 p.m.

Warranty Information

Warranty information is not provided in the available pages.

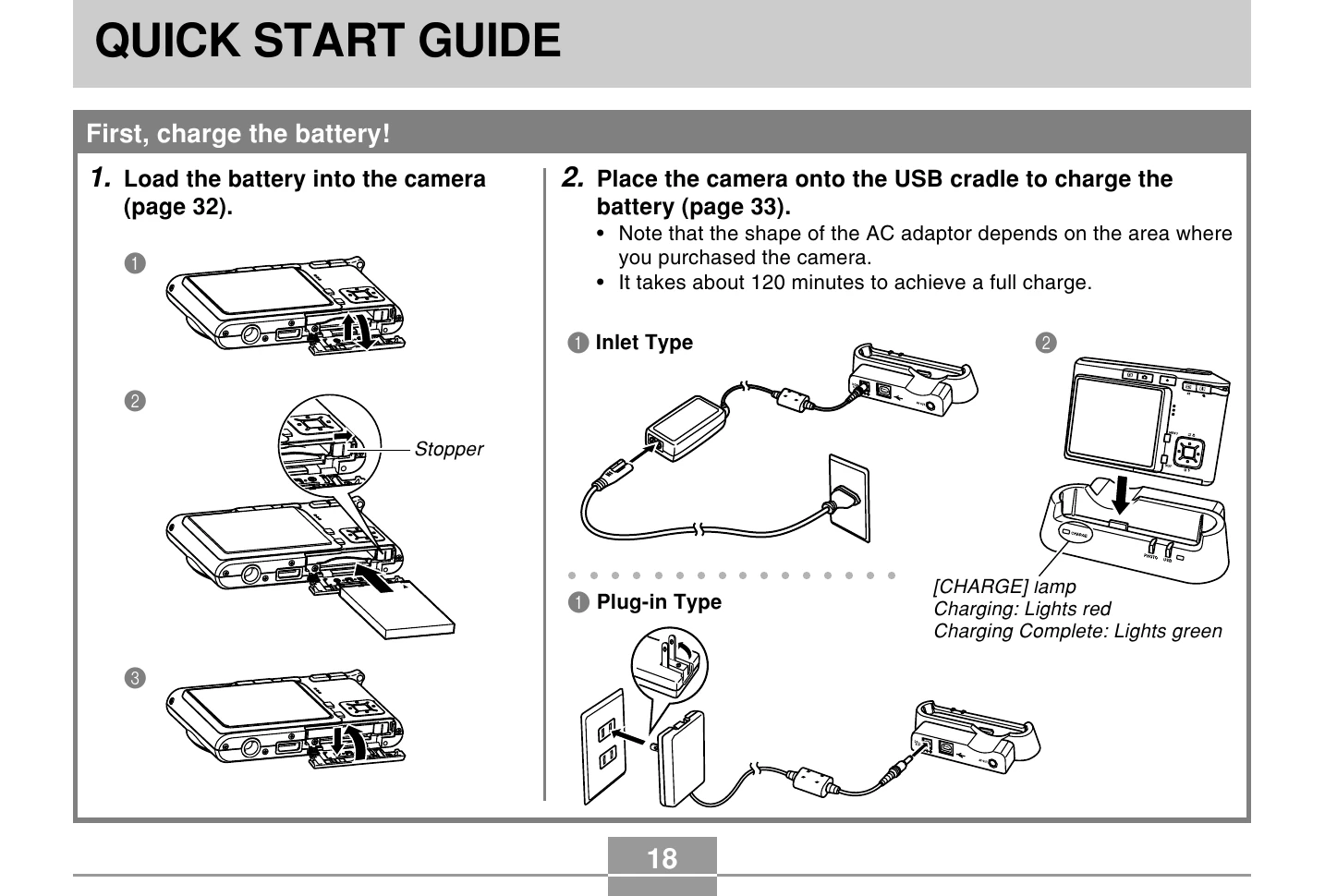

Charging the Battery

  1. Load the NP-20 rechargeable lithium-ion battery into the camera.
  2. Place the camera onto the USB cradle.
  3. Connect the AC adapter and power cord to the cradle and plug into a wall outlet.
  4. The charging lamp will turn red and then green when fully charged (approx. 120 minutes).

Configuring Settings

  1. Turn on the camera by pressing the power button.
  2. Use the directional buttons to select language, geographical area, city, and summer time (DST) settings.
  3. Press [SET] to confirm each setting.
  4. Set the date and time.
  5. Press [SET] to register clock settings.

Recording an Image

  1. Press [O] (REC) to enter recording mode.
  2. Point the camera at the subject and compose the image using the monitor screen. Press the shutter button halfway to focus.
  3. Once the focus frame turns green and the operation lamp lights green, gently press the shutter button all the way down to take the picture.

Viewing a Recorded Image

  1. Press [ ] (PLAY) to enter playback mode.
  2. Use [] and [] to scroll through recorded images.

Deleting an Image

  1. Press [ ] (PLAY) to enter playback mode.
  2. Press [▼] ( ).
  3. Use [] and [] to select the image to delete.
  4. Use [▲] and [▼] to select "Delete" and press [SET].

Troubleshooting and error codes

Symptom Possible Cause Action
Camera powers down during self-timer countdown. The battery is dead. Charge the battery (page 33).
Monitor screen image is out of focus. 1) You are using the Manual Focus mode (MF) and have not focused the image.
2) You are trying to use the Macro mode (⎙) when shooting a scenery or portrait shot.
3) You are trying to use the Auto Focus mode (AF) or the Infinity mode (∞) when shooting a close-up shot. 		1) Focus the image (page 77).
2) Use the Auto Focus mode (AF) for scenery and portrait shots.
3) Use the Macro mode (⎙) for close-ups.
Recorded images are not saved in memory. 1) Camera powers down before the save operation is complete.
2) Removing the memory card before the save operation is complete. 		1) When the battery indicator shows "⌂", charge the battery as soon as possible (page 33).
2) Do not remove the memory card before the save operation is complete.
Though available lighting is bright, the faces of human subjects appear dark. Not enough light is reaching the subjects. • Change the flash mode setting to "⌄" (flash on) for daylight synchro flash (page 61).
• Increase the EV shift value (page 79).
Subjects are too dark when recording images on a seashore or at a ski area. Sunlight reflected by water, sand, or snow, can cause underexposure of images. • Change the flash mode setting to "⌄" (flash on) for daylight synchro flash (page 61).
• Increase the EV shift value (page 79).
Vertical lines on the monitor screen. Recording a very brightly lit subject can cause a vertical band to appear in the monitor screen image. This is a CCD phenomenon known as "vertical smear", and does not indicate malfunction of the camera. Note that vertical smear is not recorded with the image in the case of a snapshot, but it is recorded in the case of a movie.
Out of focus images. The subject is outside the shooting range of the camera. Record within the allowable shooting range.
Digital noise in images. Sensitivity is increased automatically for dark subjects. Greater sensitivity increases the chance of digital noise. Use a light or some other means to illuminate the subject.
Color of the playback image is different from the image on the monitor screen during recording. Sunlight or light from another source is shining directly into the lens during recording. Position the camera so sunlight does not shine directly into the lens.
Images are not displayed. A memory card with non-DCF images recorded with another camera is loaded in the camera. This camera cannot display non-DCF images recorded onto a memory card using another digital camera.
All buttons and switches are disabled. Circuit problem caused by electrostatic charge, impact, etc. while the camera was connected to another device. Remove the battery from the camera, reinsert it, and then try again.
Monitor screen is off. USB communication is in progress. After confirming that the computer is not accessing camera memory, disconnect the USB cable.
Cannot transfer files over a USB connection. 1) Camera is not set securely on the USB cradle.
2) USB cable is not connected securely.
3) USB driver is not installed.
4) Camera is turned off. 		1) Check the connection between the camera and USB cradle.
2) Check all connections.
3) Install the USB driver on your computer (page 186).
4) Press the [USB] button on the USB cradle.
